Preface

1. Foreword

This book tries to give you a guide to start your own experiments into the wonderful world of Wireshark development.

Developers who are new to Wireshark often have a hard time getting their development environment up and running. This is especially true for Windows developers, as a lot of the tools and methods used when building Wireshark are much more common in the UNIX world than on Windows.

The first part of this book will describe how to set up the environment needed to develop Wireshark.

The second part of this book will describe how to change the Wireshark source code.

We hope that you find this book useful, and look forward to your comments.

2. Who should read this document?

The intended audience of this book is anyone going into the development of Wireshark.

This book is not intended to explain the usage of Wireshark in general. Please refer the Wireshark User’s Guide about Wireshark usage.

By reading this book, you will learn how to develop Wireshark. It will hopefully guide you around some common problems that frequently appear for new (and sometimes even advanced) developers of Wireshark.

3. Acknowledgements

The authors would like to thank the whole Wireshark team for their assistance. In particular, the authors would like to thank:

The authors would also like to thank the following people for their helpful feedback on this document:

• XXX - Please give feedback :-)

And of course a big thank you to the many, many contributors of the Wireshark development community!

This book was developed by Ulf Lamping, updated for VS2013 by Graham Bloice, and updated for later versions of Visual Studio by various contributors.

It is written in AsciiDoc.

5. Where to get the latest copy of this document?

The latest copy of this documentation can always be found at https://www.wireshark.org/docs/wsdg_html_chunked/.

7. Typographic Conventions

The following table shows the typographic conventions that are used in this guide.

Table 1. Typographic Conventions

Style Description Example

Italic

File names, folder names, and extensions

C:\Development\wireshark.

Monospace

Commands, flags, and environment variables

CMake’s -G option.

Bold Monospace

Commands that should be run by the user

Run cmake -G Ninja ...

Dialog and window buttons

Press to go to the Moon.

Key

Keyboard shortcut

Press Ctrl+Down to move to the next packet.

Select GoNext Packet to move to the next packet.

Important and notable items are marked as follows:

This is a warning You should pay attention to a warning, otherwise data loss might occur.
This is a caution Act carefully (i.e., exercise care).
This is important information RTFM - Read The Fine Manual
This is a tip Tips are helpful for your everyday work using Wireshark.
This is a note A note will point you to common mistakes and things that might not be obvious.

7.2. Shell Prompt and Source Code Examples

Bourne shell, normal user.

$# This is a comment$ git config --global log.abbrevcommit true

Bourne shell, root user.

# # This is a comment
# ninja install

Command Prompt (cmd.exe).

>rem This is a comment
>cd C:\Development

PowerShell.

PS$># This is a comment PS$> choco list -l

C Source Code.

#include "config.h"

/* This method dissects foos */
static int
dissect_foo_message(tvbuff_t *tvb, packet_info *pinfo _U_, proto_tree *tree _U_, void *data _U_)
{
/* TODO: implement your dissecting code */
return tvb_captured_length(tvb);
}

Part I. Wireshark Build Environment

1.1. Introduction

This chapter will provide a general overview of Wireshark development.

1.2. What Is Wireshark?

Well, if you want to start Wireshark development, you might already know what Wireshark is doing. If not, please have a look at the Wireshark User’s Guide, which will provide a lot of general information about it.

1.3. Supported Platforms

Wireshark currently runs on most UNIX-like platforms and various Windows platforms. It requires Qt, GLib, libpcap and some other libraries in order to run.

As Wireshark is developed in a platform independent way and uses libraries (such as the Qt GUI library) which are available for many different platforms, it’s thus available on a wide variety of platforms.

Binary packages are available for the following platforms along with many others:

1.3.1. Unix And Unix-like Platforms

• Apple macOS
• FreeBSD
• HP-UX
• IBM AIX
• NetBSD
• OpenBSD
• Oracle Solaris

1.3.1.1. Linux

• Arch Linux
• Debian GNU/Linux
• Ubuntu
• Fedora
• Gentoo Linux
• IBM S/390 Linux (Red Hat)
• Mandriva Linux
• PLD Linux
• Red Hat Linux
• Slackware Linux
• Suse Linux

1.3.2. Microsoft Windows

Wireshark supports Windows natively via the Windows API. Note that in this documentation and elsewhere we tend to use the terms “Win32”, “Win”, and “Windows” interchangeably to refer to the Windows API. “Win64” refers to the Windows API on 64-bit platforms. Wireshark runs on and can be compiled on the following Windows versions:

• Windows 11 / Windows Server 2022
• Windows 10 / Windows Server 2016 / Windows Server 2019
• Windows 8.1 / Windows Server 2012 R2
• Windows 8 / Windows Server 2012

Development on Windows 7, Server 2008 R2, Vista, Server 2008, and older versions may be possible but is not supported.

Some versions of Windows support case sensitive directories. We don’t officially support building or running Wireshark in this environment, but we will accept patches to fix any issues that might arise.

1.4. Development And Maintenance Of Wireshark

Wireshark was initially developed by Gerald Combs. Ongoing development and maintenance of Wireshark is handled by the Wireshark core developers, a loose group of individuals who fix bugs and provide new functionality.

There have also been a large number of people who have contributed protocol dissectors and other improvements to Wireshark, and it is expected that this will continue. You can find a list of the people who have contributed code to Wireshark by checking the About dialog box of Wireshark, or have a look at the https://www.wireshark.org/about.html#authors page on the Wireshark web site.

The communication between the developers is usually done through the developer mailing list, which can be joined by anyone interested in the development activities. At the time this document was written, more than 500 persons were subscribed to this mailing list!

It is strongly recommended to join the developer mailing list, if you are going to do any Wireshark development. See Section 1.7.6, “Mailing Lists” about the different Wireshark mailing lists available.

1.4.1. Programming Languages Used

Most of Wireshark is implemented in C. A notable exception is the code in ui/qt, which is written in C++.

The typical task for a new Wireshark developer is to extend an existing dissector, or write a new dissector for a specific network protocol. Most dissectors are written in C11, so a good knowledge of C will be sufficient for Wireshark development in almost any case. Dissectors can also be written in Lua, which might be more suitable for your specific needs. As noted above, if you’re going to modify Wireshark’s user interface you will need a knowledge of C++.

Modifying the build system and support tooling might requires knowledge of CMake, Python, PowerShell, Bash, or Perl. Note that these are required to build Wireshark, but not to run it. If Wireshark is installed from a binary package, none of these helper tools are needed on the target system.

1.4.2. Open Source Software

Wireshark is an open source software (OSS) project, and is released under the GNU General Public License (GPL). You can freely use Wireshark on any number of computers you like, without worrying about license keys or fees or such. In addition, all source code is freely available under the GPL. Because of that, it is very easy for people to add new protocols to Wireshark, either as plugins, or built into the source, and they often do!

You are welcome to modify Wireshark to suit your own needs, and it would be appreciated if you contribute your improvements back to the Wireshark community.

You gain three benefits by contributing your improvements back to the community:

• Other people who find your contributions useful will appreciate them, and you will know that you have helped people in the same way that the developers of Wireshark have helped you and other people.
• The developers of Wireshark might improve your changes even more, as there’s always room for improvement. Or they may implement some advanced things on top of your code, which can be useful for yourself too.
• The maintainers and developers of Wireshark will maintain your code as well, fixing it when API changes or other changes are made, and generally keeping it in tune with what is happening with Wireshark. So if Wireshark is updated (which is done often), you can get a new Wireshark version from the website and your changes will already be included without any effort for you.

1.5. Releases And Distributions

Official Wireshark releases can be found at https://www.wireshark.org/download.html. Minor releases typically happen every six weeks and typically include bug fixes and security updates. Major releases happen about once a year and include new features and new protocol support. Official releases include binary packages for Windows and macOS along with source code.

1.5.1. Binary Distributions

The Wireshark development team would like to make it as easy as possible for people to obtain and use Wireshark. This means that we need to support the software installation systems that different operating systems provide. We currently offer the following types of precompiled packages as part of each official release:

• Windows .exe installer. This is an executable file that installs Wireshark, and optionally Npcap and USBPcap, created using NSIS. It is the most popular installation method on Windows.
• Windows PortableApps .paf.exe file. This is a self-contained package that can be run from anywere, either standalone or under the PortableApps.com Platform.
• Windows .msi installer. This installs Wireshark using Microsoft’s Installer Database, created using the WiX toolset. It does not yet include Npcap or USBPcap and is somewhat experimental.
• macOS .dmg. This is a disk image which includes a drag-installable Wireshark application bundle along with utility packages for installing ChmodBPF and adding Wireshark to your PATH environment variable.

Most Linux and UNIX distributions have their own packaging systems which usually include Wireshark. The Wireshark sources include support for creating the following types of packages:

• Debian .deb files. Packaging assets can be found in the debian directory in the Wireshark sources.
• Red Hat .rpm files. Packaging assets can be found in the packaging/rpm directory in the Wireshark sources.

You can also create your own binary packages. See Section 3.11, “Binary Packaging” for details.

1.5.2. The Source Code Distribution

Wireshark is and will always be open source. You’re welcome to download a source tarball, build it, and modify it under the terms of the GPLv2. However, it’s usually much easier to use a binary package if you want to get up and running quickly in a production environment.

Source tarballs are commonly used for building the binary packages for UNIX and UNIX-like platforms. However, if you are going to modify the Wireshark sources, e.g. to contribute changes back or to develop an in-house version of Wireshark we recommend that you use the latest Git sources. For details about the different ways to get the Wireshark source code see Section 3.4, “Obtaining The Wireshark Sources”.

Before building Wireshark from a source distribution, make sure you have all the tools and libraries required to build. Later chapters describe the required tools and libraries in detail.

1.6. Automated Builds (GitLab CI)

The Wireshark development team uses GitLab’s continuous integration (CI) system to automatically build Wireshark for each Git merge request and commit. Automated builds provide several useful services:

• Cross-platform testing. Inbound merge requests and commits can be tested on each of our supported plaforms, which ensures that a developer on one platform doesn’t break the build on other platforms.
• A health indicator for the source code. The CI badges at https://gitlab.com/wireshark/wireshark can quickly tell you how healthy the latest code is. Green is good, red is bad.
• Fast code delivery. After a change is committed to the repository, an installer is usually available within an hour at https://www.wireshark.org/download/automated/. This can be quite helpful for resolving issues, e.g. a bug reporter can easily verify a bugfix by installing a recent build.
• Automated regression tests. We run a comprehensive test suite as part of each build and continuously run fuzz tests that try to crash the dissection engine.

1.6.1. What Do The Automated Builds Do?

GitLab’s CI operates by running a series of steps and reporting success or failure. A typical CI job might do the following:

1. Check out Wireshark from the source repository.
2. Build Wireshark.
3. Create a source tarball, binary package, or installer.
4. Run regression tests.

GitLab’s CI marks successful jobs with a green checkmark and failed jobs with a red “X”. Jobs provide a link to the corresponding console logfile which provides additional information.

Release packages are built on the following platforms:

• Windows Server 2019 x86-64 (Win64, little endian, Visual Studio 2019)
• Ubuntu 18.04 x86-64 (Linux, little endian, gcc, Clang)
• macOS 10.14 x86-64 (BSD, little endian, Clang)

Static code analysis and fuzz tests are run on the following platforms:

• Visual Studio Code Analysis (Win64, little endian, VS 2019)
• Clang Code Analysis, Coverity Scan, and fuzz tests (Linux, little endian, Clang)

Each platform is represented at the status page by a single column, the most recent entries are at the top.

1.7. Reporting problems and getting help

If you have problems, or need help with Wireshark, there are several places that may be of interest to you (well, beside this guide of course).

1.7.1. Website

You will find lots of useful information on the Wireshark homepage at https://www.wireshark.org/.

1.7.2. Wiki

The Wireshark Wiki at https://gitlab.com/wireshark/wireshark/wikis/ provides a wide range of information related to Wireshark and packet capturing in general. You will find a lot of information not part of this developer’s guide. For example, there is an explanation how to capture on a switched network, an ongoing effort to build a protocol reference and a lot more.

And best of all, if you would like to contribute your knowledge on a specific topic (maybe a network protocol you know well), you can edit the Wiki pages by simply using your webbrowser.

1.7.3. FAQ

Before sending any mail to the mailing lists below, be sure to read the FAQ, as it will often answer any questions you might have. This will save yourself and others a lot of time. Keep in mind that a lot of people are subscribed to the mailing lists.

You will find the FAQ inside Wireshark by clicking the menu item Help/Contents and selecting the FAQ page in the upcoming dialog.

An online version is available at the Wireshark website: https://www.wireshark.org/faq.html. You might prefer this online version as it’s typically more up to date and the HTML format is easier to use.

1.7.4. Other sources

If you don’t find the information you need inside this book, there are various other sources of information:

• The file doc/README.developer and all the other README.xxx files in the source code. These are various documentation files on different topics
Read the README README.developer is packed full with all kinds of details relevant to the developer of Wireshark source code. Its companion file README.dissector advises you around common pitfalls, shows you basic layout of dissector code, shows details of the APIs available to the dissector developer, etc.
• The Wireshark source code
• Tool documentation of the various tools used (e.g. manpages of sed, gcc, etc.)
• The different mailing lists. See Section 1.7.6, “Mailing Lists”

1.7.5. Q&A Site

The Wireshark Q&A site at https://ask.wireshark.org/ offers a resource where questions and answers come together. You have the option to search what questions were asked before and what answers were given by people who knew about the issue. Answers are graded, so you can pick out the best ones easily. If your issue isn’t discussed before you can post one yourself.

1.7.6. Mailing Lists

There are several mailing lists available on specific Wireshark topics:

wireshark-announce
This mailing list will inform you about new program releases, which usually appear about every 4-8 weeks.
wireshark-users
This list is for users of Wireshark. People post questions about building and using Wireshark, others (hopefully) provide answers.
wireshark-dev
This list is for Wireshark developers. People post questions about the development of Wireshark, others (hopefully) provide answers. If you want to start developing a protocol dissector, join this list.
wireshark-bugs
This list is for Wireshark developers. Every time a change to the bug database occurs, a mail to this mailing list is generated. If you want to be notified about all the changes to the bug database, join this list. Details about the bug database can be found in Section 1.7.7, “Bug Database (Gitlab Issues)”.
wireshark-commits
This list is for Wireshark developers. Every time a change to the Git repository is checked in, a mail to this mailing list is generated. If you want to be notified about all the changes to the Git repository, join this list. Details about the Git repository can be found in Section 3.2, “The Wireshark Git repository”.

You can subscribe to each of these lists from the Wireshark web site: https://www.wireshark.org/lists/. From there, you can choose which mailing list you want to subscribe to by clicking on the Subscribe/Unsubscribe/Options button under the title of the relevant list. The links to the archives are included on that page as well.

The archives are searchable You can search in the list archives to see if someone previously asked the same question and maybe already got an answer. That way you don’t have to wait until someone answers your question.

1.7.7. Bug Database (Gitlab Issues)

The Wireshark community collects bug reports in an issues database at https://gitlab.com/wireshark/wireshark/-/issues. This database is filled with manually filed bug reports, usually after some discussion on wireshark-dev, and automatic bug reports from continuous integration jobs.

1.7.8. Reporting Problems

If you report problems, provide as much information as possible. In general, just think about what you would need to find that problem, if someone else sends you such a problem report. Also keep in mind that people compile/run Wireshark on a lot of different platforms.

When reporting problems with Wireshark, it is helpful if you supply the following information:

1. The version number of Wireshark and the dependent libraries linked with it, e.g. Qt, GLib, etc. You can obtain this with the command wireshark -v.
2. Information about the platform you run Wireshark on.
3. A detailed description of your problem.
4. If you get an error/warning message, copy the text of that message (and also a few lines before and after it, if there are some), so others may find the build step where things go wrong. Please don’t give something like: "I get a warning when compiling x" as this won’t give any direction to look at.
Don’t send large files Do not send large files (>100KB) to the mailing lists, just place a note that further data is available on request. Large files will only annoy a lot of people on the list who are not interested in your specific problem. If required, you will be asked for further data by the persons who really can help you.
Don’t send confidential information If you send captured data to the mailing lists, or add it to your bug report, be sure it doesn’t contain any sensitive or confidential information, such as passwords. Visibility of such files can be limited to certain groups in the Gitlab Issues database by marking the issue confidential.

1.7.9. Reporting Crashes on UNIX-like platforms

When reporting crashes with Wireshark, it is helpful if you supply the traceback information (besides the information mentioned in Section 1.7.8, “Reporting Problems”).

You can obtain this traceback information with the following commands:

$gdb whereis wireshark | cut -f2 -d: | cut -d' ' -f2 core >& bt.txt backtrace ^D$
Using GDB Type the characters in the first line verbatim. Those are back-tics there. backtrace is a gdb command. You should enter it verbatim after the first line shown above, but it will not be echoed. The ^D (Control-D, that is, press the Control key and the D key together) will cause gdb to exit. This will leave you with a file called bt.txt in the current directory. Include the file with your bug report. If you do not have gdb available, you will have to check out your operating system’s debugger.

You should mail the traceback to wireshark-dev[AT]wireshark.org or attach it to your bug report.

1.7.10. Reporting Crashes on Windows platforms

You can download Windows debugging symbol files (.pdb) from the following locations:

Files are named "Wireshark-pdb-winbits-x.y.z.zip" to match their corresponding "Wireshark-winbits-x.y.z.exe" installer packages.

2.1. UNIX: Installation and Build Instructions

2.1.1. Build environment setup

The following must be installed in order to build Wireshark:

• a C compiler and a C++ compiler;
• the Flex lexical analyzer;
• Python 3;
• CMake;
• several required libraries.

Either make or Ninja can be used to build Wireshark; at least one of those must be installed.

To build the manual pages, Developer’s Guide and User’s Guide, Asciidoctor, Xsltproc, and DocBook must be installed.

Perl is required to generate some code and run some code analysis checks.

Some features of Wireshark require additional libraries to be installed. There are shell scripts in the tools directory to install the packages and libraries required to build Wireshark. Usage is available with the --help option. root permission is required to run the scripts. The available scripts and their options:

Alpine Linux (tools/alpine-setup.sh)

• --install-optional install optional software as well
• --install-all install everything
• [other] other options are passed as-is to apk

Arch Linux and pacman-based systems (tools/arch-setup.sh)

• --install-optional install optional software as well
• --install-test-deps install packages required to run all tests
• --install-all install everything
• [other] other options are passed as-is to pacman

BSD systems such as FreeBSD, NetBSD, OpenBSD, and DragonFly BSD (tools/bsd-setup.sh)

• --install-optional install optional software as well
• [other] other options are passed as-is to pkg manager

Debian, and Linux distributions based on Debian, such as Ubuntu (tools/debian-setup.sh)

• --install-optional install optional software as well
• --install-deb-deps install packages required to build the .deb file
• --install-test-deps install packages required to run all tests
• --install-qt5-deps force installation of packages required to use Qt5
• --install-qt6-deps force installation of packages required to use Qt6
• --install-all install everything
• [other] other options are passed as-is to apt

RPM-based Linux distributions such as Red Hat, Centos, Fedora, and openSUSE (tools/rpm-setup.sh)

• --install-optional install optional software as well
• --install-rpm-deps install packages required to build the .rpm file
• --install-qt5-deps force installation of packages required to use Qt5
• --install-qt6-deps force installation of packages required to use Qt6
• --install-all install everything
• [other] other options are passed as-is to the packet manager

For macOS, you must first install Xcode. After installing Xcode, the script tools/macos-setup.sh will install the rest of the tools and libraries required to build Wireshark, as well as the additional tools required to build the documentation and the libraries required for all Wireshark features. If you’re using Homebrew, the script tools/macos-setup-brew.sh will install the same tools and libraries from Homebrew.

If an install package is not available or you have a reason not to use it (maybe because it’s simply too old), you can install that tool from source code. The following sections will provide you with the webpage addresses where you can get these sources.

2.1.2. Building

The recommended (and fastest) way to build Wireshark is with CMake and Ninja. Building with make took nearly 2x time as Ninja in one experiment.

CMake builds are best done in a separate build directory, such as a build subdirectory of the top-level source directory. If that directory is a subdirectory of the top-level source directory, to generate the build files, change to the build directory and enter the following command:

cmake ..

to use make as the build tool or

cmake -G Ninja ..

to use Ninja as the build tool.

If you created the build directory in the same directory that contains the top-level Wireshark source directory, to generate the build files, change to the build directory and enter the following command:

cmake ../{source directory}

to use make as the build tool or

cmake -G Ninja ../{source directory}

to use Ninja as the build tool. {source directory} is the name of the top-level Wireshark source directory.

If you need to build with a non-standard configuration, you can run

cmake -LH ../{source directory}

to see what options you have.

You can then run Ninja or make to build Wireshark.

ninja
# or
make

Once you have build Wireshark with ninja or make above, you should be able to test it by entering run/wireshark.

2.1.3. Optional: Install

Install Wireshark in its final destination:

make install

Once you have installed Wireshark with make install above, you should be able to run it by entering wireshark.

2.1.4. Optional: Create User’s and Developer’s Guide

To build the Wireshark User’s Guide and the Wireshark Developer’s Guide, build the all_guides target, e.g. make all_guides or ninja all_guides. Detailed information to build these guides can be found in the file docbook/README.adoc in the Wireshark sources.

2.1.5. Optional: Create an installable or source code package

You can create packages using the following build targets and commands:

Source code tarball
Build the dist target.
deb (Debian) package
Create a symlink in the top-level source directory to packaging/debian, then run dpkg-buildpackage.
RPM package
Build the wireshark_rpm target.
AppImage package
Build the wireshark_appimage target.
macOS .dmg package containing an application bundle
Build the wireshark_dmg or logray_dmg targets.

Installable packages typically require building Wireshark first.

2.1.6. Troubleshooting during the build and install on Unix

A number of errors can occur during the build and installation process. Some hints on solving these are provided here.

If the cmake stage fails you will need to find out why. You can check the file CMakeOutput.log and CMakeError.log in the build directory to find out what failed. The last few lines of this file should help in determining the problem.

The standard problems are that you do not have a required development package on your system or that the development package isn’t new enough. Note that installing a library package isn’t enough. You need to install its development package as well.

If you cannot determine what the problems are, send an email to the wireshark-dev mailing list explaining your problem. Include the output from cmake and anything else you think is relevant such as a trace of the make stage.

2.2. Windows: Step-by-Step Guide

A quick setup guide for Windows development with recommended configurations.

Warning Unless you know exactly what you are doing, you should strictly follow the recommendations below. They are known to work and if the build breaks, please re-read this guide carefully. Known traps are: Not using the correct (x64 or x86) version of the Visual Studio command prompt. Not using a supported version of Windows. Please check here that your installed version is supported and updated.

2.2.1. Recommended: Install Chocolatey

Chocolatey is a native package manager for Windows. There are packages for most of the software listed below. Along with traditional Windows packages it supports the Python Package Index.

Chocolatey tends to install packages into its own path (%ChocolateyInstall%), although packages are free to use their own preferences. You can install Chocolatey packages using the command choco install (or its shorthand, cinst), e.g.

rem Flex is required.
choco install -y winflexbison3
rem Git, CMake, Python, etc are also required, but can be installed
rem via their respective installation packages.
choco install -y git cmake python3

2.2.2. Install Microsoft Visual Studio

Download and install “Microsoft Visual Studio 2019 Community Edition”. If you prefer you can instead download and install “Microsoft Visual Studio 2022 Community Edition”. These are small utilities that download all the other required parts (which are quite large).

Check the checkbox for “Desktop development with C++” and then uncheck all the optional components other than the “VC++ 2019” or “VC++ 2022” item with the “latest …​ tools”, the “Windows 10 SDK”, and the “Visual C++ tools for CMake” (unless you want to use them for purposes other than Wireshark).

You can alternatively use Chocolatey to install Visual Studio, using the Visual Studio Community and Native Desktop workload packages. Note that this includes Visual Studio’s CMake component.

choco install -y visualstudio2019community visualstudio2019-workload-nativedesktop
# OR
choco install -y visualstudio2022community visualstudio2022-workload-nativedesktop

You can use other Microsoft C compiler variants, but VS2019 is used to build the development releases and is the preferred option. It’s possible to compile Wireshark with a wide range of Microsoft C compiler variants. For details see Section 4.5, “Microsoft compiler toolchain (Windows native)”.

You may have to do this as Administrator.

Compiling with gcc or Clang is not recommended and will certainly not work (at least not without a lot of advanced tweaking). For further details on this topic, see Section 4.4, “GNU Compiler Toolchain (UNIX And UNIX-like Platforms)”. This may change in future as releases of Visual Studio add more cross-platform support.

Why is this recommended? While this is a huge download, the Community Editions of Visual Studio are free (as in beer) and include the Visual Studio integrated debugger. Visual Studio 2019 is also used to create official Wireshark builds, so it will likely have fewer development-related problems.

2.2.3. Install Qt

The main Wireshark application uses the Qt windowing toolkit. To install Qt, go to the “Download Qt” page, select “Go open source”, download the Qt Online Installer for Windows from the Qt Project, select “Custom installation“ on the “Installation Folder“ of the installer screen (do not select “Qt 6.4 for desktop development“) and, on the “Select Components“ screen of the installer, select, for the desired Qt version, a component that matches your target system and compiler. For example, at the time of this writing the Qt 6.2.4 “msvc2019 64-bit” component is used to build the official 64-bit packages. The “Qt Debug Information Files” component contains PDB files which can be used for debugging. You can deselect all of the other the components such as “Qt Charts” or “Android xxxx” as they aren’t required.

Qt 6 needs the "Qt 5 Compatibility Module" to be installed as well. Additionally, the module "Qt Multimedia" may be installed, to support advanced controls for playing back streams in the RTP Player dialog.

The CMake variable CMAKE_PREFIX_PATH (see https://doc.qt.io/qt-6/cmake-get-started.html) should be set as appropriate for your environment and should point to the Qt installation directory, e.g. C:\Qt\6.2.4\msvc2019_64 Alternatively you can also use the environment variable WIRESHARK_QT6_PREFIX_PATH.

Qt 6 is the default option for building Wireshark, but Wireshark has support for Qt 5.12 and later. To enable Wireshark to build with Qt 5 pass -DUSE_qt6=OFF to cmake.

2.2.4. Install Python

Get a Python 3 installer from https://python.org/download/ and install Python. Its installation location varies depending on the options selected in the installer and on the version of Python that you are installing. At the time of this writing the latest version of Python is 3.10, and common installation directories are C:\Users\username\AppData\Local\Programs\Python\Python310, C:\Program Files\Python310, and C:\Python310.

Alternatively you can install Python using Chocolatey:

choco install -y python3

Chocolatey will likely install Python in one of the locations above, or possibly in C:\Tools\Python3.

2.2.5. Install Git

Please note that the following is not required to build Wireshark but can be quite helpful when working with the sources.

Working with the Git source repositories is highly recommended, as described in Section 3.4, “Obtaining The Wireshark Sources”. It is much easier to update a personal source tree (local repository) with Git rather than downloading a zip file and merging new sources into a personal source tree by hand. It also makes first-time setup easy and enables the Wireshark build process to determine your current source code revision.

There are several ways in which Git can be installed. Most packages are available at the URLs below or via Chocolatey. Note that many of the GUI interfaces depend on the command line version.

If installing the Windows version of git select the Use Git from the Windows Command Prompt (in chocolatey the /GitOnlyOnPath option). Do not select the Use Git and optional Unix tools from the Windows Command Prompt option (in chocolatey the /GitAndUnixToolsOnPath option).

2.2.5.2. Git Extensions

Git Extensions is a native Windows graphical Git client for Windows. You can download the installer from https://github.com/gitextensions/gitextensions/releases/latest.

2.2.5.4. Command Line client via Chocolatey

The command line client can be installed (and updated) using Chocolatey:

choco install -y git

2.2.5.5. Others

A list of other GUI interfaces for Git can be found at https://git-scm.com/downloads/guis

2.2.6. Install CMake

While CMake is required to build Wireshark, it might have been installed as a component of either Visual Studio or Qt. If that’s the case you can skip this step. If you do want or need to install CMake, you can get it from https://cmake.org/download/. Installing CMake into the default location is recommended. Ensure the directory containing cmake.exe is added to your path.

Alternatively you can install it using Chocolatey:

choco install -y cmake

Chocolatey ensures cmake.exe is on your path.

2.2.7. Install Asciidoctor, Xsltproc, And DocBook

Asciidoctor can be run directly as a Ruby script or via a Java wrapper (AsciidoctorJ). The JavaScript flavor (Asciidoctor.js) isn’t yet supported. It is used in conjunction with Xsltproc and DocBook to generate the documentation you’re reading and the User’s Guide.

You can install AsciidoctorJ, Xsltproc, and DocBook using Chocolatey. AsciidoctorJ requires a Java runtime and there are many to choose from. Chocolatey doesn’t support alternative package dependencies at the present time, including dependencies on Java. As a result, installing the asciidoctorj package won’t automatically install a Java runtime — you must install one separately.

choco install -y <your favorite Java runtime>
choco install -y asciidoctorj xsltproc docbook-bundle

Chocolatey ensures that asciidoctorj.exe and xsltproc.exe is on your path and that xsltproc uses the DocBook catalog.

2.2.8. Install winflexbison

Get the winFlexBison installer from https://sourceforge.net/projects/winflexbison/ and install into the default location. Ensure the directory containing win_flex.exe is on your path.

Alternatively you can install Winflexbison using Chocolatey:

choco install -y winflexbison3

Chocolatey ensures win_flex.exe is on your path.

2.2.9. Optional: Install Perl

If needed you can get a Perl installer from http://strawberryperl.com/ or https://www.activestate.com/ and install Perl into the default location.

Alternatively you can install Perl using Chocolatey:

choco install -y strawberryperl
# ...or...
choco install -y activeperl

2.2.10. Install and Prepare Sources

Make sure everything works It’s a good idea to make sure Wireshark compiles and runs at least once before you start hacking the Wireshark sources for your own project. This example uses Git Extensions but any other Git client should work as well.

Using the command line:

cd C:\Development
git clone https://gitlab.com/wireshark/wireshark.git

Using Git extensions:

1. Open the Git Extensions application. By default Git Extensions will show a validation checklist at startup. If anything needs to be fixed do so now. You can bring up the checklist at any time via ToolsSettings.
2. In the main screen select Clone repository. Fill in the following:

Repository to clone: https://gitlab.com/wireshark/wireshark.git

Destination: Your top-level development directory, e.g. C:\Development.

Subdirectory to create: Anything you’d like. Usually wireshark.

3. Click the button. Git Extensions should start cloning the Wireshark repository.

2.2.11. Open a Visual Studio Command Prompt

From the Start Menu (or Start Screen), navigate to the “Visual Studio 2019” folder and choose the Command Prompt appropriate for the build you wish to make, e.g. “x64 Native Tools Command Prompt for VS 2019” for a 64-bit version or “x86 Native Tools Command Prompt for VS 2019” for a 32-bit version. Depending on your version of Windows the Command Prompt list might be directly under “Visual Studio 2019” or you might have to dig for it under multiple folders, e.g. Visual Studio 2019Visual Studio ToolsWindows Desktop Command Prompts.

You can set up a build environment in your own command prompt by running the appropriate vcvarsARCHITECTURE.bat command. See Use the Microsoft C++ toolset from the command line for details.

Pin the items to the Task Bar Pin the Command Prompt you use to the Task Bar for easy access.

All subsequent operations take place in this Command Prompt window.

1. Set environment variables to control the build.

Set the following environment variables, using paths and values suitable for your installation:

rem Let CMake determine the library download directory name under
rem WIRESHARK_BASE_DIR or set it explicitly by using WIRESHARK_LIB_DIR.
rem Set *one* of these.
set WIRESHARK_BASE_DIR=C:\Development
rem set WIRESHARK_LIB_DIR=c:\wireshark-win64-libs
rem Set the Qt installation directory
set WIRESHARK_QT6_PREFIX_PATH=C:\Qt\6.2.4\msvc2019_64
rem Append a custom string to the package version. Optional.
set WIRESHARK_VERSION_EXTRA=-YourExtraVersionInfo

Setting these variables could be added to a batch file to be run after you open the Visual Studio Tools Command Prompt.

Use of Qt’s LTS branch It is generally recommended to use a LTS ("long term support") version for Qt. The current LTS version for Qt 6 is 6.2.4.
2. Create and change to the correct build directory. CMake is best used in an out-of-tree build configuration where the build is done in a separate directory from the source tree, leaving the source tree in a pristine state. 64 and 32 bit builds require a separate build directory. Create (if required) and change to the appropriate build directory.

mkdir C:\Development\wsbuild64
cd C:\Development\wsbuild64

to create and jump into the build directory.

The build directory can be deleted at any time and the build files regenerated as detailed in Section 2.2.12, “Generate the build files”.

2.2.12. Generate the build files

CMake is used to process the CMakeLists.txt files in the source tree and produce build files appropriate for your system.

You can generate Visual Studio solution files to build either from within Visual Studio, or from the command line with MSBuild. CMake can also generate other build types but they aren’t supported.

The initial generation step is only required the first time a build directory is created. Subsequent builds will regenerate the build files as required.

If you’ve closed the Visual Studio Command Prompt prepare it again.

To generate the build files enter the following at the Visual Studio command prompt:

cmake -G "Visual Studio 17 2022" -A x64 ..\wireshark
: or
cmake -G "Visual Studio 16 2019" -A x64 ..\wireshark

Adjusting the path to the Wireshark source tree as required. To use a different generator modify the -G parameter. cmake -G lists all the CMake supported generators, but only Visual Studio is supported for Wireshark builds. 32-bit builds are no longer supported.

The CMake generation process will download the required 3rd party libraries (apart from Qt) as required, then test each library for usability before generating the build files.

At the end of the CMake generation process the following should be displayed:

-- Configuring done
-- Generating done
-- Build files have been written to: C:/Development/wsbuild64

If you get any other output, there is an issue in your environment that must be rectified before building. Check the parameters passed to CMake, especially the -G option and the path to the Wireshark sources and the environment variables WIRESHARK_BASE_DIR and CMAKE_PREFIX_PATH.

2.2.13. Build Wireshark

Now it’s time to build Wireshark!

1. If you’ve closed the Visual Studio Command Prompt prepare it again.
2. Run

msbuild /m /p:Configuration=RelWithDebInfo Wireshark.sln

to build Wireshark.

3. Wait for Wireshark to compile. This will take a while, and there will be a lot of text output in the command prompt window
4. Run C:\Development\wsbuild64\run\RelWithDebInfo\Wireshark.exe and make sure it starts.
5. Open HelpAbout. If it shows your "private" program version, e.g.: Version 4.1.0-myprotocol123 congratulations! You have compiled your own version of Wireshark!

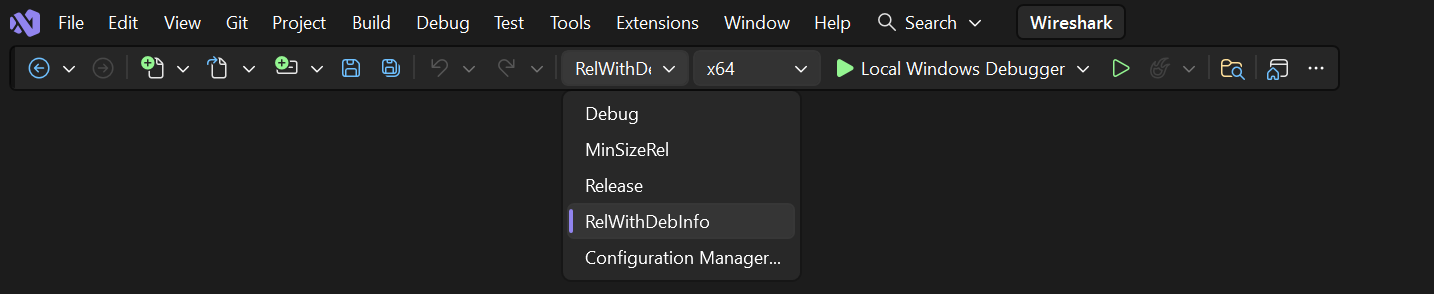

You may also open the Wireshark solution file (Wireshark.sln) in the Visual Studio IDE and build there.

Tip If compilation fails for suspicious reasons after you changed some source files try to clean the build files by running msbuild /m /p:Configuration=RelWithDebInfo Wireshark.sln /t:Clean and then building the solution again.

The build files produced by CMake will regenerate themselves if required by changes in the source tree.

2.2.14. Debug Environment Setup

You can debug using the Visual Studio Debugger or WinDbg. See the section on using the Debugger Tools.

2.2.15. Optional: Create User’s and Developer’s Guide

To build the Wireshark User’s Guide and the Wireshark Developer’s Guide, build the all_guides target, e.g. msbuild all_guides.vcxproj. Detailed information to build these guides can be found in the file docbook\README.adoc in the Wireshark sources.

2.2.16. Optional: Create a Wireshark Installer

Note: You should have successfully built Wireshark before doing the following.

If you want to build your own Wireshark-win64-4.1.0-myprotocol123.exe, you’ll need NSIS. You can download it from http://nsis.sourceforge.net.

Note that the 32-bit version of NSIS will work for both 64-bit and 32-bit versions of Wireshark. NSIS version 3 is required.

If you’ve closed the Visual Studio Command Prompt prepare it again. Run

msbuild /m /p:Configuration=RelWithDebInfo wireshark_nsis_prep.vcxproj
msbuild /m /p:Configuration=RelWithDebInfo wireshark_nsis.vcxproj

to build a Wireshark installer. If you sign your executables you should do so between the “wireshark_nsis_prep” and “wireshark_nsis” steps.

Run

packaging\nsis\wireshark-win64-{wireshark-version}-myprotocol123.exe

to test your new installer. It’s a good idea to test on a different machine than the developer machine.

3.1. Introduction

This chapter will explain how to work with the Wireshark source code. It will show you how to:

• Get the source
• Compile it on your machine
• Submit changes for inclusion in the official release

This chapter will not explain the source file contents in detail, such as where to find specific functionality. This is done in Section 7.1, “Source overview”.

3.2. The Wireshark Git repository

Git is used to keep track of the changes made to the Wireshark source code. The official repository is hosted at GitLab, and incoming changes are evaluated and reviewed there. For more information on GitLab see their documentation.

Why Git?  Git is a fast, flexible way of managing source code. It allows large scale distributed development and ensures data integrity.

Why GitLab?  GitLab makes it easy to contribute. You can make changes locally and push them to your own work area at gitlab.com, or if your change is minor you can make changes entirely within your web browser.

Historical trivia: GitLab is the fourth iteration of our source code repository and code review system.  Wireshark originally used Concurrent Versions System (CVS) and migrated to Subversion in July 2004. We migrated from Subversion to Git and Gerrit in January 2014, and from Gerrit to GitLab in August 2020.

Using Wireshark’s GitLab project you can:

• Keep your private sources up to date with very little effort.
• Get the source files from any previous release (or any other point in time).
• Browse and search the source code using a web interface.
• See which person changed a specific piece of code.

3.2.1. Git Naming Conventions

Like most revision control systems, Git uses branching to manage different copies of the source code and allow parallel development. Wireshark uses the following branch naming conventions:

master.  Main feature development and odd-numbered development releases.

release-x.y, master-x.y.  Stable release maintenance. For example, release-3.4 is used to manage the 3.4.x official releases.

Tags for major releases and release candidates consist of a “v” followed by a version number such as “v3.2.1” or “v3.2.3rc0”. Major releases additionally have a tag prefixed with “wireshark-” followed by a version number, such as “wireshark-3.2.0”.

3.3. Browsing And Searching The Source Code

If you need a quick look at the Wireshark source code you can browse the repository files in GitLab at

https://gitlab.com/wireshark/wireshark/tree/master

You can view commit logs, branches, and tags, find files and search the repository contents. You can also download individual files.

3.4. Obtaining The Wireshark Sources

There are two primary ways to obtain Wireshark’s source code: Git and compressed .tar archives. Each is described in more detail below. We recommend using Git for day to day development, particularly if you wish to contribute changes back to the project. The age mentioned in the following sections indicates the age of the most recent change in that set of the sources.

3.4.1. Git Over SSH Or HTTPS

This method is strongly recommended for day to day development.

You can use a Git client to download the source code from Wireshark’s code review system. Anyone can clone from the anonymous HTTP git URL:

https://gitlab.com/wireshark/wireshark.git

If you have a GitLab account you can also clone using SSH:

[email protected]:wireshark/wireshark.git

If wish to make changes to Wireshark you must create a GitLab account, create a fork of the official Wireshark repository, update your fork, and create a merge request. See Section 3.10, “Contribute Your Changes” for details.

The following example shows how to get up and running on the command line. See Section 4.11, “Git client” for information on installing and configuring graphical Git clients.

1. Now on to the command line. First, make sure git works:

$git --version 2. If this is your first time using Git, make sure your username and email address are configured. This is particularly important if you plan on uploading changes: $ git config --global user.name "Henry Perry"
$git config --global user.email [email protected] 3. Next, clone the Wireshark repository: # If you have a GitLab account, you can use the SSH URL:$ git clone -o upstream [email protected]:wireshark/wireshark.git
# If you don't you can use the HTTPS URL:

3.6. Build Wireshark

The sources contain several documentation files. It’s a good idea to read these files first. After obtaining the sources, tools and libraries, the first place to look at is doc/README.developer. Inside you will find the latest information for Wireshark development for all supported platforms.

Build Wireshark before changing anything It is a very good idea to first test your complete build environment (including running and debugging Wireshark) before making any changes to the source code (unless otherwise noted).

Building Wireshark for the first time depends on your platform.

3.6.1. Building on Unix

Follow the build procedure in Section 2.1, “UNIX: Installation and Build Instructions” to build Wireshark.

3.6.2. Windows Native

Follow the build procedure in Section 2.2, “Windows: Step-by-Step Guide” to build Wireshark.

After the build process has successfully finished, you should find a Wireshark.exe and some other files in the run\RelWithDebInfo directory.

3.7. Run Your Version Of Wireshark

Beware of multiple Wiresharks An already installed Wireshark may interfere with your newly generated version in various ways. If you have any problems getting your Wireshark running the first time, it might be a good idea to remove the previously installed version first.

3.7.1. Unix-Like Platforms

After a successful build you can run Wireshark right from the run directory. There’s no need to install it first.

$./run/wireshark There’s no need to run Wireshark as root user, but depending on your platform you might not be able to capture. Running Wireshark this way can be helpful since debugging output will be displayed in your terminal. You can also change Wireshark’s behavior by setting various environment variables. See the ENVIRONMENT VARIABLES section of the Wireshark man page for more details. 3.7.2. Windows Native By default the CMake-generated Visual C++ project places all of the files necessary to run Wireshark in the subdirectory run\RelWithDebInfo. As with the Unix-like build described above, you can run Wireshark from the build directory without installing it first. > .\run\RelWithDebInfo\Wireshark 3.8. Debug Your Version Of Wireshark 3.8.1. Unix-Like Platforms You can debug using command-line debuggers such as gdb, dbx, or lldb. If you prefer a graphic debugger, you can use an IDE or debugging frontend such as Qt Creator, CLion, or Eclipse. Additional traps can be set on Wireshark by setting the WIRESHARK_LOG_FATAL environment variable: $ WIRESHARK_LOG_FATAL=critical gdb wireshark

If you’re encountering memory safety bugs, you might want to build with Address Sanitizer so that Wireshark will immediately alert you to any detected issues.

$cmake .. -G Ninja -DENABLE_ASAN=1 3.8.2. Windows Native You can debug using the Visual Studio Debugger or WinDbg. See the section on using the Debugger Tools. 3.9. Make Changes To The Wireshark Sources There are several reasons why you might want to change Wireshark’s sources: • Add support for a new protocol (i.e., add a new dissector) • Change or extend an existing dissector • Fix a bug • Implement a glorious new feature Wireshark’s developers work on a variety of different platforms and use a variety of different development environments. Although we don’t enforce or recommend a particular environment, your editor should support EditorConfig in order to make sure you pick up the correct indentation style for any files that you might edit. The internal structure of the Wireshark sources are described in Part II, “Wireshark Development”. Ask the wireshark-dev[AT]wireshark.org mailing list before you start a new development task. If you have an idea what you want to add or change it’s a good idea to contact the developer mailing list (see Section 1.7.6, “Mailing Lists”) and explain your idea. Someone else might already be working on the same topic, so a duplicated effort can be reduced. Someone might also give you tips that should be thought about (like side effects that are sometimes very hard to see). 3.10. Contribute Your Changes If you have finished changing the Wireshark sources to suit your needs, you might want to contribute your changes back to the Wireshark community. You gain the following benefits by contributing your improvements: It’s the right thing to do. Other people who find your contributions useful will appreciate them, and you will know that you have helped people in the same way that the developers of Wireshark have helped you. You get free enhancements. By making your code public, other developers have a chance to make improvements, as there’s always room for improvements. In addition someone may implement advanced features on top of your code, which can be useful for yourself too. You save time and effort. The maintainers and developers of Wireshark will maintain your code as well, updating it when API changes or other changes are made, and generally keeping it in tune with what is happening with Wireshark. So if Wireshark is updated (which is done often), you can get a new Wireshark version from the website and your changes will already be included without any effort for you. There’s no direct way to push changes to the main repository. Only a few people are authorised to actually make changes to the source code (check-in changed files). If you want to submit your changes, you should upload them to the code review system at https://gitlab.com/wireshark/wireshark/-/merge_requests. This requires you to set up git as described at Section 3.4.1, “Git Over SSH Or HTTPS”. 3.10.1. Creating Merge Requests GitLab uses a forking workflow, which looks like this: In the diagram above, your fork can created by pressing the “Fork” button at https://gitlab.com/wireshark/wireshark. Your local repository can be created as described in Section 3.4.1, “Git Over SSH Or HTTPS”. You only need to do this once. You should pull from the main repository on a regular basis in order to ensure that your sources are current. You should push any time you want to make a merge request or otherwise make your code public. The “Pull”, “Push”, and “Merge Request” parts of the workflow are important, so let’s look at them in more detail. First, you need to set up your environment. For the steps below we’ll pretend that your username is “henry.perry”. 1. Sign in to https://gitlab.com/wireshark/wireshark by clicking “Sign in / Register” in the upper right corner of the web page and following the login instructions. 2. Add an SSH key to your account as described in the GitLab documentation. 3. Make sure you have a clone of the main repository as described in Section 3.4.1, “Git Over SSH Or HTTPS”. 4. Create your own personal fork of the Wireshark project by pressing the “Fork” button at https://gitlab.com/wireshark/wireshark. Warning If you want to make merge requests you must keep your fork public. Making it private will disassociate it from the main Wireshark repository. 5. Add a remote for your personal repository. The main repository remote is named “upstream”, so we’ll name this one “downstream”. $ git remote add downstream [email protected]:henry.perry/wireshark.git

$git remote -v$ downstream	[email protected]:henry.perry/wireshark.git (fetch)
$downstream [email protected]:henry.perry/wireshark.git (push)$ upstream	[email protected]:wireshark/wireshark.git (fetch)
$upstream [email protected]:wireshark/wireshark.git (push) Before you begin it’s a good idea to synchronize your local repository with the main repository. This is the Pull part of the workflow. You should do this periodically in order to stay up to date and avoid merge conflicts later on. 1. Fetch and optionally apply the latest changes. # Fetch changes from upstream and apply them to the current branch...$ git pull --rebase upstream master
# ...or fetch changes and leave the current branch alone
$git fetch upstream Now you’re ready to create a merge request (the Push and Merge Request parts of the workflow above). 1. First, create a branch for your change: $ git checkout -b my-glorious-new-feature upstream/master
2. Write some code! See Section 3.10.3, “Some Tips For A Good Patch” and Section 3.10.5, “Code Requirements” for details.
3. Commit your changes. See Section 3.10.4, “Writing a Good Commit Message” for details.

$git commit -a 4. Push your changes to your personal repository. $ git push downstream HEAD
5. Go to https://gitlab.com/wireshark/wireshark/merge_requests. You should see a “Create merge request” button. Press it.
6. In the merge request page, make sure “Allow commits from members who can merge to the target branch” is selected so that core developers can rebase your change. You might want to select “Delete source branch when merge request is accepted” as well. Click the “Submit merge request” button.

3.10.2. Updating Merge Requests

At this point various automated tests will be run and someone will review your change. If you need to make changes you can do so by force-pushing it to the same branch in your personal repository.

# First, make sure you're on the right branch.
$git status On branch my-glorious-new-feature 2. Update your code. 3. Push your changes to your personal repository. # Modify the current commit and force-push...$ git commit --amend ...
$git push downstream +HEAD # ...or keep the current commit as-is add another commit on top of it$ git commit ...
$git push downstream HEAD The + sign is shorthand for forcing the push (-f). 3.10.3. Some Tips For A Good Patch Some tips that will make the merging of your changes into Git much more likely (and you want exactly that, don’t you?): Use the latest Git sources. It’s a good idea to work with the same sources that are used by the other developers. This usually makes it much easier to apply your patch. For information about the different ways to get the sources, see Section 3.4, “Obtaining The Wireshark Sources”. Update your sources just before making a patch. For the same reasons as the previous point. Inspect your patch carefully. Run git diff or git show as appropriate and make sure you aren’t adding, removing, or omitting anything you shouldn’t. Give your branch a brief but descriptive name. Short, specific names such as snowcone-machine-protocol are preferred. Don’t put unrelated things into one large change. Merge requests should be limited in scope. For example, updates to the Snowcone Machine Protocol dissector and the Coloring Rules dialog box should be in separate merge requests. In general, making it easier to understand and apply your patch by one of the maintainers will make it much more likely (and faster) that it will actually be applied. Thank you in advance for your patience. Wireshark is a volunteer effort. As a result, we can’t guarantee a quick turnaround time. Preview the final product. Wireshark’s GitLab CI jobs are disabled by default for forks, but if you need to test any CI jobs you can do so under the “Pipelines” section in your repository. For example, if your change might affect Debian (apt) packaging you can run the “build:debian-stable” job. 3.10.4. Writing a Good Commit Message When running git commit, you will be prompted to describe your change. Here are some guidelines on how to make that message more useful to other people (and to scripts that may try to parse it): Provide a brief description (under 60 characters or so) of the change in the first line. If the change is specific to a single protocol, start this line with the abbreviated name of the protocol and a colon. If the change is not yet complete prefix the line with “WIP:” to inform this change not to be submitted yet. This be removed when the change is ready to be merged. Insert a single blank line after the first line. This is required by various formatting tools and helpful to humans. Provide a detailed description of the change in the lines that follow. Break paragraphs where needed. Limit each line to 80 characters. You can also reference and close issues in a commit message by prefixing the issue number with a number sign. For example, “closes #5” will close issue number 5. Putting all that together, we get the following example: MIPv6: Fix dissection of Service Selection Identifier APN field is not encoded as a dotted string so the first character is not a length. Closes #10323. 3.10.5. Code Requirements To ensure Wireshark’s code quality and to reduce friction in the code review process, there are some things you should consider before submitting a patch: Follow the Wireshark source code style guide. Wireshark runs on many platforms, and can be compiled with a number of different compilers. It’s easy to write code that compiles on your machine, but doesn’t compile elsewhere. The guidelines at Section 7.2, “Coding Style” describe the techniques and APIs that you can use to write high-quality, portable, and maintainable code in our environment. Submit dissectors as built-in whenever possible. Developing a new dissector as a plugin can make compiling and testing quicker, but it’s usually best to convert it to built-in before submitting for review. This reduces the number of files that must be installed with Wireshark and ensures your dissector will be available on all platforms. Dissectors vary, so this is not a hard-and-fast rule. Most dissectors are single C modules that can easily be put into “the big pile.” Some (most notably ASN.1 dissectors) are generated using templates and configuration files. Others are split across multiple source files and are often more suitable to be placed in a separate plugin directory. Ensure that the Wireshark Git Pre-Commit Hook is in the repository. In your local repository directory, there will be a .git/hooks/ directory, with sample git hooks for running automatic actions before and after git commands. You can also optionally install other hooks that you find useful. In particular, the pre-commit hook will run every time you commit a change and can be used to automatically check for various errors in your code. The sample git pre-commit hook simply detects whitespace errors such as mixed tabs and spaces. To install it just remove the .sample suffix from the existing pre-commit.sample file. Wireshark provides a custom pre-commit hook which does additional Wireshark-specific API and formatting checks, but it might return false positives. If you want to install it, copy the pre-commit file from the tools directory (cp ./tools/pre-commit .git/hooks/) and make sure it is executable or it will not be run. If the pre-commit hook is preventing you from committing what you believe is a valid change, you can run git commit --no-verify to skip running the hooks. Warning: using --no-verify avoids the commit-msg hook, and thus if you have setup this hook it will not run. Additionally, if your system supports symbolic links, as all UNIX-like platforms do, you can use them instead of copying files. Running ln -s ../../tools/pre-commit .git/hooks creates a symbolic link that will make the hook to be up-to-date with the current master. Choose a compatible license. Wireshark is released under the GPL version 2 or later, and it is strongly recommended that incoming code use that license. If that is not possible, it must use a compatible license. The following licenses are currently allowed: Notable incompatible licenses include Apache 2.0, GPL 3.0, and LGPL 3.0. Fuzz test your changes. Fuzz testing is a very effective way of finding dissector related bugs. In our case fuzzing involves making random changes to capture files and feeding them to TShark in order to try to make it crash or hang. There are tools available to automatically do this on any number of input files. See https://gitlab.com/wireshark/wireshark/wikis/FuzzTesting for details. 3.10.6. Backporting A Change When a bug is fixed in the master branch it’s sometimes desirable or necessary to backport the fix to a release branch. You can do this in Git by cherry-picking the change from one branch to another. Suppose you want to backport change 1ab2c3d4 from the master branch to master-3.2. You can do so as follows: # Create a new topic branch for the backport.$ git checkout -b backport-g1ab2c3d4 upstream/master-3.2

# Cherry-pick the change. Include a "cherry picked from..." line.
$git cherry-pick -x 1ab2c3d4 # If there are conflicts, fix them. # Compile and test the change.$ ninja
$... # OPTIONAL: Add entries to docbook/release-notes.adoc.$EDITOR docbook/release-notes.adoc

git commit --amend -a

# Push the change to your working repository.
git push downstream HEAD

You can also cherry-pick changes in the GitLab web UI.

3.11. Binary Packaging

Delivering binary packages makes it much easier for the end-users to install Wireshark on their target system. This section will explain how the binary packages are made.

3.11.1. Packaging Guidelines

The following guidelines should be followed by anyone creating and distributing third-party Wireshark packages or redistributing official Wireshark packages.

Spelling And Capitalization

Wireshark is spelled with a capital “W”, and with everything else lower case. “WireShark” in particular is incorrect.

Main URL

The official Wireshark project URL is https://www.wireshark.org/.

Official packages are distributed on the main web server (www.wireshark.org) and a number of download mirrors. The canonical locations for packages are in the all_versions subdirectories on each server.

Artwork

Logo and icon artwork can be found in the image directory in the distribution. This is available online at

https://gitlab.com/wireshark/wireshark/tree/master/image

Licensing

Wireshark is released under the GNU General Public License version 2 or later. Make sure you and your package comply with this license.

Wireshark and the “fin” logo are registered trademarks of the Wireshark Foundation. Make sure you and your package comply with trademark law.

Privileges

All function calls that require elevated privileges are in dumpcap.

WIRESHARK CONTAINS OVER THREE MILLION LINES OF SOURCE CODE. DO NOT RUN THEM AS ROOT.

Warnings are displayed when Wireshark and TShark are run as root.

There are two configure-time options on non-Windows systems that affect the privileges a normal user needs to capture traffic and list interfaces:

-DDUMPCAP_INSTALL_OPTION=capabilities
Install dumpcap with cap_net_admin and cap_net_raw capabilities. Linux only.
-DDUMPCAP_INSTALL_OPTION=suid
Install dumpcap setuid root.

These are necessary for non-root users to be able to capture on most systems, e.g. on Linux or FreeBSD if the user doesn’t have permissions to access /dev/bpf*. Setcap installation is preferred over setuid on Linux. If -DDUMPCAP_INSTALL_OPTION=capabilities is used it will override any setuid settings.

The -DENABLE_CAP option is only useful when dumpcap is installed setuid. If it is enabled dumpcap will try to drop any setuid privileges it may have while retaining the CAP_NET_ADMIN and CAP_NET_RAW capabilities. It is enabled by default, if the Linux capabilities library (on which it depends) is found.

Note that enabling setcap or setuid installation allows packet capture for ALL users on your system. If this is not desired, you can restrict dumpcap execution to a specific group or user. The following two examples show how to restrict access using setcap and setuid respectively:

# groupadd -g packetcapture
# chmod 750 /usr/bin/dumpcap
# chgrp packetcapture /usr/bin/dumpcap

# chgrp packetcapture /usr/bin/dumpcap
# chmod 4750 /usr/bin/dumpcap
Customization

Custom version information can be added by running tools/make-version.py. If your package contains significant changes we recommend that you use this to differentiate it from official Wireshark releases.

tools/make-version.py --set-release --untagged-version-extra=-{vcsinfo}-FooCorp --tagged-version-extra=-FooCorp .

See tools/make-version.py for details.

The Git version corresponding to each release is in version.h. It’s defined as a string. If you need a numeric definition, let us know.

3.11.2. Debian: .deb Packages

The Debian Package is built using dpkg-buildpackage, based on information found in the source tree under packaging/debian. You must create a top-level symbolic link to packaging/debian before building. See https://www.debian.org/doc/manuals/maint-guide/build.en.html for a more in-depth discussion of the build process.

In the wireshark directory, type:

ln -snf packaging/debian
export DEB_BUILD_OPTIONS="nocheck"
dpkg-buildpackage -b -us -uc -jauto

to build the Debian Package.

3.11.3. Red Hat: .rpm Packages

You can build an RPM package using the wireshark_rpm target. If you are building from a git checkout, the package version is derived from the current git HEAD. If you are building from source extracted from a tarball created with git archive (such as those downloaded from http://www.wireshark.org/download.html), you must place the original tarball into your build directory.

The package is built using rpmbuild, which comes as standard on many flavours of Linux, including Red Hat, Fedora, and openSUSE. The process creates a clean build environment in ${CMAKE_BINARY_DIR}/packaging/rpm/BUILD each time the RPM is built. The settings that control the build are in${CMAKE_SOURCE_DIR}/packaging/rpm/wireshark.spec.in. The generated SPEC file contains CMake flags and other settings for the RPM build environment. Many of these come from the parent CMake environment. Notable ones are:

• prefix is set to CMAKE_INSTALL_PREFIX. By default this is /usr/local. Pass -DCMAKE_INSTALL_PREFIX=/usr to create a package that installs into /usr.
• Whether or not to create the “wireshark-qt” package (-DBUILD_wireshark).
• Lua, c-ares, nghttp2, and other library support (-DENABLE_…​).
• Building with Ninja (-G Ninja).

ninja wireshark_rpm
# ...or, if you're using GNU make...
make wireshark_rpm

to build the binary and source RPMs. When it is finished there will be a message stating where the built RPM can be found.

This might take a while This creates a tarball, extracts it, compiles Wireshark, and constructs a package. This can take quite a long time. You can speed up the process by using Ninja. If you’re using GNU make you can add the following to your ~/.rpmmacros file to enable parallel builds: %_smp_mflags -j %(grep -c processor /proc/cpuinfo)

Building the RPM package requires quite a few packages and libraries including GLib, gcc, flex, Asciidoctor, and Qt development tools such as uic and moc. The required Qt packages can usually be obtained by installing the qt5-devel package. For a complete list of build requirements, look for the “BuildRequires” lines in packaging/rpm/wireshark.spec.in.

3.11.4. macOS: .dmg Packages

The macOS Package is built using macOS packaging tools, based on information found in the source tree under packaging/macosx. It requires Asciidoctor and dmgbuild.

ninja wireshark_dmg logray_dmg # (Modify as needed)
# ...or, if you're using GNU make...
make wireshark_dmg logray_dmg # (Modify as needed)

to build the macOS Packages.

3.11.5. Windows: NSIS .exe Installer

The Nullsoft Install System is a free installer generator for Windows systems. Instructions on installing it can be found in Section 4.16, “Windows: NSIS (Optional)”. NSIS is script based. You can find the main Wireshark installer generation script at packaging/nsis/wireshark.nsi.

When building with CMake you must first build the wireshark_nsis_prep target, followed by the wireshark_nsis target, e.g.

> msbuild /m /p:Configuration=RelWithDebInfo wireshark_nsis_prep.vcxproj
> msbuild /m /p:Configuration=RelWithDebInfo wireshark_nsis.vcxproj

Splitting the packaging projects in this way allows for code signing.

This might take a while Please be patient while the package is compressed. It might take some time, even on fast machines.

If everything went well, you will now find something like: wireshark-setup-4.1.0.exe in the packaging/nsis directory in your build directory.

3.11.6. Windows: PortableApps .paf.exe Package

PortableApps.com is an environment that lets users run popular applications from portable media such as flash drives and cloud drive services.

• Install the PortableApps.com Platform. Install for “all users”, which will place it in C:\PortableApps.

• PortableApps.com Installer
• PortableApps.com Launcher

When building with CMake you must first build the wireshark_nsis_prep target (which takes care of general packaging dependencies), followed by the wireshark_portableapps target, e.g.

> msbuild /m /p:Configuration=RelWithDebInfo wireshark_nsis_prep.vcxproj
> msbuild /m /p:Configuration=RelWithDebInfo wireshark_portableapps.vcxproj
This might take a while Please be patient while the package is compressed. It might take some time, even on fast machines.

If everything went well, you will now find something like: WiresharkPortable64_4.1.0.paf.exe in the packaging/portableapps directory.

3.12. Mime Types

Wireshark uses various mime-types for dragging dropping as well as file formats. This chapter gives an overview over all the mimetypes being used, as well as the data format in which data has to be provided for each individual mimetype.

If not otherwise stated, the data is encoded as a JSON Object.

3.12.1. Display Filter

MimeType: application/vnd.wireshark.displayfilter

Display filters are being dragged and dropped by utilizing this mime type.

{
"filter": "udp.port == 8080",
"field": "udp.port",
"description": "UDP Port"
}

3.12.2. Coloring Rules

MimeType: application/vnd.wireshark.coloringrules

Coloring Rules are being used for dragging and dropping color rules inside the coloring rules dialog.

{
"coloringrules" :
[
{
"disabled": false,
"name": "UDP Ports for 8080",
"filter": "udp.port == 8080",
"foreground": "[0x0000, 0x0000, 0x0000]",
"background": "[0xFFFF, 0xFFFF, 0xFFFF]"
}
]
}

3.12.3. Filter List

MimeType: application/vnd.wireshark.filterlist

Internal Use only - used on the filter list for moving entries within the list

3.12.4. Column List

MimeType: application/vnd.wireshark.columnlist

Internal Use only - used on the column list for moving entries within the list

4.1. Introduction

This chapter will provide you with information about the various tools needed for Wireshark development. None of the tools mentioned in this chapter are needed to run Wireshark. They are only needed to build it.

Most of these tools have their roots on UNIX or UNIX-like platforms such as Linux, but Windows ports are also available. Therefore the tools are available in different "flavours":

• UNIX and UNIX-like platforms: The tools should be commonly available on the supported UNIX and UNIX-like platforms. Cygwin is unsupported.
• Windows native: Some tools are available as native Windows tools, no special emulation is required. Many of these tools can be installed (and updated) using Chocolatey, a Windows package manager similar to the Linux package managers apt-get or yum.
Follow the directions Unless you know exactly what you are doing, you should strictly follow the recommendations given in Chapter 2, Quick Setup.

The following sections give a very brief description of what a particular tool is doing, how it is used in the Wireshark project and how it can be installed and tested.

Documentation for these tools is outside the scope of this document. If you need further information on using a specific tool you should find lots of useful information on the web, as these tools are commonly used. You can also get help for the UNIX based tools with toolname --help or the man page via man toolname.

You will find explanations of the tool usage for some of the specific development tasks in Chapter 3, Work with the Wireshark sources.

4.2. Chocolatey

Chocolatey is a Windows package manager that can be used to install (and update) many of the packages required for Wireshark development. Chocolatey can be obtained from the website or from a Command Prompt:

C:\>@powershell -NoProfile -ExecutionPolicy unrestricted -Command "iex ((new-object net.webclient).DownloadString(_https://chocolatey.org/install.ps1_))" && SET PATH=%PATH%;%ALLUSERSPROFILE%\chocolatey\bin

or a Powershell prompt:

PS:\>iex ((new-object net.webclient).DownloadString(_https://chocolatey.org/install.ps1_))

Chocolatey sometimes installs packages in unexpected locations. Python is a notable example. While it’s typically installed in a top-level directory, e.g. C:\Python37 or in %PROGRAMFILES%, e.g. C:\Program Files\Python37, Chocolatey tends to install it under C:\ProgramData\chocolatey or C:\Tools. If you want to avoid this behavior you’ll probably want to install Python using the packages from python.org.

Other package managers for Windows include the Windows Package Manager (winget) and Scoop. As of January 2022 neither option provides all of the packages we require, but that might change in the future.

4.3. CMake

Wireshark’s build environment can be configured using CMake on various UNIX-like platforms, including Linux, macOS, and *BSD, and on Windows. CMake is designed to support out-of-tree builds - so much so that in-tree builds do not work properly in all cases. Along with being cross-platform, CMake supports many build tools and environments including traditional make, Ninja, and MSBuild.

Building with CMake typically includes creating a build directory and specifying a generator, aka a build tool. For example, to build Wireshark using Ninja in the directory wireshark-ninja you might run the following commands:

# Starting from your Wireshark source directory, create a build directory
# alongside it.
$cd ..$ mkdir wireshark-ninja
$cd wireshark-ninja # Assumes your source directory is named "wireshark".$ cmake -G Ninja ../wireshark
$ninja (or cmake --build .) Using CMake on Windows is described further in Section 2.2.12, “Generate the build files”. Along with specifying a generator with the -G flag you can set variables using the -D flag. Useful variables and generators include the following: -DBUILD_wireshark=OFF Don’t build the Wireshark GUI application. Each command line utility has its own BUILD_xxx flag as well. For example, you can use -DBUILD_mmdbresolve=OFF to disable mmdbresolve. -DENABLE_CCACHE=ON Build using the ccache compiler cache. -DENABLE_CAP=OFF Disable the POSIX capabilities check -DCMAKE_BUILD_TYPE=Debug Enable debugging symbols -DCARES_INCLUDE_DIR=/your/custom/cares/include, -DCARES_LIBRARY=/your/custom/cares/lib/libcares.so Let you set the path to a locally-compiled version of c-ares. Most optional libraries have xxx_INCLUDE_DIR and xxx_LIB flags that let you control their discovery. -DCMAKE_OSX_DEPLOYMENT_TARGET=10.12 Specify the minimum macOS version for Wireshark and each command line utility. Note that this doesn’t affect the minimum target for third-party libraries. For example, if you’re building for macOS 10.12 you’ll need to install Qt 5.14 or earlier and ensure that other libraries support macOS 10.12, for example by running tools/macos-setup.sh -t 10.12. -DENABLE_APPLICATION_BUNDLE=OFF Disable building an application bundle (Wireshark.app) on macOS You can list all build variables (with help) by running cmake -LH [options] ../<Name_of_WS_source_dir>. This lists the cache of build variables after the cmake run. To only view the current cache, add option -N. Depending on your needs, it might be useful to save your CMake configuration options in a file outside your build directory. CMake supports this via its presets option. For example, adding the follwing to CMakeUserPresets.json would let you build using Ninja in the build directory, enable ccache, and set a custom Qt directory by running cmake --preset mydev: { "version": 4, "configurePresets": [ { "name": "mydev", "displayName": "Local development", "generator": "Ninja", "binaryDir": "${sourceDir}/build",
"cacheVariables": {
"ENABLE_CCACHE": "ON"
},
"environment": {
"CMAKE_PREFIX_PATH": "/usr/local/Qt6"
}
}
]
}

After running cmake, you can always run make help to see a list of all possible make targets.

Note that CMake honors user umask for creating directories as of now. You should set the umask explicitly before running the install target.

Official documentation: https://cmake.org/documentation/

About CMake in general and why KDE4 uses it: https://lwn.net/Articles/188693/

4.4. GNU Compiler Toolchain (UNIX And UNIX-like Platforms)

4.4.1. gcc (GNU Compiler Collection)

The GCC C compiler is available for most UNIX and UNIX-like operating systems.

If GCC isn’t already installed or available as a package for your platform, you can get it at: https://gcc.gnu.org/.

After correct installation, typing at the bash command line prompt:

$gcc --version should result in something like gcc (Ubuntu 4.9.1-16ubuntu6) 4.9.1 Copyright (C) 2014 Free Software Foundation, Inc. This is free software; see the source for copying conditions. There is NO warranty; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Your version string may vary, of course. 4.4.2. gdb (GNU Project Debugger) GDB is the debugger for the GCC compiler. It is available for many (if not all) UNIX-like platforms. If you don’t like debugging using the command line, many GUI frontends for it available, including Qt Creator, CLion, and Eclipse. If gdb isn’t already installed or available as a package for your platform, you can get it at: https://www.gnu.org/software/gdb/gdb.html. After correct installation: $ gdb --version

should result in something like:

GNU gdb (GDB) 8.3
Copyright (C) 2019 Free Software Foundation, Inc.
This is free software: you are free to change and redistribute it.
There is NO WARRANTY, to the extent permitted by law.

Your version string may vary, of course.

4.4.3. make (GNU Make)

GNU make isn’t supported either for Windows GNU Make is available for most of the UNIX-like platforms.

If GNU Make isn’t already installed or available as a package for your platform, you can get it at: https://www.gnu.org/software/make/.

After correct installation:

$make --version should result in something like: GNU Make 4.0 Built for x86_64-pc-linux-gnu Copyright (C) 1988-2013 Free Software Foundation, Inc. Licence GPLv3+: GNU GPL version 3 or later <http://gnu.org/licenses/gpl.html> This is free software: you are free to change and redistribute it. There is NO WARRANTY, to the extent permitted by law. Your version string may vary, of course. 4.4.4. Ninja Ninja is an alternative to make, and is available for many of the UNIX-like platforms. It runs builds faster than make does. It is designed to have its build files generated by tools such as CMake; to generate build files for Ninja, run CMake with the -G Ninja flag. If Ninja isn’t already installed, see the list of suggestions for Ninja packages at: https://github.com/ninja-build/ninja/wiki/Pre-built-Ninja-packages. If Ninja isn’t already installed and isn’t available as a package for your platform, you can get it from: https://ninja-build.org. You can download the source code or binaries for Linux, macOS, and Windows (we have not tested Ninja on Windows). 4.5. Microsoft compiler toolchain (Windows native) To compile Wireshark on Windows using the Microsoft C/C++ compiler (MSVC), you’ll need: 1. C compiler (cl.exe) 2. Assembler (ml.exe for 32-bit targets and ml64.exe for 64-bit targets) 3. Linker (link.exe) 4. Resource Compiler (rc.exe) 5. C runtime headers and libraries (e.g. stdio.h, vcruntime140.lib) 6. Windows platform headers and libraries (e.g. windows.h, WS2_32.lib) 4.5.1. Official Toolchain Packages And Alternatives Official releases are or were built with the following Visual C++ versions: • Wireshark 3.6.x: Microsoft Visual C++ 2019. • Wireshark 3.4.x: Microsoft Visual C++ 2019. • Wireshark 3.2.x: Microsoft Visual C++ 2019. • Wireshark 3.0.x: Microsoft Visual C++ 2017. • Wireshark 2.6.x: Microsoft Visual C++ 2017. • Wireshark 2.4.x: Microsoft Visual C++ 2015. • Wireshark 2.2.x: Microsoft Visual C++ 2013. • Wireshark 2.0.x: Microsoft Visual C++ 2013. • Wireshark 1.12.x: Microsoft Visual C++ 2010 SP1. • Wireshark 1.10.x: Microsoft Visual C++ 2010 SP1. • Wireshark 1.8.x: Microsoft Visual C++ 2010 SP1. • Wireshark 1.6.x: Microsoft Visual C++ 2008 SP1. • Wireshark 1.4.x: Microsoft Visual C++ 2008 SP1. • Wireshark 1.2.x: Microsoft Visual C++ 2008 SP1. • Wireshark 1.0.x and earlier: Microsoft Visual C++ 6.0. Using the release compilers is recommended for Wireshark development work. “Community” editions of Visual Studio such as “Visual Studio Community 2022” can be used to compile Wireshark but any PortableApps packages you create with them might require the installation of a separate Visual C++ Redistributable package on any machine on which the PortableApps package is to be used. See Section 4.5.6, “Visual C++ Runtime “Redistributable” Files” below for more details. However, you might already have a different Microsoft C++ compiler installed. It should be possible to use any of the following with the considerations listed. You will need to sign up for a Visual Studio Dev Essentials account if you don’t have a Visual Studio (MSDN) subscription. The older versions can be downloaded from https://visualstudio.microsoft.com/vs/older-downloads/. 4.5.2. Visual C++ 2022 Community Edition IDE + Debugger? Yes SDK required for 64-bit builds? No CMake Generator: Visual Studio 17 You can use Chocolatey to install Visual Studio, e.g: PS:\> choco install visualstudiocommunity2022 visualstudio2022-workload-nativedesktop 4.5.3. Visual C++ 2019 Community Edition IDE + Debugger? Yes SDK required for 64-bit builds? No CMake Generator: Visual Studio 16 You can use Chocolatey to install Visual Studio, e.g: PS:\> choco install visualstudiocommunity2019 visualstudio2019-workload-nativedesktop 4.5.4. cl.exe (C Compiler) The following table gives an overview of the possible Microsoft toolchain variants and their specific C compiler versions ordered by release date.  Compiler Package cl.exe _MSC_VER Visual Studio 2019 16.0.0 1920 Visual Studio 2019 16.1.2 1921 Visual Studio 2019 16.2.3 1922 Visual Studio 2019 16.3.2 1923 Visual Studio 2022 17.0 1930 Visual Studio 2022 17.1 1931 After correct installation of the toolchain, typing at the Visual Studio Command line prompt (cmd.exe): > cl should result in something like: Microsoft (R) C/C++ Optimizing Compiler Version 19.23.28106.4 for x64 Copyright (C) Microsoft Corporation. All rights reserved. usage: cl [ option... ] filename... [ /link linkoption... ] However, the version string may vary. Documentation on recent versions of the compiler can be found at Microsoft Docs 4.5.5. link.exe (Linker) After correct installation, typing at the Visual Studio Command line prompt (cmd.exe): > link should result in something like: Microsoft (R) Incremental Linker Version 14.23.28106.4 Copyright (C) Microsoft Corporation. All rights reserved. usage: LINK [options] [files] [@commandfile] ... However, the version string may vary. Documentation on recent versions of the linker can be found at Microsoft Docs 4.5.6. Visual C++ Runtime “Redistributable” Files Please note: The following is not legal advice. Ask your preferred lawyer instead. It’s the authors view and this view might be wrong. Wireshark and its libraries depend on POSIX functions such as fopen() and malloc(). On Windows, these functions are provided by the Microsoft Visual C++ C Runtime (CRT). There are many different versions of the CRT and Visual C++ 2015 and later use the Universal CRT (UCRT). The Universal CRT comes standard with Windows 10 and is installed as part of Windows Update on earlier versions of Windows. The Wireshark .exe installers include redistributables (vc_redist.x64.exe or vc_redist.x86.exe) which ensure that the Universal CRT is installed and up to date. Make sure you’re allowed to distribute this file The files to redistribute must be mentioned in the redist.txt file of the compiler package. Otherwise it can’t be legally redistributed by third parties like us. The following Microsoft Docs link is recommended for the interested reader: Redistributing Visual C++ Files In all cases where vc_redist.x64.exe or vc_redist.x86.exe is downloaded it should be downloaded to the directory into which the support libraries for Wireshark have been downloaded and installed. This directory is specified by the WIRESHARK_BASE_DIR or WIRESHARK_LIB_DIR environment variables. It need not, and should not, be run after being downloaded. 4.5.7. Windows Platform SDK The Windows Platform SDK (PSDK) or Windows SDK is a free (as in beer) download and contains platform specific headers and libraries (e.g. windows.h, WSock32.lib, etc.). As new Windows features evolve in time, updated SDKs become available that include new and updated APIs. When you purchase a commercial Visual Studio or use the Community Edition, it will include an SDK. 4.6. Documentation Toolchain Wireshark’s documentation is split across two directories. The doc directory contains man pages written in Asciidoctor markup. The docbook directory contains the User’s Guide, Developer’s Guide, and the release notes, which are also written in Asciidoctor markup. The split is for historical reasons (described below), and the documentation will likely be consolidated into one directory in the future. Our various output formats are generated using the following tools. Intermediate formats are in italics. Man page roff Asciidoctor Man page HTML Asciidoctor Guide HTML Asciidoctor → DocBook XML → xsltproc + DocBook XSL Guide PDF Asciidoctor Release notes HTML Asciidoctor Release notes text Asciidoctor → HTML → html2text.py 4.6.1. Asciidoctor Asciidoctor comes in several flavors: a Ruby gem (Asciidoctor), a Java bundle (AsciidoctorJ), and transpiled JavaScript (Asciidoctor.js). The Ruby and Java flavors can be used to build Wireshark’s documentation, but the JavaScript flavor doesn’t support all of the features that we require. The guides and release notes were originally written in DocBook (hence the directory name). They were later converted to AsciiDoc and then migrated to Asciidoctor. The man pages were originally in Perl’s POD (Plain Old Documentation) format and were later converted to Asciidoctor. We use Asciidoctor’s modern (>= 1.5.0) syntax. PDF output requires Asciidoctor’s PDF backend. It is included with AsciidoctorJ but not with Asciidoctor. 4.6.2. DocBook XML and XSL Converting from DocBook to HTML requires the DocBook DTD (http://www.sagehill.net/docbookxsl/ToolsSetup.html) and DocBook stylesheets (http://www.sagehill.net/docbookxsl/InstallStylesheets.html). These are available via installable packages on most Linux distributions, Chocolatey, and Homebrew. 4.6.3. xsltproc xsltproc converts DocBook XML to various formats based on XSL stylesheets. It either ships as part of the operating system or is available via an installable package on most Linux distributions, Chocolatey, and Homebrew. 4.7. Debugger Using a good debugger can save you a lot of development time. The debugger you use must match the C compiler Wireshark was compiled with, otherwise the debugger will simply fail or you will only see a lot of garbage. 4.7.1. Visual Studio Integrated Debugger You can use the integrated debugger of Visual Studio if your toolchain includes it. Open the solution in your build directory and build and debug as normal with a Visual Studio solution. To set the correct paths for Visual Studio when running Wireshark under the debugger, add the build output directory to the path before opening Visual Studio from the same command prompt, e.g. C:\Development\wsbuild64>set PATH="%PATH%;C:\Development\wsbuild64\run\RelwithDebInfo" C:\Development\wsbuild64>wireshark.sln for PowerShell use PS C:\Development\wsbuild64>$env:PATH += ";$(Convert-Path run\RelWithDebInfo)" PS C:\Development\wsbuild64>wireshark.sln When Visual Studio has finished loading the solution, set the executable to be run in the debugger, e.g. Executables\Wireshark, by right clicking it in the Solution Explorer window and selecting "Set as StartUp Project". Also set the Solution Configuration (usually RelWithDebInfo) from the droplist on the toolbar. Note Currently Visual Studio regards a command line build as incomplete, so will report that some items need to be built when starting the debugger. These can either be rebuilt or ignored as you wish. The normal build is an optimised release version so debugging can be a bit difficult as variables are optimised out into registers and the execution order of statements can jump around. If you require a non-optimised version, then build using a debug configuration. 4.7.2. Debugging Tools For Windows You can also use the Microsoft Debugging Tools for Windows toolkit, which is a standalone GUI debugger. Although it’s not that comfortable compared to debugging with the Visual Studio integrated debugger it can be helpful if you have to debug on a machine where an integrated debugger is not available. You can get it free of charge from Microsoft in several ways, see the Debugging tools for Windows page. You can also use Chocolatey to install WinDbg: PS:\> choco install windbg To debug Wireshark using WinDbg, open the built copy of Wireshark using the File → Open Executable…​ menu, i.e. C:\Development\wsbuild64\run\RelWithDebInfo\Wireshark.exe. To set a breakpoint open the required source file using the File → Open Source File…​ menu and then click on the required line and press F9. To run the program, press F5. If you require a non-optimised version, then build using a debug configuration, e.g. msbuild /m /p:Configuration=Debug Wireshark.sln. The build products will be found in C:\Development\wsbuild64\run\Debug\. 4.8. bash The bash shell is needed to run several shell scripts. Unix Bash (the GNU Bourne-Again SHell) is available for most UNIX and UNIX-like platforms. If it isn’t already installed or available as a package for your platform, you can get it at https://www.gnu.org/software/bash/bash.html. After correct installation, typing at the bash command line prompt: $ bash --version

should result in something like:

GNU bash, version 4.4.12(1)-release (x86_64-pc-linux-gnu)
Copyright (C) 2016 Free Software Foundation, Inc.

Your version string will likely vary.

4.9. Python

Python is an interpreted programming language. It is used to generate some source files, documentation, testing and other tasks. Python 3.6 and later is required. Python 2 is no longer supported.

Python is either included or available as a package on most UNIX-like platforms. Windows packages and source are available at https://python.org/download/.

You can also use Chocolatey to install Python:

PS:\> choco install python3

Chocolatey installs Python into C:\Python37 by default. You can verify your Python version by running

$python3 --version on UNIX-like platforms and rem Official package C:> cd python35 C:Python35> python --version rem Chocolatey C:> cd \tools\python3 C:\tools\python3> python --version on Windows. You should see something like Python 3.5.1 Your version string may vary of course. 4.10. Flex Flex is a lexical analyzer generator used for Wireshark’s display filters, some file formats, and other features. Unix Flex is available for most UNIX and UNIX-like platforms. See the next section for native Windows options. If GNU flex isn’t already installed or available as a package for your platform you can get it at https://www.gnu.org/software/flex/. After correct installation running the following $ flex --version

should result in something like:

flex version 2.5.4

Windows

A native Windows version of flex is available in the winflexbison3 Chocolatey package. Note that the executable is named win_flex.

PS:\> choco install winflexbison3

Native packages are available from other sources such as GnuWin. They aren’t officially supported but should work.

4.11. Git client

The Wireshark project uses its own Git repository to keep track of all the changes done to the source code. Details about the usage of Git in the Wireshark project can be found in Section 3.2, “The Wireshark Git repository”.

If you want to work with the source code and are planning to commit your changes back to the Wireshark community, it is recommended to use a Git client to get the latest source files. For detailed information about the different ways to obtain the Wireshark sources, see Section 3.4, “Obtaining The Wireshark Sources”.

You will find more instructions in Section 3.4.1, “Git Over SSH Or HTTPS” on how to use the Git client.

Unix

Git is available for most UNIX and UNIX-like platforms. If Git isn’t already installed or available as a package for your platform, you can get it at: https://git-scm.com/.

After correct installation, typing at the bash command line prompt:

$git --version should result in something like: git version 2.14.1 Your version will likely be different. Windows The Git command line tools for Windows can be found at https://git-scm.com/download/win and can also be installed using Chocolatey: PS:\> choco install git After correct installation, typing at the command line prompt (cmd.exe): > git --version should result in something like: git version 2.16.1.windows.1 However, the version string may vary. 4.12. Git Powershell Extensions (Optional) A useful tool for command line git on Windows is PoshGit. Poshgit provides git command completion and alters the prompt to indicate the local working copy status. You can install it using Chocolatey: PS:\> choco install poshgit 4.13. Git GUI Client (Optional) Along with the traditional command-line client, several GUI clients are available for a number of platforms. See https://git-scm.com/downloads/guis for details. 4.14. Perl (Optional) Perl is an interpreted programming language. Perl is used to convert various text files into usable source code and for various source code checks. Perl version 5.6 and above should work fine. Unix Perl is available for most UNIX and UNIX-like platforms. If it isn’t already installed or available as a package for your platform, you can get it at https://www.perl.org/. After correct installation, typing at the bash command line prompt: $ perl --version

should result in something like:

This is perl 5, version 26, subversion 0 (v5.26.0) built for x86_64-linux-gnu-thread-multi
(with 62 registered patches, see perl -V for more detail)

Perl may be copied only under the terms of either the Artistic License or the
GNU General Public License, which may be found in the Perl 5 source kit.

Complete documentation for Perl, including FAQ lists, should be found on
this system using "man perl" or "perldoc perl".  If you have access to the
Internet, point your browser at http://www.perl.org/, the Perl Home Page.

However, the version string may vary.

Windows

A native Windows Perl package can be obtained from Strawberry Perl or Active State. The installation should be straightforward.

You may also use Chocolatey to install either package:

PS:\> choco install strawberryperl

or

PS:\> choco install activeperl

After correct installation, typing at the command line prompt (cmd.exe):

> perl -v

should result in something like:

This is perl, v5.8.0 built for MSWin32-x86-multi-thread
(with 1 registered patch, see perl -V for more detail)

Binary build 805 provided by ActiveState Corp. http://www.ActiveState.com
Built 18:08:02 Feb  4 2003
...

However, the version string may vary.

4.15. patch (Optional)

The patch utility is used to merge a diff file into your own source tree. This tool is only needed, if you want to apply a patch (diff file) from someone else (probably from the developer mailing list) to try out in your own private source tree.

It most cases you may not need the patch tool installed. Git should handle patches for you.

Unix

Patch is available for most UNIX and UNIX-like platforms. If GNU patch isn’t already installed or available as a package for your platform, you can get it at https://www.gnu.org/software/patch/patch.html.

After correct installation, typing at the bash command line prompt:

$patch --version should result in something like: patch 2.5.8 Copyright (C) 1988 Larry Wall Copyright (C) 2002 Free Software Foundation, Inc. This program comes with NO WARRANTY, to the extent permitted by law. You may redistribute copies of this program under the terms of the GNU General Public License. For more information about these matters, see the file named COPYING. written by Larry Wall and Paul Eggert However, the version string may vary. Windows The Windows native Git tools provide patch. A native Windows patch package can be obtained from http://gnuwin32.sourceforge.net/. The installation should be straightforward. 4.16. Windows: NSIS (Optional) The NSIS (Nullsoft Scriptable Install System) is used to generate Wireshark-win64-4.1.0.exe from all the files needed to be installed, including all required DLLs, plugins, and supporting files. To install it, download the latest released version from https://nsis.sourceforge.net. NSIS v3 is required. You can also install it using Chocolatey: PS$> choco install nsis

You can find more instructions on using NSIS in Section 3.11.5, “Windows: NSIS .exe Installer”.

4.17. Windows: WiX Toolset (Optional)

The Wix Toolset can be used to generate Windows Installer (.msi) packages. You can download it from the WiX web site or install it using Chocolatey:

$wireshark dumpfile.pcap but the extcap interface allows for such a connection to be easily established and configured using the Wireshark GUI. The extcap subsystem is made of multiple extcap binaries that are automatically called by the GUI in a row. In the following chapters we will refer to them as “the extcaps”. Extcaps may be any binary or script within the extcap directory. Please note, that scripts need to be executable without prefacing a script interpreter before the call. Important Windows Users Because of restrictions directly calling the script may not always work. In such a case, a batch file may be provided, which then in turn executes the script. Please refer to Section 8.2.1.4.1, “Execute A Script-based Extcap On Windows” for more information. When Wireshark launches an extcap, it automatically adds its installation path (normally C:\Program Files\Wireshark\) to the DLL search path so that the extcap library dependencies can be found (it is not designed to be launched by hand). This is done on purpose. There should only be extcap programs (executables, Python scripts, etc.) in the extcap folder to reduce the startup time and not have Wireshark trying to execute other file types. 8.2.1. Extcap Command Line Interface The actual capture is run after a setup process that can be done manually by the user or automatically by the GUI. All the steps performed are done for every extcap. Let’s go through those steps. 8.2.1.1. Query For Available Interfaces In the first step the extcap is queried for its interfaces. $ extcapbin --extcap-interfaces

This call must print the existing interfaces for this extcap and must return 0. The output must conform to the grammar specified for extcap, and it is specified in the doc/extcap.4 generated man page (in the build dir).

Wireshark 2.9 and later also pass --extcap-version=x.x, which provides the calling Wireshark’s major and minor version. This can be used to change behavior depending on the Wireshark version in question.

Example call for interface query.

$extcap_example.py --extcap-interfaces --extcap-version=4.0 extcap {version=1.0}{help=Some help url} interface {value=example1}{display=Example interface 1 for extcap} interface {value=example2}{display=Example interface 2 for extcap} The version for the extcap sentence (which may exist as many times as is needed, but only the last one will be used) will be used for displaying the version information of the extcap interface in the about dialog of Wireshark. The value for each interface will be used in subsequent calls as the interface name <iface>. Using the help argument, an interface may provide a generic help URL for the extcap utility. 8.2.1.2. Ask For DLTs For Each Interface Next, the extcap binary is queried for all valid DLTs for all the interfaces returned by step 1. $ extcap_example.py --extcap-dlts --extcap-interface <iface>

This call must print the valid DLTs for the interface specified. This call is made for all the interfaces and must return 0.

Example for the DLT query.

$extcap_example.py --extcap-interface IFACE --extcap-dlts dlt {number=147}{name=USER1}{display=Demo Implementation for Extcap} A binary or script which neither provides an interface list or a DLT list will not show up in the extcap interfaces list. 8.2.1.3. The Extcap Configuration Interface The extcap binary is next asked for the configuration of each specific interface $ extcap_example.py --extcap-interface <iface> --extcap-config

Each interface can have custom options that are valid for this interface only. Those config options are specified on the command line when running the actual capture. To allow an end-user to specify certain options, such options may be provided using the extcap config argument.

To share which options are available for an interface, the extcap responds to the command --extcap-config, which shows all the available options (aka additional command line options).

Those options are used to build a configuration dialog for the interface.

Example for interface options.

$extcap_example.py --extcap-interface <iface> --extcap-config arg {number=0}{call=--delay}{display=Time delay}{tooltip=Time delay between packages}{type=integer}{range=1,15}{required=true} arg {number=1}{call=--message}{display=Message}{tooltip=Package message content}{placeholder=Please enter a message here ...}{type=string} arg {number=2}{call=--verify}{display=Verify}{tooltip=Verify package content}{type=boolflag} arg {number=3}{call=--remote}{display=Remote Channel}{tooltip=Remote Channel Selector}{type=selector} arg {number=4}{call=--server}{display=IP address for log server}{type=string}{validation=\\b(?:(?:25[0-5]|2[0-4][0-9]|[01]?[0-9][0-9]?)\\.){3}(?:25[0-5]|2[0-4][0-9]|[01]?[0-9][0-9]?)\\b} value {arg=3}{value=if1}{display=Remote1}{default=true} value {arg=3}{value=if2}{display=Remote2}{default=false} Now the user can click on the options and change them. They are sent to the extcap when the capture is launched. There are several kind of options available:  File A path to a file displayed as a text entry and file selector. Flag A boolean value displayed as a checkbox. boolflag for instance expects the option to be present resulting in the corresponding entry set to true or false. Selection A set of fixed values displayed as a combobox, radio group, or selection list. Selections can be presented multiple times in the command line. Subsequent value items must be provided in the config list. Timestamp A time value displayed as a date/time editor. Value A text or numeric value displayed as an entry box. Values are passed as a single value via the command-line call. 8.2.1.4. The Extcap Capture Process Once the interfaces are listed and configuration is customized by the user the capture can be started. $ extcap_example.py --extcap-interface <iface> [params] --capture [--extcap-capture-filter <cfilter>]
--fifo FIFO

To run the capture, the extcap must implement the --capture, --extcap-capture-filter and --fifo options.

They are automatically added by Wireshark, which opens the fifo for reading. All the other options are automatically added to run the capture. The extcap interface is used like all other interfaces (meaning that capture on multiple interfaces, as well as stopping and restarting the capture is supported).

8.2.1.4.1. Execute A Script-based Extcap On Windows

Although Windows will run batch and PowerShell scripts directly, other scripting languages require extra effort. In most cases this involves creating a wrapper script which runs the appropriate interpreter. For example, in order to run a Python-based extcap, you can create scriptname.bat inside your extcap folder with the following content:

@echo off
C:\Windows\py.exe C:\Path\to\my\extcap.py %*

8.2.2. Extcap Arguments

The extcap interface provides the possibility for generating a GUI dialog to set and adapt settings for the extcap binary.

All options must provide a number, by which they are identified. No number may be provided twice. All options must present the elements call and display, with call specifying the argument’s name on the command line and display specifying the name in the GUI.

Additionally tooltip and placeholder may be provided, which will give the user information about what to enter into this field.

These options do have types, for which the following types are being supported:

 integer, unsigned, long, double This provides a field for entering a numeric value of the given data type. A default value may be provided, as well as a range. arg {number=0}{call=--delay}{display=Time delay}{tooltip=Time delay between packages}{type=integer}{range=1,15}{default=0} string This provides a field for entering a text value. arg {number=1}{call=--server}{display=IP Address}{tooltip=IP Address for log server}{type=string}{validation=\\b(?:(?:25[0-5]|2[0-4][0-9]|[01]?[0-9][0-9]?)\\.){3}(?:25[0-5]|2[0-4][0-9]|[01]?[0-9][0-9]?)\\b} validation allows to provide a regular expression string, which is used to check the user input for validity beyond normal data type or range checks. Back-slashes must be escaped (as in \\b for \b) password Lets the user provide a masked string to the capture. Password strings are not saved with other capture settings. arg {number=0}{call=--password}{display=The user password}{tooltip=The password for the connection}{type=password} boolean, boolflag This provides the possibility to set a true/false value. boolflag values will only appear in the command line if set to true, otherwise they will not be added to the command-line call for the extcap interface. arg {number=2}{call=--verify}{display=Verify}{tooltip=Verify package content}{type=boolflag} fileselect Lets the user provide a file path. If mustexist=true is provided, the GUI shows the user a dialog for selecting a file. When mustexist=false is used, the GUI shows the user a file dialog for saving a file. arg {number=3}{call=--logfile}{display=Logfile}{tooltip=A file for log messages}{type=fileselect}{mustexist=false} selector, editselector, radio, multicheck Option fields where the user may choose from one or more options. If parent is provided for the value items, the option fields for multicheck and selector are presented in a tree-like structure. selector and radio values must present a default value, which will be the value provided to the extcap binary for this argument. editselector option fields let the user select from a list of items or enter a custom value. arg {number=3}{call=--remote}{display=Remote Channel}{tooltip=Remote Channel Selector}{type=selector} value {arg=3}{value=if1}{display=Remote1}{default=true} value {arg=3}{value=if2}{display=Remote2}{default=false}

A selector may be reloaded from the configuration dialog of the extcap application within Wireshark. With the reload argument (defaults to false), the entry can be marked as reloadable.

arg {number=3}{call=--remote}{display=Remote Channel}{tooltip=Remote Channel Selector}{type=selector}{reload=true}{placeholder=Load interfaces...}

After this has been defined, the user will get a button displayed in the configuration dialog for this extcap application, with the text "Load interfaces…​" in this case, and a generic "Reload" text if no text has been provided.

The extcap utility is then called again with all filled out arguments and the additional parameter --extcap-reload-option <option_name>. It is expected to return a value section for this option, as it would during normal configuration. The provided option list is then presented as the selection, a previous selected option will be reselected if applicable.

8.2.2.2. Validation Of Arguments

Arguments may be set with {required=true} which enforces a value being provided, before a capture can be started using the extcap options dialog. This is not being checked, if the extcap is started via a simple double-click. The necessary fields are marked for the customer, to ensure a visibility for the end customer of the required argument.

Additionally text and number arguments may also be checked using a regular expression, which is provided using the validation attribute (see example above). The syntax for such a check is the same as for Qt RegExp classes. This feature is only active in the Qt version of Wireshark.

8.2.3. Toolbar Controls

An extcap utility can provide configuration for controls to use in an interface toolbar. These controls are bidirectional and can be used to control the extcap utility while capturing.

This is useful in scenarios where configuration can be done based on findings in the capture process, setting temporary values or give other inputs without restarting the current capture.

Example of interface definition with toolbar controls.

$extcap_example.py --extcap-interfaces extcap {version=1.0}{display=Example extcap interface} interface {value=example1}{display=Example interface 1 for extcap} interface {value=example2}{display=Example interface 2 for extcap} control {number=0}{type=string}{display=Message}{tooltip=Package message content. Must start with a capital letter.}{validation=[A-Z]+}{required=true} control {number=1}{type=selector}{display=Time delay}{tooltip=Time delay between packages} control {number=2}{type=boolean}{display=Verify}{default=true}{tooltip=Verify package content} control {number=3}{type=button}{display=Turn on}{tooltip=Turn on or off} control {number=4}{type=button}{role=logger}{display=Log}{tooltip=Show capture log} value {control=1}{value=1}{display=1 sec} value {control=1}{value=2}{display=2 sec}{default=true} All controls will be presented as GUI elements in a toolbar specific to the extcap utility. The extcap must not rely on using those controls (they are optional) because of other capturing tools not using GUI (e.g. tshark, tfshark). 8.2.3.1. Controls The controls are similar to the arguments, but without the call element. All controls may be given a default value at startup and most can be changed during capture, both by the extcap and the user (depending on the type of control). All controls must provide a number, by which they are identified. No number may be provided twice. All options must present the elements type and display, where type provides the type of control to add to the toolbar and display providing the name in the GUI. Additionally tooltip and placeholder may be provided, which will give the user information about what to enter into this field. All controls, except from the logger, help and restore buttons, may be disabled (and enabled) in GUI by the extcap during capture. This can be because of set-once operations, or operations which takes some time to complete. All control values which are changed by the user (not equal to the default value) will be sent to the extcap utility when starting a capture. The extcap utility may choose to discard initial values and set new values, depending on implementation. These types are defined as controls:  boolean This provides a checkbox which lets the user set a true/false value. The extcap utility can set a default value at startup, and can change (set) and receive value changes while capturing. When starting a capture the GUI will send the value if different from the default value. The payload is one byte with binary value 0 or 1. Valid Commands: Set value, Enable, Disable. button This provides a button with different roles: control This button will send a signal when pressed. This is the default if no role is configured. The button is only enabled when capturing. The extcap utility can set the button text at startup, and can change (set) the button text and receive button press signals while capturing. The button is disabled and the button text is restored to the default text when not capturing. The payload is either the button text or empty (signal). Valid Commands: Set value, Enable, Disable. logger This provides a logger mechanism where the extcap utility can send log entries to be presented in a log window. This communication is unidirectional. The payload is the log entry, and should be ended with a newline. Maximum length is 65535 bytes. Valid Commands: Set log entry, Add log entry. The Set command will clear the log before adding the entry. help This button opens the help page, if configured. This role has no controls and will not be used in communication. Valid Commands: None. restore This button will restore all control values to default. This role has no controls and will not be used in communication. The button is only enabled when not capturing. Valid Commands: None. selector This provides a combo box with fixed values which can be selected. The extcap utility can set default values at startup, and add and remove values and receive change in value selection while capturing. When starting a capture the GUI will send the value if different from the default value. The payload is a string with the value, and optionally a string with a display value if this is different from the value. This two string values are separated by a null character. Valid Commands: Set selected value, Add value, Remove value, Enable, Disable. If value is empty the Remove command will remove all entries. string This provides a text edit line with the possibility to set a string or any value which can be represented in a string (integer, float, date, etc.). The extcap utility can set a default string value at startup, and can change (set) and receive value changes while capturing. When starting a capture the GUI will send the value if different from the default value. The payload is a string with the value. Maximum length is 32767 bytes. Valid Commands for control: Set value, Enable, Disable. The element VALIDATION allows to provide a regular expression string, which is used to check the user input for validity beyond normal data type or range checks. Back-slashes must be escaped (as in \\b for \b). 8.2.3.2. Messages In addition to the controls it’s possible to send a single message from the extcap utility to the user. This message can be put in the status bar or displayed in a information, warning or error dialog which must be accepted by the user. This message does not use the NUMBER argument so this can have any value. 8.2.3.2.1. Control Protocol The protocol used to communicate over the control pipes has a fixed size header of 6 bytes and a payload with 0 - 65535 bytes. Table 8.1. Control packet:  Sync Pipe Indication (1 byte) Message Length (3 bytes network order) Control Number (1 byte) Command (1 byte) Payload (0 - 65535 bytes) Sync Pipe Indication. The common sync pipe indication. This protocol uses the value “T”. Message Length. Payload length + 2 bytes for control number and command. Control Number. Unique number to identify the control. This number also gives the order of the controls in the interface toolbar. Table 8.2. Commands and application for controls Command Byte Command Name Control type 0 Initialized none 1 Set boolean / button / logger / selector / string 2 Add logger / selector 3 Remove selector 4 Enable boolean / button / selector / string 5 Disable boolean / button / selector / string 6 Statusbar message none 7 Information message none 8 Warning message none 9 Error message none The Initialized command will be sent from the GUI to the extcap utility when all user changed control values are sent after starting a capture. This is an indication that the GUI is ready to receive control values. The GUI will only send Initialized and Set commands. The extcap utility shall not send the Initialized command. Messages with unknown control number or command will be silently ignored. Chapter 9. Packet Dissection 9.1. How packet dissection works Each dissector decodes its part of the protocol and then hands off decoding to subsequent dissectors for an encapsulated protocol. Every dissection starts with the Frame dissector which dissects the details of the capture file itself (e.g. timestamps). From there it passes the data on to the lowest-level data dissector, e.g. the Ethernet dissector for the Ethernet header. The payload is then passed on to the next dissector (e.g. IP) and so on. At each stage, details of the packet are decoded and displayed. Dissectors can either be built-in to Wireshark or written as a self-registering plugin (a shared library or DLL). There is little difference in having your dissector as either a plugin or built-in. You have limited function access through the ABI exposed by functions declared as WS_DLL_PUBLIC. The big benefit of writing a dissector as a plugin is that rebuilding a plugin is much faster than rebuilding wireshark after editing a built-in dissector. As such, starting with a plugin often makes initial development quicker, while the finished code may make more sense as a built-in dissector. Read README.dissector The file doc/README.dissector contains detailed information about writing a dissector. In many cases it is more up to date than this document. 9.2. Adding a basic dissector Let’s step through adding a basic dissector. We’ll start with the made up "foo" protocol. It consists of the following basic items. • A packet type - 8 bits. Possible values: 1 - initialisation, 2 - terminate, 3 - data. • A set of flags stored in 8 bits. 0x01 - start packet, 0x02 - end packet, 0x04 - priority packet. • A sequence number - 16 bits. • An IPv4 address. 9.2.1. Setting up the dissector The first decision you need to make is if this dissector will be a built-in dissector and included in the main program, or a plugin. Plugins are easier to write initially, so let’s start with that. With a little care, the plugin can be converted into a built-in dissector. Dissector Initialisation. #include "config.h" #include <epan/packet.h> #define FOO_PORT 1234 static int proto_foo = -1; void proto_register_foo(void) { proto_foo = proto_register_protocol ( "FOO Protocol", /* name */ "FOO", /* short name */ "foo" /* filter_name */ ); } Let’s go through this a bit at a time. First we have some boilerplate include files. These will be pretty constant to start with. Then a #define for the UDP port that carries foo traffic. Next we have proto_foo, an int that stores our protocol handle and is initialised to -1. This handle will be set when the dissector is registered within the main program. It’s good practice to make all variables and functions that aren’t exported static to minimize name space pollution. This normally isn’t a problem unless your dissector gets so big that it spans multiple files. Now that we have the basics in place to interact with the main program, we’ll start with two protocol dissector setup functions: proto_register_XXX and proto_reg_handoff_XXX. Each protocol must have a register function with the form "proto_register_XXX". This function is used to register the protocol in Wireshark. The code to call the register routines is generated automatically and is called when Wireshark starts. In this example, the function is named proto_register_foo. proto_register_foo calls proto_register_protocol(), which takes a name, short name, and filter_name. The name and short name are used in the "Preferences" and "Enabled protocols" dialogs and the documentation’s generated field name list. The filter_name is used as the display filter name. proto_register_protocol() returns a protocol handle, which can be used to refer to the protocol and obtain a handle to the protocol’s dissector. Next we need a handoff routine. Dissector Handoff. void proto_reg_handoff_foo(void) { static dissector_handle_t foo_handle; foo_handle = create_dissector_handle(dissect_foo, proto_foo); dissector_add_uint("udp.port", FOO_PORT, foo_handle); } A handoff routine associates a protocol handler with the protocol’s traffic. It consists of two major steps: The first step is to create a dissector handle, which is a handle associated with the protocol and the function called to do the actual dissecting. The second step is to register the dissector handle so that traffic associated with the protocol calls the dissector. In this example, proto_reg_handoff_foo() calls create_dissector_handle() to obtain a dissector handle for the foo protocol. It then uses dissector_add_uint() to associate traffic on UDP port FOO_PORT (1234) with the foo protocol, so that Wireshark will call dissect_foo() when it receives UDP traffic on port 1234. Wireshark’s dissector convention is to put proto_register_foo() and proto_reg_handoff_foo() as the last two functions in the dissector source. The next step is to write the dissecting function, dissect_foo(). We’ll start with a basic placeholder. Dissection. static int dissect_foo(tvbuff_t *tvb, packet_info *pinfo, proto_tree *tree _U_, void *data _U_) { col_set_str(pinfo->cinfo, COL_PROTOCOL, "FOO"); /* Clear the info column */ col_clear(pinfo->cinfo,COL_INFO); return tvb_captured_length(tvb); } dissect_foo() is called to dissect the packets presented to it. The packet data is held in a special buffer referenced here as tvb. The packet_info structure contains general data about the protocol and we can update information here. The tree parameter is where the detail dissection takes place. Note that the _U_ following tree and data signals to the compiler that the parameters are unused, so that the compiler does not print a warning. For now we’ll do the minimum we can get away with. col_set_str() is used to set Wireshark’s Protocol column to "FOO" so everyone can see it’s being recognised. The only other thing we do is to clear out any data in the INFO column if it’s being displayed. At this point we have a basic dissector ready to compile and install. The dissector doesn’t do anything other than identify the protocol and label it. Here is the dissector’s complete code: Complete packet-foo.c:. #include "config.h" #include <epan/packet.h> #define FOO_PORT 1234 static int proto_foo = -1; static int dissect_foo(tvbuff_t *tvb, packet_info *pinfo, proto_tree *tree _U_, void *data _U_) { col_set_str(pinfo->cinfo, COL_PROTOCOL, "FOO"); /* Clear the info column */ col_clear(pinfo->cinfo,COL_INFO); return tvb_captured_length(tvb); } void proto_register_foo(void) { proto_foo = proto_register_protocol ( "FOO Protocol", /* name */ "FOO", /* short_name */ "foo" /* filter_name */ ); } void proto_reg_handoff_foo(void) { static dissector_handle_t foo_handle; foo_handle = create_dissector_handle(dissect_foo, proto_foo); dissector_add_uint("udp.port", FOO_PORT, foo_handle); } To compile this dissector and create a plugin a few support files are required, besides the dissector source in packet-foo.c: • CMakeLists.txt - Contains the CMake file and version info for this plugin. • packet-foo.c - Your dissector source. • plugin.rc.in - Contains the DLL resource template for Windows. (optional) Samples of these files are available in the gryphon plugin directory (plugins/epan/gryphon). If you copy the files from the gryphon plugin, CMakeLists.txt will need to be updated with the correct plugin name, version info, and the relevant files to compile. In the main top-level source directory, copy CMakeListsCustom.txt.example to CMakeListsCustom.txt and add the path of your plugin to the list in CUSTOM_PLUGIN_SRC_DIR. Compile the dissector to a DLL or shared library and either run Wireshark from the build directory as detailed in Section 3.7, “Run Your Version Of Wireshark” or copy the plugin binary into the plugin directory of your Wireshark installation and run that. 9.2.2. Dissecting the protocol’s details Now that we have our basic dissector up and running, let’s do something with it. The simplest thing to start with is labeling the payload. We can label the payload by building a subtree to decode our results into. This subtree will hold all the protocol’s details and helps keep things looking nice in the detailed display. We add the new subtree with proto_tree_add_item(), as is depicted below: Plugin Packet Dissection. static int dissect_foo(tvbuff_t *tvb, packet_info *pinfo, proto_tree *tree, void *data _U_) { col_set_str(pinfo->cinfo, COL_PROTOCOL, "FOO"); /* Clear out stuff in the info column */ col_clear(pinfo->cinfo,COL_INFO); proto_item *ti = proto_tree_add_item(tree, proto_foo, tvb, 0, -1, ENC_NA); return tvb_captured_length(tvb); } As the FOO protocol does not encapsulate another protocol, we consume all of the tvb’s data, from 0 to the end (-1). The final parameter specifies the "encoding" and is set to ENC_NA ("not applicable"), as the protocol doesn’t specifically use big endian (ENC_BIG_ENDIAN) or little endian (ENC_LITTLE_ENDIAN). After adding the call to proto_tree_add_item() , there should be a label FOO in the protocol’s detailed display. Selecting this label will highlight the remaining contents of the packet. Now let’s go to the next step and add some protocol dissection. To do this we’ll need to construct tables to define which fields will be present in the packet and to store the opened/closed state of the subtree. We’ll add these statically allocated arrays to the beginning of the file and name them hf_register_info ('hf' is short for 'header field') and ett. The arrays wil then registered after the call to proto_register_protocol() by calling proto_register_field_array() and proto_register_subtree_array(): Registering data structures. static int hf_foo_pdu_type = -1; static gint ett_foo = -1; /* ... */ void proto_register_foo(void) { static hf_register_info hf[] = { { &hf_foo_pdu_type, { "FOO PDU Type", "foo.type", FT_UINT8, BASE_DEC, NULL, 0x0, NULL, HFILL } } }; /* Setup protocol subtree array */ static gint *ett[] = { &ett_foo }; proto_foo = proto_register_protocol ( "FOO Protocol", /* name */ "FOO", /* short_name */ "foo" /* filter_name*/ ); proto_register_field_array(proto_foo, hf, array_length(hf)); proto_register_subtree_array(ett, array_length(ett)); } As you can see, a field foo.type was defined inside the array of header fields. Now we can dissect the FOO PDU Type (referenced as foo.type) field in dissect_foo() by adding the FOO Protocol’s subtree with proto_item_add_subtree() and then calling proto_tree_add_item() to add the field: Dissector starting to dissect the packets.  proto_item *ti = proto_tree_add_item(tree, proto_foo, tvb, 0, -1, ENC_NA); proto_tree *foo_tree = proto_item_add_subtree(ti, ett_foo); proto_tree_add_item(foo_tree, hf_foo_pdu_type, tvb, 0, 1, ENC_BIG_ENDIAN); As mentioned earlier, the foo protocol begins with an 8-bit packet type which can have three possible values: 1 - initialisation, 2 - terminate, 3 - data. Here’s how we can add the packet details: The proto_item_add_subtree() call has added a child node to the protocol tree which is where we will do our detail dissection. The expansion of this node is controlled by the ett_foo variable. This remembers if the node should be expanded or not as you move between packets. All subsequent dissection will be added to this tree, as you can see from the next call. A call to proto_tree_add_item() in the foo_tree, this time using the hf_foo_pdu_type to control the formatting of the item. The pdu type is one byte of data, starting at 0. We assume it is in network order (also called big endian), so that is why we use ENC_BIG_ENDIAN. For a 1-byte quantity, there is no order issue, but it is good practice to make this the same as any multibyte fields that may be present, and as we will see in the next section, this particular protocol uses network order. If we look in detail at the hf_foo_pdu_type declaration in the static array we can see the details of the definition. static hf_register_info hf[] = { { &hf_foo_pdu_type, { "FOO PDU Type", "foo.type", FT_UINT8, BASE_DEC, NULL, 0x0, NULL, HFILL } } }; • hf_foo_pdu_type - The node’s index. • FOO PDU Type - The item’s label. • foo.type - The item’s abbreviated name, for use in the display filter (e.g., foo.type=1). • FT_UINT8 - The item’s type: An 8bit unsigned integer. This tallies with our call above where we tell it to only look at one byte. • BASE_DEC - For an integer type, this tells it to be printed as a decimal number. It could be hexadecimal (BASE_HEX) or octal (BASE_OCT) if that made more sense. We’ll ignore the rest of the structure for now. If you install this plugin and try it out, you’ll see something that begins to look useful. Now let’s finish off dissecting the simple protocol. We need to add a few more variables to the hfarray, and a couple more procedure calls. Wrapping up the packet dissection. ... static int hf_foo_flags = -1; static int hf_foo_sequenceno = -1; static int hf_foo_initialip = -1; ... static int dissect_foo(tvbuff_t *tvb, packet_info *pinfo, proto_tree *tree, void *data _U_) { gint offset = 0; ... proto_item *ti = proto_tree_add_item(tree, proto_foo, tvb, 0, -1, ENC_NA); proto_tree *foo_tree = proto_item_add_subtree(ti, ett_foo); proto_tree_add_item(foo_tree, hf_foo_pdu_type, tvb, offset, 1, ENC_BIG_ENDIAN); offset += 1; proto_tree_add_item(foo_tree, hf_foo_flags, tvb, offset, 1, ENC_BIG_ENDIAN); offset += 1; proto_tree_add_item(foo_tree, hf_foo_sequenceno, tvb, offset, 2, ENC_BIG_ENDIAN); offset += 2; proto_tree_add_item(foo_tree, hf_foo_initialip, tvb, offset, 4, ENC_BIG_ENDIAN); offset += 4; ... return tvb_captured_length(tvb); } void proto_register_foo(void) { ... ... { &hf_foo_flags, { "FOO PDU Flags", "foo.flags", FT_UINT8, BASE_HEX, NULL, 0x0, NULL, HFILL } }, { &hf_foo_sequenceno, { "FOO PDU Sequence Number", "foo.seqn", FT_UINT16, BASE_DEC, NULL, 0x0, NULL, HFILL } }, { &hf_foo_initialip, { "FOO PDU Initial IP", "foo.initialip", FT_IPv4, BASE_NONE, NULL, 0x0, NULL, HFILL } }, ... ... } ... This dissects all the bits of this simple hypothetical protocol. We’ve introduced a new variable offsetinto the mix to help keep track of where we are in the packet dissection. With these extra bits in place, the whole protocol is now dissected. 9.2.3. Improving the dissection information We can certainly improve the display of the protocol with a bit of extra data. The first step is to add some text labels. Let’s start by labeling the packet types. There is some useful support for this sort of thing by adding a couple of extra things. First we add a simple table of type to name. Naming the packet types. static const value_string packettypenames[] = { { 1, "Initialise" }, { 2, "Terminate" }, { 3, "Data" }, { 0, NULL } }; This is a handy data structure that can be used to look up a name for a value. There are routines to directly access this lookup table, but we don’t need to do that, as the support code already has that added in. We just have to give these details to the appropriate part of the data, using the VALS macro. Adding Names to the protocol.  { &hf_foo_pdu_type, { "FOO PDU Type", "foo.type", FT_UINT8, BASE_DEC, VALS(packettypenames), 0x0, NULL, HFILL } } This helps in deciphering the packets, and we can do a similar thing for the flags structure. For this we need to add some more data to the table though. Adding Flags to the protocol. #define FOO_START_FLAG 0x01 #define FOO_END_FLAG 0x02 #define FOO_PRIORITY_FLAG 0x04 static int hf_foo_startflag = -1; static int hf_foo_endflag = -1; static int hf_foo_priorityflag = -1; static int dissect_foo(tvbuff_t *tvb, packet_info *pinfo, proto_tree *tree, void *data _U_) { ... ... static int* const bits[] = { &hf_foo_startflag, &hf_foo_endflag, &hf_foo_priorityflag, NULL }; proto_tree_add_bitmask(foo_tree, tvb, offset, hf_foo_flags, ett_foo, bits, ENC_BIG_ENDIAN); offset += 1; ... ... return tvb_captured_length(tvb); } void proto_register_foo(void) { ... ... { &hf_foo_startflag, { "FOO PDU Start Flags", "foo.flags.start", FT_BOOLEAN, 8, NULL, FOO_START_FLAG, NULL, HFILL } }, { &hf_foo_endflag, { "FOO PDU End Flags", "foo.flags.end", FT_BOOLEAN, 8, NULL, FOO_END_FLAG, NULL, HFILL } }, { &hf_foo_priorityflag, { "FOO PDU Priority Flags", "foo.flags.priority", FT_BOOLEAN, 8, NULL, FOO_PRIORITY_FLAG, NULL, HFILL } }, ... ... } ... Some things to note here. For the flags, as each bit is a different flag, we use the type FT_BOOLEAN, as the flag is either on or off. Second, we include the flag mask in the 7th field of the data, which allows the system to mask the relevant bit. We’ve also changed the 5th field to 8, to indicate that we are looking at an 8 bit quantity when the flags are extracted. Then finally we add the extra constructs to the dissection routine. This is starting to look fairly full featured now, but there are a couple of other things we can do to make things look even more pretty. At the moment our dissection shows the packets as "Foo Protocol" which whilst correct is a little uninformative. We can enhance this by adding a little more detail. First, let’s get hold of the actual value of the protocol type. We can use the handy function tvb_get_guint8() to do this. With this value in hand, there are a couple of things we can do. First we can set the INFO column of the non-detailed view to show what sort of PDU it is - which is extremely helpful when looking at protocol traces. Second, we can also display this information in the dissection window. Enhancing the display. static int dissect_foo(tvbuff_t *tvb, packet_info *pinfo, proto_tree *tree, void *data _U_) { gint offset = 0; guint8 packet_type = tvb_get_guint8(tvb, 0); col_set_str(pinfo->cinfo, COL_PROTOCOL, "FOO"); /* Clear out stuff in the info column */ col_clear(pinfo->cinfo,COL_INFO); col_add_fstr(pinfo->cinfo, COL_INFO, "Type %s", val_to_str(packet_type, packettypenames, "Unknown (0x%02x)")); proto_item *ti = proto_tree_add_item(tree, proto_foo, tvb, 0, -1, ENC_NA); proto_item_append_text(ti, ", Type %s", val_to_str(packet_type, packettypenames, "Unknown (0x%02x)")); proto_tree *foo_tree = proto_item_add_subtree(ti, ett_foo); proto_tree_add_item(foo_tree, hf_foo_pdu_type, tvb, offset, 1, ENC_BIG_ENDIAN); offset += 1; return tvb_captured_length(tvb); } So here, after grabbing the value of the first 8 bits, we use it with one of the built-in utility routines val_to_str(), to lookup the value. If the value isn’t found we provide a fallback which just prints the value in hex. We use this twice, once in the INFO field of the columns — if it’s displayed, and similarly we append this data to the base of our dissecting tree. 9.3. How to add an expert item A dissector showing the protocol fields and interpretation of their values is very informative. It can be even more helpful if the dissector can draw your attention to fields where something noteworthy can be seen. This can be something as simple as the start flag of a session, or something more severe as an invalid value. Here we take our dissector for FOO and add an expert item for the sequence number being zero (assuming that’s a noteworthy thing for this protocol). Expert item setup. #include <epan/expert.h> static expert_field ei_foo_seqn_zero = EI_INIT; /* ... */ void proto_register_foo(void) { /* ... */ expert_module_t* expert_foo; /* ... */ static ei_register_info ei[] = { { &ei_foo_seqn_zero, { "foo.seqn_zero", PI_SEQUENCE, PI_CHAT, "Sequence number is zero", EXPFILL } } }; /* ... */ expert_foo = expert_register_protocol(proto_foo); expert_register_field_array(expert_foo, ei, array_length(ei)); } Let’s go through this step by step. The data structures and functions needed for expert items are found in epan/expert.h, so we have to include that file. Next we have to allocate an expert_field structure for every type of expert item we would like to add to the dissection. This structure is initialised with EI_INIT. Now we have to register with the protocol we are providing expert info for. Since we already have a function to register our protocol, we add the expert info registration there too. This is done by calling expert_register_protocol() with the handle for the protocol we received earlier in this function. Next we need to register an array of definitions of expert items that we would like to add to the dissection. This array, not unlike the array of header fields before, contains all the data the dissection engine needs to create and handle the expert items. The expert item definition consists of a pointer to the expert_field structure we defined before and a structure with data elements of the expert item itself. • "foo.seqn_zero" - The expert items display filter • PI_SEQUENCE - The group to which the expert item belongs • PI_CHAT - The severity of the expert item • "Sequence number is zero" - The text string added to the dissection We’ll ignore the rest of the structure for now. To keep an overview of lots of expert items it helps to categorize them into groups. Currently there are several types of groups defined, e.g. checksum, sequence, protocol, etc. All these are defined in the epan/proto.h header file. Not every noteworthy field value is of equal severity. The start of a session is nice to know, while an invalid value may be significant error in the protocol. To differentiate between these severties the expert item is assigned one of them: comment, chat, note, warn or error. Try to choose the lowest one which is suitable. The topic you’re currently working on seems probably more important than it will look like in a few weeks. With the expert item array setup, we add this to the dissection engine with a call to expert_register_field_array(). Now that all information of the expert item is defined and registered it’s time to actually add the expert item to the dissection. Expert item use. static int dissect_foo(tvbuff_t *tvb, packet_info *pinfo, proto_tree *tree, void *data _U_) { guint32 sequenceno = 0xFFFF; /* ... */ ti = proto_tree_add_item_ret_uint(foo_tree, hf_foo_sequenceno, tvb, offset, 2, ENC_BIG_ENDIAN, &sequenceno); if (sequenceno == 0) { expert_add_info(pinfo, ti, &ei_foo_seqn_zero); } /* ... */ } There’s been a slight alteration to the function used to add the sequence number dissection. First the proto_item created by the function is saved in previously defined variable ti, and the actual value of the field is stored in the variable sequenceno. We can now use the value of this field to determine wether to add the expert item. Adding the expert item is simply done by calling expert_add_info() with reference to the packet_info structure, the proto item ti to add the expert item to and the previously defined and registered expert item information. 9.4. How to handle transformed data Some protocols do clever things with data. They might possibly encrypt the data, or compress data, or part of it. If you know how these steps are taken it is possible to reverse them within the dissector. As encryption can be tricky, let’s consider the case of compression. These techniques can also work for other transformations of data, where some step is required before the data can be examined. What basically needs to happen here, is to identify the data that needs conversion, take that data and transform it into a new stream, and then call a dissector on it. Often this needs to be done "on-the-fly" based on clues in the packet. Sometimes this needs to be used in conjunction with other techniques, such as packet reassembly. The following shows a technique to achieve this effect. Decompressing data packets for dissection.  guint8 flags = tvb_get_guint8(tvb, offset); offset ++; if (flags & FLAG_COMPRESSED) { /* the remainder of the packet is compressed */ guint16 orig_size = tvb_get_ntohs(tvb, offset); guchar *decompressed_buffer = (guchar*)wmem_alloc(pinfo->pool, orig_size); offset += 2; decompress_packet(tvb_get_ptr(tvb, offset, -1), tvb_captured_length_remaining(tvb, offset), decompressed_buffer, orig_size); /* Now re-setup the tvb buffer to have the new data */ next_tvb = tvb_new_child_real_data(tvb, decompressed_buffer, orig_size, orig_size); add_new_data_source(pinfo, next_tvb, "Decompressed Data"); } else { next_tvb = tvb_new_subset_remaining(tvb, offset); } offset = 0; /* process next_tvb from here on */ The first steps here are to recognise the compression. In this case a flag byte alerts us to the fact the remainder of the packet is compressed. Next we retrieve the original size of the packet, which in this case is conveniently within the protocol. If it’s not, it may be part of the compression routine to work it out for you, in which case the logic would be different. So armed with the size, a buffer is allocated to receive the uncompressed data using wmem_alloc() in pinfo→pool memory, and the packet is decompressed into it. The tvb_get_ptr() function is useful to get a pointer to the raw data of the packet from the offset onwards. In this case the decompression routine also needs to know the length, which is given by the tvb_captured_length_remaining() function. Next we build a new tvb buffer from this data, using the tvb_new_child_real_data() call. This data is a child of our original data, so calling this function also acknowledges that. No need to call tvb_set_free_cb() as the pinfo→pool was used (the memory block will be automatically freed when the pinfo pool lifetime expires). Finally we add this tvb as a new data source, so that the detailed display can show the decompressed bytes as well as the original. After this has been set up the remainder of the dissector can dissect the buffer next_tvb, as it’s a new buffer the offset needs to be 0 as we start again from the beginning of this buffer. To make the rest of the dissector work regardless of whether compression was involved or not, in the case that compression was not signaled, we use tvb_new_subset_remaining() to deliver us a new buffer based on the old one but starting at the current offset, and extending to the end. This makes dissecting the packet from this point on exactly the same regardless of compression. 9.5. How to reassemble split packets Some protocols have times when they have to split a large packet across multiple other packets. In this case the dissection can’t be carried out correctly until you have all the data. The first packet doesn’t have enough data, and the subsequent packets don’t have the expect format. To dissect these packets you need to wait until all the parts have arrived and then start the dissection. The following sections will guide you through two common cases. For a description of all possible functions, structures and parameters, see epan/reassemble.h. 9.5.1. How to reassemble split UDP packets As an example, let’s examine a protocol that is layered on top of UDP that splits up its own data stream. If a packet is bigger than some given size, it will be split into chunks, and somehow signaled within its protocol. To deal with such streams, we need several things to trigger from. We need to know that this packet is part of a multi-packet sequence. We need to know how many packets are in the sequence. We also need to know when we have all the packets. For this example we’ll assume there is a simple in-protocol signaling mechanism to give details. A flag byte that signals the presence of a multi-packet sequence and also the last packet, followed by an ID of the sequence and a packet sequence number. msg_pkt ::= SEQUENCE { ..... flags ::= SEQUENCE { fragment BOOLEAN, last_fragment BOOLEAN, ..... } msg_id INTEGER(0..65535), frag_id INTEGER(0..65535), ..... } Reassembling fragments - Part 1. #include <epan/reassemble.h> ... save_fragmented = pinfo->fragmented; flags = tvb_get_guint8(tvb, offset); offset++; if (flags & FL_FRAGMENT) { /* fragmented */ tvbuff_t* new_tvb = NULL; fragment_data *frag_msg = NULL; guint16 msg_seqid = tvb_get_ntohs(tvb, offset); offset += 2; guint16 msg_num = tvb_get_ntohs(tvb, offset); offset += 2; pinfo->fragmented = TRUE; frag_msg = fragment_add_seq_check(msg_reassembly_table, tvb, offset, pinfo, msg_seqid, NULL, /* ID for fragments belonging together */ msg_num, /* fragment sequence number */ tvb_captured_length_remaining(tvb, offset), /* fragment length - to the end */ flags & FL_FRAG_LAST); /* More fragments? */ We start by saving the fragmented state of this packet, so we can restore it later. Next comes some protocol specific stuff, to dig the fragment data out of the stream if it’s present. Having decided it is present, we let the function fragment_add_seq_check() do its work. We need to provide this with a certain amount of parameters: • The msg_reassembly_table table is for bookkeeping and is described later. • The tvb buffer we are dissecting. • The offset where the partial packet starts. • The provided packet info. • The sequence number of the fragment stream. There may be several streams of fragments in flight, and this is used to key the relevant one to be used for reassembly. • Optional additional data for identifying the fragment. Can be set to NULL (as is done in the example) for most dissectors. • msg_num is the packet number within the sequence. • The length here is specified as the rest of the tvb as we want the rest of the packet data. • Finally a parameter that signals if this is the last fragment or not. This might be a flag as in this case, or there may be a counter in the protocol. Reassembling fragments part 2.  new_tvb = process_reassembled_data(tvb, offset, pinfo, "Reassembled Message", frag_msg, &msg_frag_items, NULL, msg_tree); if (frag_msg) { /* Reassembled */ col_append_str(pinfo->cinfo, COL_INFO, " (Message Reassembled)"); } else { /* Not last packet of reassembled Short Message */ col_append_fstr(pinfo->cinfo, COL_INFO, " (Message fragment %u)", msg_num); } if (new_tvb) { /* take it all */ next_tvb = new_tvb; } else { /* make a new subset */ next_tvb = tvb_new_subset_remaining(tvb, offset); } } else { /* Not fragmented */ next_tvb = tvb_new_subset_remaining(tvb, offset); } ..... pinfo->fragmented = save_fragmented; Having passed the fragment data to the reassembly handler, we can now check if we have the whole message. If there is enough information, this routine will return the newly reassembled data buffer. After that, we add a couple of informative messages to the display to show that this is part of a sequence. Then a bit of manipulation of the buffers and the dissection can proceed. Normally you will probably not bother dissecting further unless the fragments have been reassembled as there won’t be much to find. Sometimes the first packet in the sequence can be partially decoded though if you wish. Now the mysterious data we passed into the fragment_add_seq_check(). Reassembling fragments - Initialisation. static reassembly_table reassembly_table; static void proto_register_msg(void) { reassembly_table_register(&msg_reassemble_table, &addresses_ports_reassembly_table_functions); } First a reassembly_table structure is declared and initialised in the protocol initialisation routine. The second parameter specifies the functions that should be used for identifying fragments. We will use addresses_ports_reassembly_table_functions in order to identify fragments by the given sequence number (msg_seqid), the source and destination addresses and ports from the packet. Following that, a fragment_items structure is allocated and filled in with a series of ett items, hf data items, and a string tag. The ett and hf values should be included in the relevant tables like all the other variables your protocol may use. The hf variables need to be placed in the structure something like the following. Of course the names may need to be adjusted. Reassembling fragments - Data. ... static int hf_msg_fragments = -1; static int hf_msg_fragment = -1; static int hf_msg_fragment_overlap = -1; static int hf_msg_fragment_overlap_conflicts = -1; static int hf_msg_fragment_multiple_tails = -1; static int hf_msg_fragment_too_long_fragment = -1; static int hf_msg_fragment_error = -1; static int hf_msg_fragment_count = -1; static int hf_msg_reassembled_in = -1; static int hf_msg_reassembled_length = -1; ... static gint ett_msg_fragment = -1; static gint ett_msg_fragments = -1; ... static const fragment_items msg_frag_items = { /* Fragment subtrees */ &ett_msg_fragment, &ett_msg_fragments, /* Fragment fields */ &hf_msg_fragments, &hf_msg_fragment, &hf_msg_fragment_overlap, &hf_msg_fragment_overlap_conflicts, &hf_msg_fragment_multiple_tails, &hf_msg_fragment_too_long_fragment, &hf_msg_fragment_error, &hf_msg_fragment_count, /* Reassembled in field */ &hf_msg_reassembled_in, /* Reassembled length field */ &hf_msg_reassembled_length, /* Tag */ "Message fragments" }; ... static hf_register_info hf[] = { ... {&hf_msg_fragments, {"Message fragments", "msg.fragments", FT_NONE, BASE_NONE, NULL, 0x00, NULL, HFILL } }, {&hf_msg_fragment, {"Message fragment", "msg.fragment", FT_FRAMENUM, BASE_NONE, NULL, 0x00, NULL, HFILL } }, {&hf_msg_fragment_overlap, {"Message fragment overlap", "msg.fragment.overlap", FT_BOOLEAN, 0, NULL, 0x00, NULL, HFILL } }, {&hf_msg_fragment_overlap_conflicts, {"Message fragment overlapping with conflicting data", "msg.fragment.overlap.conflicts", FT_BOOLEAN, 0, NULL, 0x00, NULL, HFILL } }, {&hf_msg_fragment_multiple_tails, {"Message has multiple tail fragments", "msg.fragment.multiple_tails", FT_BOOLEAN, 0, NULL, 0x00, NULL, HFILL } }, {&hf_msg_fragment_too_long_fragment, {"Message fragment too long", "msg.fragment.too_long_fragment", FT_BOOLEAN, 0, NULL, 0x00, NULL, HFILL } }, {&hf_msg_fragment_error, {"Message defragmentation error", "msg.fragment.error", FT_FRAMENUM, BASE_NONE, NULL, 0x00, NULL, HFILL } }, {&hf_msg_fragment_count, {"Message fragment count", "msg.fragment.count", FT_UINT32, BASE_DEC, NULL, 0x00, NULL, HFILL } }, {&hf_msg_reassembled_in, {"Reassembled in", "msg.reassembled.in", FT_FRAMENUM, BASE_NONE, NULL, 0x00, NULL, HFILL } }, {&hf_msg_reassembled_length, {"Reassembled length", "msg.reassembled.length", FT_UINT32, BASE_DEC, NULL, 0x00, NULL, HFILL } }, ... static gint *ett[] = { ... &ett_msg_fragment, &ett_msg_fragments ... These hf variables are used internally within the reassembly routines to make useful links, and to add data to the dissection. It produces links from one packet to another, such as a partial packet having a link to the fully reassembled packet. Likewise there are back pointers to the individual packets from the reassembled one. The other variables are used for flagging up errors. 9.5.2. How to reassemble split TCP Packets A dissector gets a tvbuff_t pointer which holds the payload of a TCP packet. This payload contains the header and data of your application layer protocol. When dissecting an application layer protocol you cannot assume that each TCP packet contains exactly one application layer message. One application layer message can be split into several TCP packets. You also cannot assume that a TCP packet contains only one application layer message and that the message header is at the start of your TCP payload. More than one messages can be transmitted in one TCP packet, so that a message can start at an arbitrary position. This sounds complicated, but there is a simple solution. tcp_dissect_pdus() does all this tcp packet reassembling for you. This function is implemented in epan/dissectors/packet-tcp.h. Reassembling TCP fragments. #include "config.h" #include <epan/packet.h> #include <epan/prefs.h> #include "packet-tcp.h" ... #define FRAME_HEADER_LEN 8 /* This method dissects fully reassembled messages */ static int dissect_foo_message(tvbuff_t *tvb, packet_info *pinfo _U_, proto_tree *tree _U_, void *data _U_) { /* TODO: implement your dissecting code */ return tvb_captured_length(tvb); } /* determine PDU length of protocol foo */ static guint get_foo_message_len(packet_info *pinfo _U_, tvbuff_t *tvb, int offset, void *data _U_) { /* TODO: change this to your needs */ return (guint)tvb_get_ntohl(tvb, offset+4); /* e.g. length is at offset 4 */ } /* The main dissecting routine */ static int dissect_foo(tvbuff_t *tvb, packet_info *pinfo, proto_tree *tree, void *data) { tcp_dissect_pdus(tvb, pinfo, tree, TRUE, FRAME_HEADER_LEN, get_foo_message_len, dissect_foo_message, data); return tvb_captured_length(tvb); } ... As you can see this is really simple. Just call tcp_dissect_pdus() in your main dissection routine and move you message parsing code into another function. This function gets called whenever a message has been reassembled. The parameters tvb, pinfo, tree and data are just handed over to tcp_dissect_pdus(). The 4th parameter is a flag to indicate if the data should be reassembled or not. This could be set according to a dissector preference as well. Parameter 5 indicates how much data has at least to be available to be able to determine the length of the foo message. Parameter 6 is a function pointer to a method that returns this length. It gets called when at least the number of bytes given in the previous parameter is available. Parameter 7 is a function pointer to your real message dissector. Parameter 8 is the data passed in from parent dissector. Protocols which need more data before the message length can be determined can return zero. Other values smaller than the fixed length will result in an exception. 9.6. How to tap protocols Adding a Tap interface to a protocol allows it to do some useful things. In particular you can produce protocol statistics from the tap interface. A tap is basically a way of allowing other items to see what’s happening as a protocol is dissected. A tap is registered with the main program, and then called on each dissection. Some arbitrary protocol specific data is provided with the routine that can be used. To create a tap, you first need to register a tap. A tap is registered with an integer handle, and registered with the routine register_tap(). This takes a string name with which to find it again. Initialising a tap. #include <epan/packet.h> #include <epan/tap.h> static int foo_tap = -1; struct FooTap { gint packet_type; gint priority; ... }; void proto_register_foo(void) { ... foo_tap = register_tap("foo"); Whilst you can program a tap without protocol specific data, it is generally not very useful. Therefore it’s a good idea to declare a structure that can be passed through the tap. This needs to be a static structure as it will be used after the dissection routine has returned. It’s generally best to pick out some generic parts of the protocol you are dissecting into the tap data. A packet type, a priority or a status code maybe. The structure really needs to be included in a header file so that it can be included by other components that want to listen in to the tap. Once you have these defined, it’s simply a case of populating the protocol specific structure and then calling tap_queue_packet, probably as the last part of the dissector. Calling a protocol tap. static int dissect_foo(tvbuff_t *tvb, packet_info *pinfo, proto_tree *tree, void *data _U_) { ... fooinfo = wmem_alloc(pinfo->pool, sizeof(struct FooTap)); fooinfo->packet_type = tvb_get_guint8(tvb, 0); fooinfo->priority = tvb_get_ntohs(tvb, 8); ... tap_queue_packet(foo_tap, pinfo, fooinfo); return tvb_captured_length(tvb); } This now enables those interested parties to listen in on the details of this protocol conversation. 9.7. How to produce protocol stats Given that you have a tap interface for the protocol, you can use this to produce some interesting statistics (well presumably interesting!) from protocol traces. This can be done in a separate plugin, or in the same plugin that is doing the dissection. The latter scheme is better, as the tap and stats module typically rely on sharing protocol specific data, which might get out of step between two different plugins. Here is a mechanism to produce statistics from the above TAP interface. Initialising a stats interface. #include <epan/stats_tree.h> /* register all http trees */ static void register_foo_stat_trees(void) { stats_tree_register_plugin("foo", "foo", "Foo/Packet Types", 0, foo_stats_tree_packet, foo_stats_tree_init, NULL); } WS_DLL_PUBLIC_DEF void plugin_register_tap_listener(void) { register_foo_stat_trees(); } Working from the bottom up, first the plugin interface entry point is defined, plugin_register_tap_listener(). This simply calls the initialisation function register_foo_stat_trees(). This in turn calls the stats_tree_register_plugin() function, which takes three strings, an integer, and three callback functions. 1. This is the tap name that is registered. 2. An abbreviation of the stats name. 3. The name of the stats module. A “/” character can be used to make sub menus. 4. Flags for per-packet callback 5. The function that will called to generate the stats. 6. A function that can be called to initialise the stats data. 7. A function that will be called to clean up the stats data. In this case we only need the first two functions, as there is nothing specific to clean up. Initialising a stats session. static const guint8* st_str_packets = "Total Packets"; static const guint8* st_str_packet_types = "FOO Packet Types"; static int st_node_packets = -1; static int st_node_packet_types = -1; static void foo_stats_tree_init(stats_tree* st) { st_node_packets = stats_tree_create_node(st, st_str_packets, 0, STAT_DT_INT, TRUE); st_node_packet_types = stats_tree_create_pivot(st, st_str_packet_types, st_node_packets); } In this case we create a new tree node, to handle the total packets, and as a child of that we create a pivot table to handle the stats about different packet types. Generating the stats. static tap_packet_status foo_stats_tree_packet(stats_tree* st, packet_info* pinfo, epan_dissect_t* edt, const void* p, tap_flags_t flags) { struct FooTap *pi = (struct FooTap *)p; tick_stat_node(st, st_str_packets, 0, FALSE); stats_tree_tick_pivot(st, st_node_packet_types, val_to_str(pi->packet_type, packettypenames, "Unknown packet type (%d)")); return TAP_PACKET_REDRAW; } In this case the processing of the stats is quite simple. First we call the tick_stat_node for the st_str_packets packet node, to count packets. Then a call to stats_tree_tick_pivot() on the st_node_packet_types subtree allows us to record statistics by packet type. 9.8. How to use conversations Some info about how to use conversations in a dissector can be found in the file doc/README.dissector, chapter 2.2. 9.9. idl2wrs: Creating dissectors from CORBA IDL files Many of Wireshark’s dissectors are automatically generated. This section shows how to generate one from a CORBA IDL file. 9.9.1. What is it? As you have probably guessed from the name, idl2wrs takes a user specified IDL file and attempts to build a dissector that can decode the IDL traffic over GIOP. The resulting file is “C” code, that should compile okay as a Wireshark dissector. idl2wrs parses the data struct given to it by the omniidl compiler, and using the GIOP API available in packet-giop.[ch], generates get_CDR_xxx calls to decode the CORBA traffic on the wire. It consists of 4 main files. README.idl2wrs This document wireshark_be.py The main compiler backend wireshark_gen.py A helper class, that generates the C code. idl2wrs A simple shell script wrapper that the end user should use to generate the dissector from the IDL file(s). 9.9.2. Why do this? It is important to understand what CORBA traffic looks like over GIOP/IIOP, and to help build a tool that can assist in troubleshooting CORBA interworking. This was especially the case after seeing a lot of discussions about how particular IDL types are represented inside an octet stream. I have also had comments/feedback that this tool would be good for say a CORBA class when teaching students what CORBA traffic looks like “on the wire”. It is also COOL to work on a great Open Source project such as the case with “Wireshark” (https://www.wireshark.org/). 9.9.3. How to use idl2wrs To use the idl2wrs to generate Wireshark dissectors, you need the following: • Python must be installed. See https://python.org/ • omniidl from the omniORB package must be available. See http://omniorb.sourceforge.net/ • Of course you need Wireshark installed to compile the code and tweak it if required. idl2wrs is part of the standard Wireshark distribution To use idl2wrs to generate an Wireshark dissector from an idl file use the following procedure: • To write the C code to stdout. $ idl2wrs <your_file.idl>

e.g.:

$idl2wrs echo.idl • To write to a file, just redirect the output. $ idl2wrs echo.idl > packet-test-idl.c

You may wish to comment out the register_giop_user_module() code and that will leave you with heuristic dissection.

If you don’t want to use the shell script wrapper, then try steps 3 or 4 instead.

• To write the C code to stdout.

$omniidl -p ./ -b wireshark_be <your file.idl> e.g.: $ omniidl  -p ./ -b wireshark_be echo.idl
• To write to a file, just redirect the output.

$omniidl -p ./ -b wireshark_be echo.idl > packet-test-idl.c You may wish to comment out the register_giop_user_module() code and that will leave you with heuristic dissection. • Copy the resulting C code to subdirectory epan/dissectors/ inside your Wireshark source directory. $ cp packet-test-idl.c /dir/where/wireshark/lives/epan/dissectors/

The new dissector has to be added to CMakeLists.txt in the same directory. Look for the declaration DISSECTOR_SRC and add the new dissector there. For example,

DISSECTOR_SRC = \
${CMAKE_CURRENT_SOURCE_DIR}/packet-2dparityfec.c${CMAKE_CURRENT_SOURCE_DIR}/packet-3com-njack.c
...

becomes

DISSECTOR_SRC = \
${CMAKE_CURRENT_SOURCE_DIR}/packet-test-idl.c \${CMAKE_CURRENT_SOURCE_DIR}/packet-2dparityfec.c    \
${CMAKE_CURRENT_SOURCE_DIR}/packet-3com-njack.c \ ... For the next steps, go up to the top of your Wireshark source directory. • Create a build dir $ mkdir build && cd build
• Run cmake

$cmake .. • Build the code $ make
• Good Luck !!

9.9.4. TODO

• Exception code not generated (yet), but can be added manually.
• Enums not converted to symbolic values (yet), but can be added manually.
• Add command line options etc
• More I am sure :-)

9.9.5. Limitations

See the TODO list inside packet-giop.c

9.9.6. Notes

The -p ./ option passed to omniidl indicates that the wireshark_be.py and wireshark_gen.py are residing in the current directory. This may need tweaking if you place these files somewhere else.

If it complains about being unable to find some modules (e.g. tempfile.py), you may want to check if PYTHONPATH is set correctly.

10.1. Introduction

Lua is a powerful light-weight programming language designed for extending applications. Wireshark contains an embedded Lua 5.2 interpreter which can be used to write dissectors, taps, and capture file readers and writers.

Wireshark’s Lua interpreter starts by loading a file named init.lua from Wireshark’s global configuration directory. The global configuration directory's init.lua controls whether or not Lua scripts are enabled via the enable_lua variable. Lua scripts are enabled by default. To disable Lua scripts, set the enable_lua variable to false. Wireshark 2.6 and earlier enabled or disabled Lua scripts using the variable disable_lua (deprecated). If both enable_lua and disable_lua are present, disable_lua is ignored.

If Lua is enabled, Wireshark will try to load a file named init.lua from the user’s personal configuration directory and all files ending with .lua in the global and the personal plugins directory.

The command line option -X lua_script:file.lua can also be used to load specific Lua scripts.

The Lua code is executed after all protocol dissectors are initialized and before reading any file.

Wireshark for Windows uses a modified Lua runtime (lua-unicode) to support Unicode (UTF-8) filesystem paths. This brings consistency with other platforms (for example, Linux and macOS).

10.2. Example: Creating a Menu with Lua

The code below adds a menu "Lua Dialog Test" under the Tools menu. When selected, it opens a dialog prompting the user for input and then opens a text window with the output.

-- Define the menu entry's callback
local function dialog_func(person,eyes,hair)
local window = TextWindow.new("Person Info");
local message = string.format("Person %s with %s eyes and %s hair.", person, eyes, hair);
window:set(message);
end

new_dialog("Dialog Test",dialog_func,"A Person","Eyes","Hair")
end

-- Notify the user that the menu was created
if gui_enabled() then
local splash = TextWindow.new("Hello!");
splash:set("Wireshark has been enhanced with a useless feature.\n")
splash:append("Go to 'Tools->Lua Dialog Test' and check it out!")
end

10.3. Example: Dissector written in Lua

local p_multi = Proto("multi", "MultiProto");

local vs_protos = {
[2] = "mtp2",
[3] = "mtp3",
[4] = "alcap",
[5] = "h248",
[6] = "ranap",
[7] = "rnsap",
[8] = "nbap"
}

local f_proto = ProtoField.uint8("multi.protocol", "Protocol", base.DEC, vs_protos)
local f_dir = ProtoField.uint8("multi.direction", "Direction", base.DEC, { [1] = "incoming", [0] = "outgoing"})
local f_text = ProtoField.string("multi.text", "Text")

p_multi.fields = { f_proto, f_dir, f_text }

local data_dis = Dissector.get("data")

local protos = {
[2] = Dissector.get("mtp2"),
[3] = Dissector.get("mtp3"),
[4] = Dissector.get("alcap"),
[5] = Dissector.get("h248"),
[6] = Dissector.get("ranap"),
[7] = Dissector.get("rnsap"),
[8] = Dissector.get("nbap"),
[9] = Dissector.get("rrc"),
[10] = DissectorTable.get("sctp.ppi"):get_dissector(3), -- m3ua
[11] = DissectorTable.get("ip.proto"):get_dissector(132), -- sctp
}

function p_multi.dissector(buf, pkt, tree)

local proto_id = buf(0,1):uint()

local dissector = protos[proto_id]

if dissector ~= nil then
-- Dissector was found, invoke subdissector with a new Tvb,
-- created from the current buffer (skipping first two bytes).
dissector:call(buf(2):tvb(), pkt, tree)
elseif proto_id < 2 then
-- pkt.cols.info:set(buf(2, buf:len() - 3):string())
else
-- fallback dissector that just shows the raw data.
data_dis:call(buf(2):tvb(), pkt, tree)
end

end

local wtap_encap_table = DissectorTable.get("wtap_encap")
local udp_encap_table = DissectorTable.get("udp.port")

udp_encap_table:add(7555, p_multi)

10.4. Example: Listener written in Lua

-- This program will register a menu that will open a window with a count of occurrences
-- of every address in the capture

-- Declare the window we will use

-- This will contain a hash of counters of appearances of a certain address
local ips = {}

-- this is our tap
local tap = Listener.new();

local function remove()
-- this way we remove the listener that otherwise will remain running indefinitely
tap:remove();
end

-- we tell the window to call the remove() function when closed
tw:set_atclose(remove)

-- this function will be called once for each packet
function tap.packet(pinfo,tvb)
local src = ips[tostring(pinfo.src)] or 0
local dst = ips[tostring(pinfo.dst)] or 0

ips[tostring(pinfo.src)] = src + 1
ips[tostring(pinfo.dst)] = dst + 1
end

-- this function will be called once every few seconds to update our window
function tap.draw(t)
tw:clear()
for ip,num in pairs(ips) do
tw:append(ip .. "\t" .. num .. "\n");
end
end

-- this function will be called whenever a reset is needed
function tap.reset()
tw:clear()
ips = {}
end

-- Ensure that all existing packets are processed.
retap_packets()
end

-- using this function we register our function
-- to be called when the user selects the Tools->Test->Packets menu
register_menu("Test/Packets", menuable_tap, MENU_TOOLS_UNSORTED)

Chapter 11. Wireshark’s Lua API Reference Manual

This Part of the User Guide describes the Wireshark specific functions in the embedded Lua.

Classes group certain functionality, the following notational conventions are used:

• Class.function() represents a class method (named function) on class Class, taking no arguments.
• Class.function(a) represents a class method taking one argument.
• Class.function(…​) represents a class method taking a variable number of arguments.
• class:method() represents an instance method (named method) on an instance of class Class, taking no arguments. Note the lowercase notation in the documentation to clarify an instance.
• class.prop represents a property prop on the instance of class Class.

Trying to access a non-existing property, function or method currently gives an error, but do not rely on it as the behavior may change in the future.

11.1. Utility Functions

11.1.1. Global Functions

11.1.1.1. get_version()

Gets the Wireshark version as a string.

Returns

The version string, e.g. "3.2.5".

11.1.1.2. set_plugin_info(table)

Set a Lua table with meta-data about the plugin, such as version.

The passed-in Lua table entries need to be keyed/indexed by the following:

• "version" with a string value identifying the plugin version (required)
• "description" with a string value describing the plugin (optional)
• "author" with a string value of the author’s name(s) (optional)
• "repository" with a string value of a URL to a repository (optional)

Not all of the above key entries need to be in the table. The 'version' entry is required, however. The others are not currently used for anything, but might be in the future and thus using them might be useful. Table entries keyed by other strings are ignored, and do not cause an error.

11.1.1.3. Example

    local my_info = {
version = "1.0.1",
author = "Jane Doe",
repository = "https://github.com/octocat/Spoon-Knife"
}

set_plugin_info(my_info)

Since: 1.99.8

Arguments
table
The Lua table of information.

11.1.1.4. format_date(timestamp)

Formats an absolute timestamp into a human readable date.

Arguments
timestamp
A timestamp value to convert.
Returns

A string with the formated date

11.1.1.5. format_time(timestamp)

Formats a relative timestamp in a human readable time.

Arguments
timestamp
A timestamp value to convert.
Returns

A string with the formated time

11.1.1.6. get_preference(preference)

Get a preference value. @since 3.5.0

Arguments
preference
The name of the preference.

11.1.1.7. set_preference(preference, value)

Set a preference value. @since 3.5.0

Arguments
preference
The name of the preference.
value
The preference value to set.

11.1.1.8. reset_preference(preference)

Reset a preference to default value. @since 3.5.0

Arguments
preference
The name of the preference.
Returns

true if valid preference

11.1.1.9. apply_preferences()

Write preferences to file and apply changes. @since 3.5.0

11.1.1.10. report_failure(text)

Reports a failure to the user.

Arguments
text
Message text to report.

Loads a Lua file and compiles it into a Lua chunk, similar to the standard loadfile but searches additional directories. The search order is the current directory, followed by the user’s personal configuration directory, and finally the global configuration directory.

11.1.1.12. Example

    -- Assume foo.lua contains definition for foo(a,b). Load the chunk
-- from the file and execute it to add foo(a,b) to the global table.
-- These two lines are effectively the same as dofile('foo.lua').

-- ok to call foo at this point
foo(1,2)
Arguments
filename
Name of the file to be loaded. If the file does not exist in the current directory, the user and system directories are searched.

11.1.1.13. dofile(filename)

Loads a Lua file and executes it as a Lua chunk, similar to the standard dofile but searches additional directories. The search order is the current directory, followed by the user’s personal configuration directory, and finally the global configuration directory.

Arguments
filename
Name of the file to be run. If the file does not exist in the current directory, the user and system directories are searched.

11.1.1.14. register_stat_cmd_arg(argument, [action])

Register a function to handle a -z option

Arguments
argument
The name of the option argument.
action (optional)
The function to be called when the command is invoked.

11.2. GUI Support

11.2.1. ProgDlg

Creates and manages a modal progress bar. This is intended to be used with coroutines, where a main UI thread controls the progress bar dialog while a background coroutine (worker thread) yields to the main thread between steps. The main thread checks the status of the button and if it’s not set, returns control to the coroutine.

The legacy (GTK+) user interface displayed this as a separate dialog, hence the “Dlg” suffix. The Qt user interface shows a progress bar inside the main status bar.

Creates and displays a new ProgDlg progress bar with a button and optional title. It is highly recommended that you wrap code that uses a ProgDlg instance because it does not automatically close itself upon encountering an error. Requires a GUI.

11.2.1.2. Example

    if not gui_enabled() then return end

local p = ProgDlg.new("Constructing", "tacos")

-- We have to wrap the ProgDlg code in a pcall in case some unexpected
-- error occurs.
local ok, errmsg = pcall(function()
local co = coroutine.create(
function()
local limit = 100000
for i=1,limit do
print("co", i)
coroutine.yield(i/limit, "step "..i.." of "..limit)
end
end
)

-- Whenever coroutine yields, check the status of the cancel button to determine
-- when to break. Wait up to 20 sec for coroutine to finish.
local start_time = os.time()
local elapsed = os.time() - start_time

-- Quit if cancel button pressed or 20 seconds elapsed
if p:stopped() or elapsed > 20 then
break
end

local res, val, val2 = coroutine.resume(co)
if not res or res == false then
if val then
debug(val)
end
print('coroutine error')
break
end

-- show progress in progress dialog
p:update(val, val2)
end
end)

p:close()

if not ok and errmsg then
report_failure(errmsg)
end
Arguments
title (optional)
Title of the progress bar. Defaults to "Progress".
Optional task name, which will be appended to the title. Defaults to the empty string ("").
Returns

The newly created ProgDlg object.

Sets the progress dialog’s progress bar position based on percentage done.

Arguments
progress
Progress value, e.g. 0.75. Value must be between 0.0 and 1.0 inclusive.
Task name. Currently ignored. Defaults to empty string ("").
Errors
• GUI not available
• Cannot be called for something not a ProgDlg
• Progress value out of range (must be between 0.0 and 1.0)

11.2.1.4. progdlg:stopped()

Checks whether the user has pressed the button.

Returns

Boolean true if the user has asked to stop the operation, false otherwise.

11.2.1.5. progdlg:close()

Hides the progress bar.

Returns

A string specifying whether the Progress Dialog has stopped or not.

Errors
• GUI not available

11.2.2. TextWindow

Creates and manages a text window. The text can be read-only or editable, and buttons can be added below the text.

11.2.2.1. TextWindow.new([title])

Creates a new TextWindow text window and displays it. Requires a GUI.

11.2.2.2. Example

    if not gui_enabled() then return end

-- create new text window and initialize its text
local win = TextWindow.new("Log")
win:set("Hello world!")

-- add buttons to clear text window and to enable editing

-- add button to change text to uppercase
local text = win:get_text()
if text ~= "" then
win:set(string.upper(text))
end
end)

-- print "closing" to stdout when the user closes the text windw
win:set_atclose(function() print("closing") end)
Arguments
title (optional)
Title of the new window. Optional. Defaults to "Untitled Window".
Returns

The newly created TextWindow object.

Errors
• GUI not available

11.2.2.3. textwindow:set_atclose(action)

Set the function that will be called when the text window closes.

Arguments
action
A Lua function to be executed when the user closes the text window.
Returns

The TextWindow object.

Errors
• GUI not available

11.2.2.4. textwindow:set(text)

Sets the text to be displayed.

Arguments
text
The text to be displayed.
Returns

The TextWindow object.

Errors
• GUI not available

11.2.2.5. textwindow:append(text)

Appends text to the current window contents.

Arguments
text
The text to be appended.
Returns

The TextWindow object.

Errors
• GUI not available

11.2.2.6. textwindow:prepend(text)

Prepends text to the current window contents.

Arguments
text
The text to be prepended.
Returns

The TextWindow object.

Errors
• GUI not available

11.2.2.7. textwindow:clear()

Erases all of the text in the window.

Returns

The TextWindow object.

Errors
• GUI not available

11.2.2.8. textwindow:get_text()

Get the text of the window.

Returns

The TextWindow's text.

Errors
• GUI not available

11.2.2.9. textwindow:close()

Close the window.

Errors
• GUI not available

11.2.2.10. textwindow:set_editable([editable])

Make this text window editable.

Arguments
editable (optional)
true to make the text editable, false otherwise. Defaults to true.
Returns

The TextWindow object.

Errors
• GUI not available

Adds a button with an action handler to the text window.

Arguments
label
The button label.
function
The Lua function to be called when the button is pressed.
Returns

The TextWindow object.

Errors
• GUI not available

11.2.3. Global Functions

11.2.3.1. gui_enabled()

Checks if we’re running inside a GUI (i.e. Wireshark) or not.

Returns

Boolean true if a GUI is available, false if it isn’t.

Register a menu item in one of the main menus. Requires a GUI.

Arguments
name
The name of the menu item. Use slashes to separate submenus. (e.g. Lua ScriptsMy Fancy Statistics). (string)
action
The function to be called when the menu item is invoked. The function must take no arguments and return nothing.
group (optional)

Where to place the item in the menu hierarchy. If omitted, defaults to MENU_STAT_GENERIC. Valid packet (Wireshark) items are:

• MENU_STAT_RSERPOOL = StatisticsReliable Server Pooling (RSerPool)

Valid log (Logray) items are:

The following are deprecated and shouldn’t be used in new code:

11.2.3.3. new_dialog(title, action, …​)

Displays a dialog, prompting for input. The dialog includes an button and button. Requires a GUI.

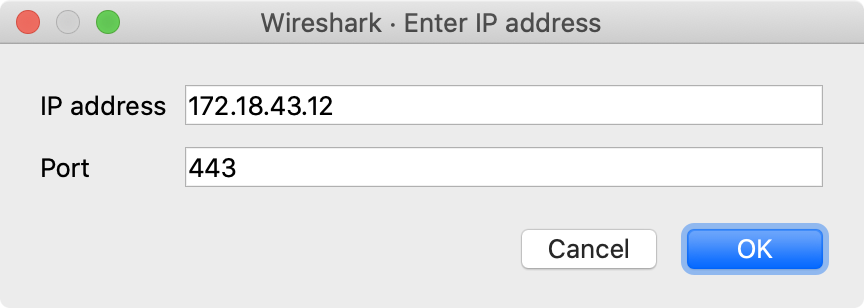

11.2.3.4. Example

    if not gui_enabled() then return end

-- Prompt for IP and port and then print them to stdout
local label_port = "Port"
local function print_ip(ip, port)
print(label_ip, ip)
print(label_port, port)
end
new_dialog("Enter IP address", print_ip, label_ip, label_port)

-- Prompt for 4 numbers and then print their product to stdout
new_dialog(
"Enter 4 numbers",
function (a, b, c, d) print(a * b * c * d) end,
"a", "b", "c", "d"
)
Arguments
title
The title of the dialog.
action
Action to be performed when the user presses .
…​
Strings to be used a labels of the dialog’s fields. Each string creates a new labeled field. The first field is required. Instead of a strings it is possible to provide tables with fields 'name' and 'value' of type string. Then the created dialog’s field will labeld with the content of name and prefilled with the content of value.
Errors
• GUI not available
• At least one field required

11.2.3.5. retap_packets()

Rescans all packets and runs each tap listener without reconstructing the display.

11.2.3.6. copy_to_clipboard(text)

Copy a string into the clipboard. Requires a GUI.

Arguments
text
The string to be copied into the clipboard.

11.2.3.7. open_capture_file(filename, filter)

Open and display a capture file. Requires a GUI.

Arguments
filename
The name of the file to be opened.
filter
The display filter to be applied once the file is opened.

11.2.3.8. get_filter()

Get the main filter text.

11.2.3.9. set_filter(text)

Set the main filter text.

Arguments
text
The filter’s text.

11.2.3.10. get_color_filter_slot(row)

Gets the current packet coloring rule (by index) for the current session. Wireshark reserves 10 slots for these coloring rules. Requires a GUI.

Arguments
row
The index (1-10) of the desired color filter value in the temporary coloring rules list.

Table 11.1. Default background colors

Index RGB (hex) Color

1

ffc0c0

pink 1

2

ffc0ff

pink 2

3

e0c0e0

purple 1

4

c0c0ff

purple 2

5

c0e0e0

green 1

6

c0ffff

green 2

7

c0ffc0

green 3

8

ffffc0

yellow 1

9

e0e0c0

yellow 2

10

e0e0e0

gray

11.2.3.11. set_color_filter_slot(row, text)

Sets a packet coloring rule (by index) for the current session. Wireshark reserves 10 slots for these coloring rules. Requires a GUI.

Arguments
row
The index (1-10) of the desired color in the temporary coloring rules list. The default foreground is black and the default backgrounds are listed below.

Table 11.2. Default background colors

Index RGB (hex) Color

1

ffc0c0

pink 1

2

ffc0ff

pink 2

3

e0c0e0

purple 1

4

c0c0ff

purple 2

5

c0e0e0

green 1

6

c0ffff

green 2

7

c0ffc0

green 3

8

ffffc0

yellow 1

9

e0e0c0

yellow 2

10

e0e0e0

gray

The color list can be set from the command line using two unofficial preferences: gui.colorized_frame.bg and gui.colorized_frame.fg, which require 10 hex RGB codes (6 hex digits each), e.g.

wireshark -o gui.colorized_frame.bg:${RGB0},${RGB1},${RGB2},${RGB3},${RGB4},${RGB5},${RGB6},${RGB7},${RGB8},${RGB9}

For example, this command yields the same results as the table above (and with all foregrounds set to black):

wireshark -o gui.colorized_frame.bg:ffc0c0,ffc0ff,e0c0e0,c0c0ff,c0e0e0,c0ffff,c0ffc0,ffffc0,e0e0c0,e0e0e0 -o gui.colorized_frame.fg:000000,000000,000000,000000,000000,000000,000000,000000,000000,000000
text
The display filter for selecting packets to be colorized .

11.2.3.12. apply_filter()

Apply the filter in the main filter box. Requires a GUI.

Warning Avoid calling this from within a dissector function or else an infinite loop can occur if it causes the dissector to be called again. This function is best used in a button callback (from a dialog or text window) or menu callback.

Reload the current capture file. Requires a GUI.

Warning Avoid calling this from within a dissector function or else an infinite loop can occur if it causes the dissector to be called again. This function is best used in a button callback (from a dialog or text window) or menu callback.

11.2.3.15. redissect_packets()

Redissect all packets in the current capture file. Requires a GUI.

Warning Avoid calling this from within a dissector function or else an infinite loop can occur if it causes the dissector to be called again. This function is best used in a button callback (from a dialog or text window) or menu callback.

11.2.3.17. browser_open_url(url)

Opens an URL in a web browser. Requires a GUI.

Warning Do not pass an untrusted URL to this function. It will be passed to the system’s URL handler, which might execute malicious code, switch on your Bluetooth-connected foghorn, or any of a number of unexpected or harmful things.
url
The url.

11.2.3.18. browser_open_data_file(filename)

Open a file located in the data directory (specified in the Wireshark preferences) in the web browser. If the file does not exist, the function silently ignores the request. Requires a GUI.

Warning Do not pass an untrusted URL to this function. It will be passed to the system’s URL handler, which might execute malicious code, switch on your Bluetooth-connected foghorn, or any of a number of unexpected or harmful things.
filename
The file name.

11.3. Functions For New Protocols And Dissectors

The classes and functions in this chapter allow Lua scripts to create new protocols for Wireshark. Proto protocol objects can have Pref preferences, ProtoField fields for filterable values that can be displayed in a details view tree, functions for dissecting the new protocol, and so on.

The dissection function can be hooked into existing protocol tables through DissectorTable so that the new protocol dissector function gets called by that protocol, and the new dissector can itself call on other, already existing protocol dissectors by retrieving and calling the Dissector object. A Proto dissector can also be used as a post-dissector, at the end of every frame’s dissection, or as a heuristic dissector.

11.3.1. Dissector

A refererence to a dissector, used to call a dissector against a packet or a part of it.

11.3.1.1. Dissector.get(name)

Obtains a dissector reference by name.

Arguments
name
The name of the dissector.
Returns

The Dissector reference if found, otherwise nil.

11.3.1.2. Dissector.list()

Gets a Lua array table of all registered Dissector names.

Note: This is an expensive operation, and should only be used for troubleshooting.

Since: 1.11.3

Returns

The array table of registered dissector names.

11.3.1.3. dissector:call(tvb, pinfo, tree)

Calls a dissector against a given packet (or part of it).

Arguments
tvb
The buffer to dissect.
pinfo
The packet info.
tree
The tree on which to add the protocol items.
Returns

Number of bytes dissected. Note that some dissectors always return number of bytes in incoming buffer, so be aware.

11.3.1.4. dissector:__call(tvb, pinfo, tree)

Calls a dissector against a given packet (or part of it).

Arguments
tvb
The buffer to dissect.
pinfo
The packet info.
tree
The tree on which to add the protocol items.

11.3.1.5. dissector:__tostring()

Gets the Dissector’s description.

Returns

A string of the Dissector’s description.

11.3.2. DissectorTable

A table of subdissectors of a particular protocol (e.g. TCP subdissectors like http, smtp, sip are added to table "tcp.port").

Useful to add more dissectors to a table so that they appear in the “Decode As…​” dialog.

11.3.2.1. DissectorTable.new(tablename, [uiname], [type], [base], [proto])

Creates a new DissectorTable for your dissector’s use.

Arguments
tablename
The short name of the table. Use lower-case alphanumeric, dot, and/or underscores (e.g., "ansi_map.tele_id" or "udp.port").
uiname (optional)
The name of the table in the user interface. Defaults to the name given in tablename, but can be any string.
type (optional)
One of ftypes.UINT8, ftypes.UINT16, ftypes.UINT24, ftypes.UINT32, or ftypes.STRING. Defaults to ftypes.UINT32.
base (optional)
One of base.NONE, base.DEC, base.HEX, base.OCT, base.DEC_HEX or base.HEX_DEC. Defaults to base.DEC.
proto (optional)
The Proto object that uses this dissector table.
Returns

The newly created DissectorTable.

11.3.2.2. DissectorTable.list()

Gets a Lua array table of all DissectorTable names - i.e., the string names you can use for the first argument to DissectorTable.get().

Note: This is an expensive operation, and should only be used for troubleshooting.

Since: 1.11.3

Returns

The array table of registered DissectorTable names.

11.3.2.3. DissectorTable.heuristic_list()

Gets a Lua array table of all heuristic list names - i.e., the string names you can use for the first argument in Proto:register_heuristic().

Note: This is an expensive operation, and should only be used for troubleshooting.

Since: 1.11.3

Returns

The array table of registered heuristic list names

11.3.2.4. DissectorTable.try_heuristics(listname, tvb, pinfo, tree)

Try all the dissectors in a given heuristic dissector table.

Arguments
listname
The name of the heuristic dissector.
tvb
The buffer to dissect.
pinfo
The packet info.
tree
The tree on which to add the protocol items.
Returns

True if the packet was recognized by the sub-dissector (stop dissection here).

11.3.2.5. DissectorTable.get(tablename)

Obtain a reference to an existing dissector table.

Arguments
tablename
The short name of the table.
Returns

The DissectorTable reference if found, otherwise nil.

Add a Proto with a dissector function or a Dissector object to the dissector table.

Arguments
pattern
The pattern to match (either an integer, a integer range or a string depending on the table’s type).
dissector
The dissector to add (either a Proto or a Dissector).

11.3.2.7. dissectortable:set(pattern, dissector)

Clear all existing dissectors from a table and add a new dissector or a range of new dissectors.

Since: 1.11.3

Arguments
pattern
The pattern to match (either an integer, a integer range or a string depending on the table’s type).
dissector
The dissector to add (either a Proto or a Dissector).

11.3.2.8. dissectortable:remove(pattern, dissector)

Remove a dissector or a range of dissectors from a table.

Arguments
pattern
The pattern to match (either an integer, a integer range or a string depending on the table’s type).
dissector
The dissector to remove (either a Proto or a Dissector).

11.3.2.9. dissectortable:remove_all(dissector)

Remove all dissectors from a table.

Since: 1.11.3

Arguments
dissector
The dissector to remove (either a Proto or a Dissector).

11.3.2.10. dissectortable:try(pattern, tvb, pinfo, tree)

Try to call a dissector from a table.

Arguments
pattern
The pattern to be matched (either an integer or a string depending on the table’s type).
tvb
The Tvb to dissect.
pinfo
The packet’s Pinfo.
tree
The TreeItem on which to add the protocol items.
Returns

Number of bytes dissected. Note that some dissectors always return number of bytes in incoming buffer, so be aware.

11.3.2.11. dissectortable:get_dissector(pattern)

Try to obtain a dissector from a table.

Arguments
pattern
The pattern to be matched (either an integer or a string depending on the table’s type).
Returns

The Dissector handle if found, otherwise nil

Add the given Proto to the “Decode as…​” list for this DissectorTable. The passed-in Proto object’s dissector() function is used for dissecting.

Since: 1.99.1

Arguments
proto
The Proto to add.

11.3.2.13. dissectortable:__tostring()

Gets some debug information about the DissectorTable.

Returns

A string of debug information about the DissectorTable.

11.3.3. Pref

A preference of a Proto.

11.3.3.1. Pref.bool(label, default, descr)

Creates a boolean preference to be added to a Proto.prefs Lua table.

11.3.3.2. Example

    -- create a Boolean preference named "bar" for Foo Protocol
-- (assuming Foo doesn't already have a preference named "bar")
proto_foo.prefs.bar = Pref.bool( "Bar", true, "Baz and all the rest" )
Arguments
label
The Label (text in the right side of the preference input) for this preference.
default
The default value for this preference.
descr
A description of this preference.

11.3.3.3. Pref.uint(label, default, descr)

Creates an (unsigned) integer preference to be added to a Proto.prefs Lua table.

Arguments
label
The Label (text in the right side of the preference input) for this preference.
default
The default value for this preference.
descr
A description of what this preference is.

11.3.3.4. Pref.string(label, default, descr)

Creates a string preference to be added to a Proto.prefs Lua table.

Arguments
label
The Label (text in the right side of the preference input) for this preference.
default
The default value for this preference.
descr
A description of what this preference is.

11.3.3.5. Pref.enum(label, default, descr, enum, radio)

Creates an enum preference to be added to a Proto.prefs Lua table.

11.3.3.6. Example:

    local OUTPUT_OFF        = 0
local OUTPUT_DEBUG      = 1
local OUTPUT_INFO       = 2
local OUTPUT_WARN       = 3
local OUTPUT_ERROR      = 4

local output_tab = {
{ 1, "Off"              , OUTPUT_OFF },
{ 2, "Debug"            , OUTPUT_DEBUG },
{ 3, "Information"      , OUTPUT_INFO },
{ 4, "Warning"          , OUTPUT_WARN },
{ 5, "Error"            , OUTPUT_ERROR },
}

-- Create enum preference that shows as Combo Box under
-- Foo Protocol's preferences
proto_foo.prefs.outputlevel = Pref.enum(
"Output Level",                 -- label
OUTPUT_INFO,                    -- default value
"Verbosity of log output",      -- description
output_tab,                     -- enum table
false                           -- show as combo box
)

-- Then, we can query the value of the selected preference.
-- This line prints "Output Level: 3" assuming the selected
-- output level is _INFO.
debug( "Output Level: " .. proto_foo.prefs.outputlevel )
Arguments
label
The Label (text in the right side of the preference input) for this preference.
default
The default value for this preference.
descr
A description of what this preference is.
enum
An enum Lua table.
Radio button (true) or Combobox (false).

11.3.3.7. Pref.range(label, default, descr, max)

Creates a range (numeric text entry) preference to be added to a Proto.prefs Lua table.

Arguments
label
The Label (text in the right side of the preference input) for this preference.
default
The default value for this preference, e.g., "53", "10-30", or "10-30,53,55,100-120".
descr
A description of what this preference is.
max
The maximum value.

11.3.3.8. Pref.statictext(label, descr)

Creates a static text string to be added to a Proto.prefs Lua table.

Arguments
label
The static text.
descr
The static text description.

11.3.4. Prefs

The table of preferences of a protocol.

11.3.4.1. prefs:__newindex(name, pref)

Creates a new preference.

Arguments
name
The abbreviation of this preference.
pref
A valid but still unassigned Pref object.
Errors
• Unknown Pref type

11.3.4.2. prefs:__index(name)

Get the value of a preference setting.

11.3.4.3. Example

    -- print the value of Foo's preference named "bar"
debug( "bar = " .. proto_foo.prefs.bar )
Arguments
name
The abbreviation of this preference.
Returns

The current value of the preference.

Errors
• Unknown Pref type

11.3.5. Proto

A new protocol in Wireshark. Protocols have several uses. The main one is to dissect a protocol, but they can also be dummies used to register preferences for other purposes.

11.3.5.1. Proto.new(name, desc)

Creates a new Proto object.

Arguments
name
The name of the protocol.
desc
A Long Text description of the protocol (usually lowercase).
Returns

The newly created Proto object.

11.3.5.2. proto:__call(name, desc)

Creates a Proto object.

Arguments
name
The name of the protocol.
desc
A Long Text description of the protocol (usually lowercase).
Returns

The new Proto object.

11.3.5.3. proto:register_heuristic(listname, func)

Registers a heuristic dissector function for this Proto protocol, for the given heuristic list name.

When later called, the passed-in function will be given:

The function must return true if the payload is for it, else false.

The function should perform as much verification as possible to ensure the payload is for it, and dissect the packet (including setting TreeItem info and such) only if the payload is for it, before returning true or false.

Since version 1.99.1, this function also accepts a Dissector object as the second argument, to allow re-using the same Lua code as the function proto.dissector(…​). In this case, the Dissector must return a Lua number of the number of bytes consumed/parsed: if 0 is returned, it will be treated the same as a false return for the heuristic; if a positive or negative number is returned, then the it will be treated the same as a true return for the heuristic, meaning the packet is for this protocol and no other heuristic will be tried.

Since: 1.11.3

Arguments
listname
The heuristic list name this function is a heuristic for (e.g., "udp" or "infiniband.payload").
func
A Lua function that will be invoked for heuristic dissection.

11.3.5.4. proto.dissector

Mode: Retrieve or assign.

The protocol’s dissector, a function you define.

When later called, the function will be given:

11.3.5.5. proto.prefs

Mode: Retrieve only.

The preferences of this dissector.

11.3.5.6. proto.prefs_changed

Mode: Assign only.

The preferences changed routine of this dissector, a Lua function you define.

11.3.5.7. proto.init

Mode: Assign only.

The init routine of this dissector, a function you define.

The called init function is passed no arguments.

11.3.5.8. proto.name

Mode: Retrieve only.

The name given to this dissector.

11.3.5.9. proto.description

Mode: Retrieve only.

The description given to this dissector.

11.3.5.10. proto.fields

Mode: Retrieve or assign.

The ProtoField's Lua table of this dissector.

11.3.5.11. proto.experts

Mode: Retrieve or assign.

The expert info Lua table of this Proto.

Since: 1.11.3

11.3.6. ProtoExpert

A Protocol expert info field, to be used when adding items to the dissection tree.

Since: 1.11.3

11.3.6.1. ProtoExpert.new(abbr, text, group, severity)

Creates a new ProtoExpert object to be used for a protocol’s expert information notices.

Since: 1.11.3

Arguments
abbr
Filter name of the expert info field (the string that is used in filters).
text
The default text of the expert field.
group
Expert group type: one of: expert.group.CHECKSUM, expert.group.SEQUENCE, expert.group.RESPONSE_CODE, expert.group.REQUEST_CODE, expert.group.UNDECODED, expert.group.REASSEMBLE, expert.group.MALFORMED, expert.group.DEBUG, expert.group.PROTOCOL, expert.group.SECURITY, expert.group.COMMENTS_GROUP, expert.group.DECRYPTION, expert.group.ASSUMPTION or expert.group.DEPRECATED.
severity
Expert severity type: one of: expert.severity.COMMENT, expert.severity.CHAT, expert.severity.NOTE, expert.severity.WARN, or expert.severity.ERROR.
Returns

The newly created ProtoExpert object.

11.3.6.2. protoexpert:__tostring()

Returns a string with debugging information about a ProtoExpert object.

Since: 1.11.3

11.3.7. ProtoField

A Protocol field (to be used when adding items to the dissection tree).

11.3.7.1. ProtoField.new(name, abbr, type, [valuestring], [base], [mask], [descr])

Creates a new ProtoField object to be used for a protocol field.

Arguments
name
Actual name of the field (the string that appears in the tree).
abbr
Filter name of the field (the string that is used in filters).
type
Field Type: one of: ftypes.BOOLEAN, ftypes.CHAR, ftypes.UINT8, ftypes.UINT16, ftypes.UINT24, ftypes.UINT32, ftypes.UINT64, ftypes.INT8, ftypes.INT16, ftypes.INT24, ftypes.INT32, ftypes.INT64, ftypes.FLOAT, ftypes.DOUBLE , ftypes.ABSOLUTE_TIME, ftypes.RELATIVE_TIME, ftypes.STRING, ftypes.STRINGZ, ftypes.UINT_STRING, ftypes.ETHER, ftypes.BYTES, ftypes.UINT_BYTES, ftypes.IPv4, ftypes.IPv6, ftypes.IPXNET, ftypes.FRAMENUM, ftypes.PCRE, ftypes.GUID, ftypes.OID, ftypes.PROTOCOL, ftypes.REL_OID, ftypes.SYSTEM_ID, ftypes.EUI64 or ftypes.NONE.
valuestring (optional)
A table containing the text that corresponds to the values, or a table containing tables of range string values that corresponds to the values ({min, max, "string"}) if the base is base.RANGE_STRING, or a table containing unit name for the values if base is base.UNIT_STRING, or one of frametype.NONE, frametype.REQUEST, frametype.RESPONSE, frametype.ACK or frametype.DUP_ACK if field type is ftypes.FRAMENUM.
base (optional)
The representation, one of: base.NONE, base.DEC, base.HEX, base.OCT, base.DEC_HEX, base.HEX_DEC, base.UNIT_STRING or base.RANGE_STRING.
descr (optional)
The description of the field.
Returns

The newly created ProtoField object.

11.3.7.2. ProtoField.char(abbr, [name], [base], [valuestring], [mask], [desc])

Creates a ProtoField of an 8-bit ASCII character.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
base (optional)
One of base.NONE, base.HEX, base.OCT or base.RANGE_STRING.
valuestring (optional)
A table containing the text that corresponds to the values, or a table containing tables of range string values that correspond to the values ({min, max, "string"}) if the base is base.RANGE_STRING.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.3. ProtoField.uint8(abbr, [name], [base], [valuestring], [mask], [desc])

Creates a ProtoField of an unsigned 8-bit integer (i.e., a byte).

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
base (optional)
One of base.DEC, base.HEX or base.OCT, base.DEC_HEX, base.HEX_DEC, base.UNIT_STRING or base.RANGE_STRING.
valuestring (optional)
A table containing the text that corresponds to the values, or a table containing tables of range string values that correspond to the values ({min, max, "string"}) if the base is base.RANGE_STRING, or a table containing the unit name for the values if base is base.UNIT_STRING.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.4. ProtoField.uint16(abbr, [name], [base], [valuestring], [mask], [desc])

Creates a ProtoField of an unsigned 16-bit integer.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
base (optional)
One of base.DEC, base.HEX, base.OCT, base.DEC_HEX, base.HEX_DEC, base.UNIT_STRING or base.RANGE_STRING.
valuestring (optional)
A table containing the text that corresponds to the values, or a table containing tables of range string values that correspond to the values ({min, max, "string"}) if the base is base.RANGE_STRING, or a table containing unit name for the values if base is base.UNIT_STRING.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.5. ProtoField.uint24(abbr, [name], [base], [valuestring], [mask], [desc])

Creates a ProtoField of an unsigned 24-bit integer.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
base (optional)
One of base.DEC, base.HEX, base.OCT, base.DEC_HEX, base.HEX_DEC, base.UNIT_STRING, or base.RANGE_STRING.
valuestring (optional)
A table containing the text that corresponds to the values, or a table containing tables of range string values that correspond to the values ({min, max, "string"}) if the base is base.RANGE_STRING, or a table containing the unit name for the values if base is base.UNIT_STRING.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.6. ProtoField.uint32(abbr, [name], [base], [valuestring], [mask], [desc])

Creates a ProtoField of an unsigned 32-bit integer.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
base (optional)
One of base.DEC, base.HEX, base.OCT, base.DEC_HEX, base.HEX_DEC, base.UNIT_STRING, or base.RANGE_STRING.
valuestring (optional)
A table containing the text that corresponds to the values, or a table containing tables of range string values that correspond to the values ({min, max, "string"}) if the base is base.RANGE_STRING, or a table containing the unit name for the values if base is base.UNIT_STRING.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.7. ProtoField.uint64(abbr, [name], [base], [valuestring], [mask], [desc])

Creates a ProtoField of an unsigned 64-bit integer.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
base (optional)
One of base.DEC, base.HEX, base.OCT, base.DEC_HEX, base.HEX_DEC, base.UNIT_STRING, or base.RANGE_STRING.
valuestring (optional)
A table containing the text that corresponds to the values, or a table containing tables of range string values that correspond to the values ({min, max, "string"}) if the base is base.RANGE_STRING, or a table containing the unit name for the values if base is base.UNIT_STRING.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.8. ProtoField.int8(abbr, [name], [base], [valuestring], [mask], [desc])

Creates a ProtoField of a signed 8-bit integer (i.e., a byte).

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
base (optional)
One of base.DEC, base.UNIT_STRING, or base.RANGE_STRING.
valuestring (optional)
A table containing the text that corresponds to the values, or a table containing tables of range string values that correspond to the values ({min, max, "string"}) if the base is base.RANGE_STRING, or a table containing unit name for the values if base is base.UNIT_STRING.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.9. ProtoField.int16(abbr, [name], [base], [valuestring], [mask], [desc])

Creates a ProtoField of a signed 16-bit integer.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
base (optional)
One of base.DEC, base.UNIT_STRING, or base.RANGE_STRING.
valuestring (optional)
A table containing the text that corresponds to the values, or a table containing tables of range string values that correspond to the values ({min, max, "string"}) if the base is base.RANGE_STRING, or a table containing unit name for the values if base is base.UNIT_STRING.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.10. ProtoField.int24(abbr, [name], [base], [valuestring], [mask], [desc])

Creates a ProtoField of a signed 24-bit integer.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
base (optional)
One of base.DEC, base.UNIT_STRING, or base.RANGE_STRING.
valuestring (optional)
A table containing the text that corresponds to the values, or a table containing tables of range string values that correspond to the values ({min, max, "string"}) if the base is base.RANGE_STRING, or a table containing unit name for the values if base is base.UNIT_STRING.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.11. ProtoField.int32(abbr, [name], [base], [valuestring], [mask], [desc])

Creates a ProtoField of a signed 32-bit integer.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
base (optional)
One of base.DEC, base.UNIT_STRING, or base.RANGE_STRING.
valuestring (optional)
A table containing the text that corresponds to the values, or a table containing tables of range string values that correspond to the values ({min, max, "string"}) if the base is base.RANGE_STRING, or a table containing unit name for the values if base is base.UNIT_STRING.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.12. ProtoField.int64(abbr, [name], [base], [valuestring], [mask], [desc])

Creates a ProtoField of a signed 64-bit integer.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
base (optional)
One of base.DEC, base.UNIT_STRING, or base.RANGE_STRING.
valuestring (optional)
A table containing the text that corresponds to the values, or a table containing tables of range string values that correspond to the values ({min, max, "string"}) if the base is base.RANGE_STRING, or a table containing unit name for the values if base is base.UNIT_STRING.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

Creates a ProtoField for a frame number (for hyperlinks between frames).

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
base (optional)
Only base.NONE is supported for framenum.
frametype (optional)
One of frametype.NONE, frametype.REQUEST, frametype.RESPONSE, frametype.ACK or frametype.DUP_ACK.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.14. ProtoField.bool(abbr, [name], [display], [valuestring], [mask], [desc])

Creates a ProtoField for a boolean true/false value.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
display (optional)
How wide the parent bitfield is (base.NONE is used for NULL-value).
valuestring (optional)
A table containing the text that corresponds to the values.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.15. ProtoField.absolute_time(abbr, [name], [base], [desc])

Creates a ProtoField of a time_t structure value.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
base (optional)
One of base.LOCAL, base.UTC or base.DOY_UTC.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.16. ProtoField.relative_time(abbr, [name], [desc])

Creates a ProtoField of a time_t structure value.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.17. ProtoField.float(abbr, [name], [valuestring], [desc])

Creates a ProtoField of a floating point number (4 bytes).

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
valuestring (optional)
A table containing unit name for the values.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.18. ProtoField.double(abbr, [name], [valuestring], [desc])

Creates a ProtoField of a double-precision floating point (8 bytes).

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
valuestring (optional)
A table containing unit name for the values.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.19. ProtoField.string(abbr, [name], [display], [desc])

Creates a ProtoField of a string value.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
display (optional)
One of base.ASCII or base.UNICODE.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.20. ProtoField.stringz(abbr, [name], [display], [desc])

Creates a ProtoField of a zero-terminated string value.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
display (optional)
One of base.ASCII or base.UNICODE.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.21. ProtoField.bytes(abbr, [name], [display], [desc])

Creates a ProtoField for an arbitrary number of bytes.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
display (optional)
One of base.NONE, base.DOT, base.DASH, base.COLON or base.SPACE.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.22. ProtoField.ubytes(abbr, [name], [display], [desc])

Creates a ProtoField for an arbitrary number of unsigned bytes.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
display (optional)
One of base.NONE, base.DOT, base.DASH, base.COLON or base.SPACE.
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.23. ProtoField.none(abbr, [name], [desc])

Creates a ProtoField of an unstructured type.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.24. ProtoField.ipv4(abbr, [name], [desc])

Creates a ProtoField of an IPv4 address (4 bytes).

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.25. ProtoField.ipv6(abbr, [name], [desc])

Creates a ProtoField of an IPv6 address (16 bytes).

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.26. ProtoField.ether(abbr, [name], [desc])

Creates a ProtoField of an Ethernet address (6 bytes).

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.27. ProtoField.guid(abbr, [name], [desc])

Creates a ProtoField for a Globally Unique IDentifier (GUID).

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.28. ProtoField.oid(abbr, [name], [desc])

Creates a ProtoField for an ASN.1 Organizational IDentified (OID).

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.29. ProtoField.protocol(abbr, [name], [desc])

Creates a ProtoField for a sub-protocol. Since 1.99.9.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.30. ProtoField.rel_oid(abbr, [name], [desc])

Creates a ProtoField for an ASN.1 Relative-OID.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.31. ProtoField.systemid(abbr, [name], [desc])

Creates a ProtoField for an OSI System ID.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.32. ProtoField.eui64(abbr, [name], [desc])

Creates a ProtoField for an EUI64.

Arguments
abbr
Abbreviated name of the field (the string used in filters).
name (optional)
Actual name of the field (the string that appears in the tree).
desc (optional)
Description of the field.
Returns

A ProtoField object to be added to a table set to the Proto.fields attribute.

11.3.7.33. protofield:__tostring()

Returns a string with info about a protofield (for debugging purposes).

11.3.8. Global Functions

11.3.8.1. register_postdissector(proto, [allfields])

Make a Proto protocol (with a dissector function) a post-dissector. It will be called for every frame after dissection.

Arguments
proto
The protocol to be used as post-dissector.
allfields (optional)
Whether to generate all fields. Note: This impacts performance (default=false).

11.3.8.2. dissect_tcp_pdus(tvb, tree, min_header_size, get_len_func, dissect_func, [desegment])

Make the TCP-layer invoke the given Lua dissection function for each PDU in the TCP segment, of the length returned by the given get_len_func function.

This function is useful for protocols that run over TCP and that are either a fixed length always, or have a minimum size and have a length field encoded within that minimum portion that identifies their full length. For such protocols, their protocol dissector function can invoke this dissect_tcp_pdus() function to make it easier to handle dissecting their protocol’s messages (i.e., their protocol data unit (PDU)). This function shouild not be used for protocols whose PDU length cannot be determined from a fixed minimum portion, such as HTTP or Telnet.

Since: 1.99.2

Arguments
tvb
The Tvb buffer to dissect PDUs from.
tree
The Tvb buffer to dissect PDUs from.
The number of bytes in the fixed-length part of the PDU.
get_len_func
A Lua function that will be called for each PDU, to determine the full length of the PDU. The called function will be given (1) the Tvb object of the whole Tvb (possibly reassembled), (2) the Pinfo object, and (3) an offset number of the index of the first byte of the PDU (i.e., its first header byte). The Lua function must return a Lua number of the full length of the PDU.
dissect_func
A Lua function that will be called for each PDU, to dissect the PDU. The called function will be given (1) the Tvb object of the PDU’s Tvb (possibly reassembled), (2) the Pinfo object, and (3) the TreeItem object. The Lua function must return a Lua number of the number of bytes read/handled, which would typically be the Tvb:len().
desegment (optional)
Whether to reassemble PDUs crossing TCP segment boundaries or not. (default=true)

11.4. Obtaining Dissection Data

11.4.1. Field

A Field extractor to obtain field values. A Field object can only be created outside of the callback functions of dissectors, post-dissectors, heuristic-dissectors, and taps.

Once created, it is used inside the callback functions, to generate a FieldInfo object.

11.4.1.1. Field.new(fieldname)

Create a Field extractor.

Arguments
fieldname
The filter name of the field (e.g. ip.addr)
Returns

The field extractor

Errors
• A Field extractor must be defined before Taps or Dissectors get called

11.4.1.2. Field.list()

Gets a Lua array table of all registered field filter names.

Note This is an expensive operation, and should only be used for troubleshooting.

Since: 1.11.3

Returns

The array table of field filter names

11.4.1.3. field:__call()

Obtain all values (see FieldInfo) for this field.

Returns

All the values of this field

Errors
• Fields cannot be used outside dissectors or taps

11.4.1.4. field:__tostring()

Obtain a string with the field filter name.

11.4.1.5. field.name

Mode: Retrieve only.

The filter name of this field, or nil.

Since: 1.99.8

11.4.1.6. field.display

Mode: Retrieve only.

The full display name of this field, or nil.

Since: 1.99.8

11.4.1.7. field.type

Mode: Retrieve only.

The ftype of this field, or nil.

Since: 1.99.8

11.4.2. FieldInfo

An extracted Field from dissected packet data. A FieldInfo object can only be used within the callback functions of dissectors, post-dissectors, heuristic-dissectors, and taps.

A FieldInfo can be called on either existing Wireshark fields by using either Field.new() or Field() before-hand, or it can be called on new fields created by Lua from a ProtoField.

11.4.2.1. fieldinfo:__len()

Obtain the Length of the field

11.4.2.2. fieldinfo:__unm()

Obtain the Offset of the field

11.4.2.3. fieldinfo:__call()

Obtain the Value of the field.

Previous to 1.11.4, this function retrieved the value for most field types, but for ftypes.UINT_BYTES it retrieved the ByteArray of the field’s entire TvbRange. In other words, it returned a ByteArray that included the leading length byte(s), instead of just the value bytes. That was a bug, and has been changed in 1.11.4. Furthermore, it retrieved an ftypes.GUID as a ByteArray, which is also incorrect.

If you wish to still get a ByteArray of the TvbRange, use fieldinfo.range to get the TvbRange, and then use tvbrange:bytes() to convert it to a ByteArray.

11.4.2.4. fieldinfo:__tostring()

The string representation of the field.

11.4.2.5. fieldinfo:__eq()

Checks whether lhs is within rhs.

11.4.2.6. fieldinfo:__le()

Checks whether the end byte of lhs is before the end of rhs.

Errors
• Data source must be the same for both fields

11.4.2.7. fieldinfo:__lt()

Checks whether the end byte of rhs is before the beginning of rhs.

Errors
• Data source must be the same for both fields

11.4.2.8. fieldinfo.len

Mode: Retrieve only.

The length of this field.

11.4.2.9. fieldinfo.offset

Mode: Retrieve only.

The offset of this field.

11.4.2.10. fieldinfo.value

Mode: Retrieve only.

The value of this field.

11.4.2.11. fieldinfo.label

Mode: Retrieve only.

The string representing this field.

11.4.2.12. fieldinfo.display

Mode: Retrieve only.

The string display of this field as seen in GUI.

11.4.2.13. fieldinfo.type

Mode: Retrieve only.

The internal field type, a number which matches one of the ftype values in init.lua.

Since: 1.99.8

11.4.2.14. fieldinfo.source

Mode: Retrieve only.

The source Tvb object the FieldInfo is derived from, or nil if there is none.

Since: 1.99.8

11.4.2.15. fieldinfo.range

Mode: Retrieve only.

The TvbRange covering the bytes of this field in a Tvb or nil if there is none.

11.4.2.16. fieldinfo.generated

Mode: Retrieve only.

Whether this field was marked as generated (boolean).

11.4.2.17. fieldinfo.hidden

Mode: Retrieve only.

Whether this field was marked as hidden (boolean).

Since: 1.99.8

11.4.2.18. fieldinfo.is_url

Mode: Retrieve only.

Whether this field was marked as being a URL (boolean).

Since: 1.99.8

11.4.2.19. fieldinfo.little_endian

Mode: Retrieve only.

Whether this field is little-endian encoded (boolean).

Since: 1.99.8

11.4.2.20. fieldinfo.big_endian

Mode: Retrieve only.

Whether this field is big-endian encoded (boolean).

Since: 1.99.8

11.4.2.21. fieldinfo.name

Mode: Retrieve only.

The filter name of this field.

Since: 1.99.8

11.4.3. Global Functions

11.4.3.1. all_field_infos()

Obtain all fields from the current tree. Note this only gets whatever fields the underlying dissectors have filled in for this packet at this time - there may be fields applicable to the packet that simply aren’t being filled in because at this time they’re not needed for anything. This function only gets what the C-side code has currently populated, not the full list.

Errors
• Cannot be called outside a listener or dissector

11.5. Obtaining Packet Information

Arguments
hostname
The address or name of the IP host.

Arguments
hostname
The address or name of the IP host.

eth

11.5.2. Column

A Column in the packet list.

11.5.2.1. column:__tostring()

Returns

The column’s string text (in parenthesis if not available).

Clears a Column.

11.5.2.3. column:set(text)

Sets the text of a Column.

Arguments
text
The text to which to set the Column.

11.5.2.4. column:append(text)

Appends text to a Column.

Arguments
text
The text to append to the Column.

11.5.2.5. column:prepend(text)

Prepends text to a Column.

Arguments
text
The text to prepend to the Column.

11.5.2.6. column:fence()

Sets Column text fence, to prevent overwriting.

Since: 1.10.6

11.5.2.7. column:clear_fence()

Clear Column text fence.

Since: 1.11.3

11.5.3. Columns

The Columns of the packet list.

11.5.3.1. columns:__tostring()

Returns

The string "Columns". This has no real use aside from debugging.

11.5.3.2. columns:__newindex(column, text)

Sets the text of a specific column. Some columns cannot be modified, and no error is raised if attempted. The columns that are known to allow modification are "info" and "protocol".

Arguments
column
The name of the column to set. Valid values are:
Name Description

number

Frame number

abs_time

Absolute timestamp

utc_time

UTC timestamp

cls_time

CLS timestamp

rel_time

Relative timestamp

date

Absolute date and time

date_doy

Absolute year, day of year, and time

utc_date

UTC date and time

utc_date_doy

UTC year, day of year, and time

delta_time

Delta time from previous packet

delta_time_displayed

Delta time from previous displayed packet

src

src_res

src_unres

dl_src

dl_src_res

dl_src_unres

net_src

net_src_res

net_src_unres

dst

dst_res

dst_unres

dl_dst

dl_dst_res

dl_dst_unres

net_dst

net_dst_res

net_dst_unres

src_port

Source port

src_port_res

Resolved source port

src_port_unres

Numeric source port

dst_port

Destination port

dst_port_res

Resolved destination port

dst_port_unres

Numeric destination port

protocol

Protocol name

info

General packet information

packet_len

Packet length

cumulative_bytes

Cumulative bytes in the capture

direction

Packet direction

vsan

Virtual SAN

tx_rate

Transmit rate

dce_call

DCE call

11.5.3.3. Example

pinfo.cols['info'] = 'foo bar'

— syntactic sugar (equivalent to above) pinfo.cols.info = 'foo bar'

text
The text for the column.

11.5.3.4. columns:__index()

Get a specific Column.

11.5.4. NSTime

NSTime represents a nstime_t. This is an object with seconds and nanoseconds.

11.5.4.1. NSTime.new([seconds], [nseconds])

Creates a new NSTime object.

Arguments
seconds (optional)
Seconds.
nseconds (optional)
Nano seconds.
Returns

The new NSTime object.

11.5.4.2. nstime:__call([seconds], [nseconds])

Creates a NSTime object.

Arguments
seconds (optional)
Seconds.
nseconds (optional)
Nanoseconds.
Returns

The new NSTime object.

11.5.4.3. nstime:tonumber()

Returns a Lua number of the NSTime representing seconds from epoch Since: 2.4.0

The Lua number.

11.5.4.4. nstime:__tostring()

Returns

The string representing the nstime.

Calculates the sum of two NSTimes.

11.5.4.6. nstime:__sub()

Calculates the diff of two NSTimes.

11.5.4.7. nstime:__unm()

Calculates the negative NSTime.

11.5.4.8. nstime:__eq()

Compares two NSTimes.

11.5.4.9. nstime:__le()

Compares two NSTimes.

11.5.4.10. nstime:__lt()

Compares two NSTimes.

11.5.4.11. nstime.secs

Mode: Retrieve or assign.

The NSTime seconds.

11.5.4.12. nstime.nsecs

Mode: Retrieve or assign.

The NSTime nano seconds.

11.5.5. Pinfo

Packet information.

11.5.5.1. pinfo.visited

Mode: Retrieve only.

Whether this packet has been already visited.

11.5.5.2. pinfo.number

Mode: Retrieve only.

The number of this packet in the current file.

11.5.5.3. pinfo.len

Mode: Retrieve only.

The length of the frame.

11.5.5.4. pinfo.caplen

Mode: Retrieve only.

The captured length of the frame.

11.5.5.5. pinfo.abs_ts

Mode: Retrieve only.

When the packet was captured.

11.5.5.6. pinfo.rel_ts

Mode: Retrieve only.

Number of seconds passed since beginning of capture.

11.5.5.7. pinfo.delta_ts

Mode: Retrieve only.

Number of seconds passed since the last captured packet.

11.5.5.8. pinfo.delta_dis_ts

Mode: Retrieve only.

Number of seconds passed since the last displayed packet.

11.5.5.9. pinfo.curr_proto

Mode: Retrieve only.

Which Protocol are we dissecting.

11.5.5.10. pinfo.can_desegment

Mode: Retrieve or assign.

Set if this segment could be desegmented.

11.5.5.11. pinfo.desegment_len

Mode: Retrieve or assign.

Estimated number of additional bytes required for completing the PDU.

11.5.5.12. pinfo.desegment_offset

Mode: Retrieve or assign.

Offset in the tvbuff at which the dissector will continue processing when next called.

11.5.5.13. pinfo.fragmented

Mode: Retrieve only.

If the protocol is only a fragment.

11.5.5.14. pinfo.in_error_pkt

Mode: Retrieve only.

If we’re inside an error packet.

11.5.5.15. pinfo.match_uint

Mode: Retrieve only.

Matched uint for calling subdissector from table.

11.5.5.16. pinfo.match_string

Mode: Retrieve only.

Matched string for calling subdissector from table.

11.5.5.17. pinfo.port_type

Mode: Retrieve or assign.

Type of Port of .src_port and .dst_port.

11.5.5.18. pinfo.src_port

Mode: Retrieve or assign.

Source Port of this Packet.

11.5.5.19. pinfo.dst_port

Mode: Retrieve or assign.

Destination Port of this Packet.

11.5.5.20. pinfo.dl_src

Mode: Retrieve or assign.

11.5.5.21. pinfo.dl_dst

Mode: Retrieve or assign.

11.5.5.22. pinfo.net_src

Mode: Retrieve or assign.

Network Layer Source Address of this Packet.

11.5.5.23. pinfo.net_dst

Mode: Retrieve or assign.

Network Layer Destination Address of this Packet.

11.5.5.24. pinfo.src

Mode: Retrieve or assign.

11.5.5.25. pinfo.dst

Mode: Retrieve or assign.

11.5.5.26. pinfo.p2p_dir

Mode: Retrieve or assign.

Direction of this Packet. (incoming / outgoing)

11.5.5.27. pinfo.match

Mode: Retrieve only.

Port/Data we are matching.

11.5.5.28. pinfo.columns

Mode: Retrieve only.

11.5.5.29. pinfo.cols

Mode: Retrieve only.

11.5.5.30. pinfo.private

Mode: Retrieve only.

11.5.5.31. pinfo.hi

Mode: Retrieve or assign.

11.5.5.32. pinfo.lo

Mode: Retrieve only.

11.5.5.33. pinfo.conversation

Mode: Assign only.

Sets the packet conversation to the given Proto object.

11.5.6. PrivateTable

PrivateTable represents the pinfo→private_table.

11.5.6.1. privatetable:__tostring()

Gets debugging type information about the private table.

Returns

A string with all keys in the table, mostly for debugging.

11.6. Functions For Handling Packet Data

11.6.1. ByteArray

11.6.1.1. ByteArray.new([hexbytes], [separator])

Creates a new ByteArray object.

Starting in version 1.11.3, if the second argument is a boolean true, then the first argument is treated as a raw Lua string of bytes to use, instead of a hexadecimal string.

11.6.1.2. Example

    local empty = ByteArray.new()
local b1 = ByteArray.new("a1 b2 c3 d4")
local b2 = ByteArray.new("112233")
Arguments
hexbytes (optional)
A string consisting of hexadecimal bytes like "00 B1 A2" or "1a2b3c4d".
separator (optional)
A string separator between hex bytes/words (default=" "), or if the boolean value true is used, then the first argument is treated as raw binary data
Returns

The new ByteArray object.

11.6.1.3. bytearray:__concat(first, second)

Concatenate two ByteArrays.

first
First array.
second
Second array.
Returns

The new composite ByteArray.

11.6.1.4. bytearray:__eq(first, second)

Compares two ByteArray values.

Since: 1.11.4

first
First array.
second
Second array.

11.6.1.5. bytearray:prepend(prepended)

Prepend a ByteArray to this ByteArray.

Arguments
prepended
ByteArray to be prepended.

11.6.1.6. bytearray:append(appended)

Append a ByteArray to this ByteArray.

Arguments
appended
ByteArray to be appended.

11.6.1.7. bytearray:set_size(size)

Sets the size of a ByteArray, either truncating it or filling it with zeros.

Arguments
size
New size of the array.
Errors
• ByteArray size must be non-negative

11.6.1.8. bytearray:set_index(index, value)

Sets the value of an index of a ByteArray.

Arguments
index
The position of the byte to be set.
value
The char value to set [0-255].

11.6.1.9. bytearray:get_index(index)

Get the value of a byte in a ByteArray.

Arguments
index
The position of the byte to get.
Returns

The value [0-255] of the byte.

11.6.1.10. bytearray:len()

Obtain the length of a ByteArray.

Returns

The length of the ByteArray.

11.6.1.11. bytearray:subset(offset, length)

Obtain a segment of a ByteArray, as a new ByteArray.

Arguments
offset
The position of the first byte (0=first).
length
The length of the segment.
Returns

A ByteArray containing the requested segment.

11.6.1.12. bytearray:base64_decode()

Obtain a Base64 decoded ByteArray.

Since: 1.11.3

Returns

The created ByteArray.

11.6.1.13. bytearray:raw([offset], [length])

Obtain a Lua string of the binary bytes in a ByteArray.

Since: 1.11.3

Arguments
offset (optional)
The position of the first byte (default=0/first).
length (optional)
The length of the segment to get (default=all).
Returns

A Lua string of the binary bytes in the ByteArray.

11.6.1.14. bytearray:tohex([lowercase], [separator])

Obtain a Lua string of the bytes in a ByteArray as hex-ascii, with given separator

Since: 1.11.3

Arguments
lowercase (optional)
True to use lower-case hex characters (default=false).
separator (optional)
A string separator to insert between hex bytes (default=nil).
Returns

A hex-ascii string representation of the ByteArray.

11.6.1.15. bytearray:__tostring()

Obtain a Lua string containing the bytes in a ByteArray so that it can be used in display filters (e.g. "01FE456789AB").

Returns

A hex-ascii string representation of the ByteArray.

11.6.1.16. bytearray:tvb(name)

Creates a new Tvb from a ByteArray. The Tvb will be added to the current frame.

11.6.1.17. Example

    function proto_foo.dissector(buf, pinfo, tree)
-- Create a new tab named "My Tvb" and add some data to it
local b = ByteArray.new("11223344")
local tvb = ByteArray.tvb(b, "My Tvb")

-- Create a tree item that, when clicked, automatically shows the tab we just created
end
Arguments
name
The name to be given to the new data source.
Returns

The created Tvb.

11.6.2. Tvb

A Tvb represents the packet’s buffer. It is passed as an argument to listeners and dissectors, and can be used to extract information (via TvbRange) from the packet’s data.

To create a TvbRange the Tvb must be called with offset and length as optional arguments; the offset defaults to 0 and the length to tvb:captured_len().

Warning Tvbs are usable only by the current listener or dissector call and are destroyed as soon as the listener or dissector returns, so references to them are unusable once the function has returned.

11.6.2.1. tvb:__tostring()

Convert the bytes of a Tvb into a string. This is primarily useful for debugging purposes since the string will be truncated if it is too long.

The string.

11.6.2.2. tvb:reported_len()

Obtain the reported length (length on the network) of a Tvb.

Returns

The reported length of the Tvb.

11.6.2.3. tvb:captured_len()

Obtain the captured length (amount saved in the capture process) of a Tvb.

Returns

The captured length of the Tvb.

11.6.2.4. tvb:len()

Obtain the captured length (amount saved in the capture process) of a Tvb. Same as captured_len; kept only for backwards compatibility

Returns

The captured length of the Tvb.

11.6.2.5. tvb:reported_length_remaining()

Obtain the reported (not captured) length of packet data to end of a Tvb or 0 if the offset is beyond the end of the Tvb.

Returns

The captured length of the Tvb.

11.6.2.6. tvb:bytes([offset], [length])

Obtain a ByteArray from a Tvb.

Since: 1.99.8

Arguments
offset (optional)
The offset (in octets) from the beginning of the Tvb. Defaults to 0.
length (optional)
The length (in octets) of the range. Defaults to until the end of the Tvb.
Returns

The ByteArray object or nil.

11.6.2.7. tvb:offset()

Returns the raw offset (from the beginning of the source Tvb) of a sub Tvb.

Returns

The raw offset of the Tvb.

11.6.2.8. tvb:__call()

Equivalent to tvb:range(…​)

11.6.2.9. tvb:range([offset], [length])

Creates a TvbRange from this Tvb.

Arguments
offset (optional)
The offset (in octets) from the beginning of the Tvb. Defaults to 0.
length (optional)
The length (in octets) of the range. Defaults to -1, which specifies the remaining bytes in the Tvb.

The TvbRange

11.6.2.10. tvb:raw([offset], [length])

Obtain a Lua string of the binary bytes in a Tvb.

Since: 1.11.3

Arguments
offset (optional)
The position of the first byte. Default is 0, or the first byte.
length (optional)
The length of the segment to get. Default is -1, or the remaining bytes in the Tvb.
Returns

A Lua string of the binary bytes in the Tvb.

11.6.2.11. tvb:__eq()

Checks whether contents of two Tvbs are equal.

Since: 1.99.8

11.6.3. TvbRange

A TvbRange represents a usable range of a Tvb and is used to extract data from the Tvb that generated it.

TvbRanges are created by calling a Tvb (e.g. 'tvb(offset,length)'). If the TvbRange span is outside the Tvb's range the creation will cause a runtime error.

11.6.3.1. tvbrange:tvb()

Creates a new Tvb from a TvbRange.

11.6.3.2. tvbrange:uint()

Get a Big Endian (network order) unsigned integer from a TvbRange. The range must be 1-4 octets long.

Returns

The unsigned integer value.

11.6.3.3. tvbrange:le_uint()

Get a Little Endian unsigned integer from a TvbRange. The range must be 1-4 octets long.

Returns

The unsigned integer value

11.6.3.4. tvbrange:uint64()

Get a Big Endian (network order) unsigned 64 bit integer from a TvbRange, as a UInt64 object. The range must be 1-8 octets long.

Returns

The UInt64 object.

11.6.3.5. tvbrange:le_uint64()

Get a Little Endian unsigned 64 bit integer from a TvbRange, as a UInt64 object. The range must be 1-8 octets long.

Returns

The UInt64 object.

11.6.3.6. tvbrange:int()

Get a Big Endian (network order) signed integer from a TvbRange. The range must be 1-4 octets long.

Returns

The signed integer value.

11.6.3.7. tvbrange:le_int()

Get a Little Endian signed integer from a TvbRange. The range must be 1-4 octets long.

Returns

The signed integer value.

11.6.3.8. tvbrange:int64()

Get a Big Endian (network order) signed 64 bit integer from a TvbRange, as an Int64 object. The range must be 1-8 octets long.

Returns

The Int64 object.

11.6.3.9. tvbrange:le_int64()

Get a Little Endian signed 64 bit integer from a TvbRange, as an Int64 object. The range must be 1-8 octets long.

Returns

The Int64 object.

11.6.3.10. tvbrange:float()

Get a Big Endian (network order) floating point number from a TvbRange. The range must be 4 or 8 octets long.

Returns

The floating point value.

11.6.3.11. tvbrange:le_float()

Get a Little Endian floating point number from a TvbRange. The range must be 4 or 8 octets long.

Returns

The floating point value.

11.6.3.12. tvbrange:ipv4()

Get an IPv4 Address from a TvbRange, as an Address object.

Returns

The IPv4 Address object.

11.6.3.13. tvbrange:le_ipv4()

Get an Little Endian IPv4 Address from a TvbRange, as an Address object.

Returns

The IPv4 Address object.

11.6.3.14. tvbrange:ipv6()

Get an IPv6 Address from a TvbRange, as an Address object.

Returns

The IPv6 Address object.

11.6.3.15. tvbrange:ether()

Get an Ethernet Address from a TvbRange, as an Address object.

Returns

The Ethernet Address object.

Errors
• The range must be 6 bytes long

11.6.3.16. tvbrange:nstime([encoding])

Obtain a time_t structure from a TvbRange, as an NSTime object.

Arguments
encoding (optional)
An optional ENC_* encoding value to use
Returns

The NSTime object and number of bytes used, or nil on failure.

Errors
• The range must be 4 or 8 bytes long

11.6.3.17. tvbrange:le_nstime()

Obtain a nstime from a TvbRange, as an NSTime object.

Returns

The NSTime object.

Errors
• The range must be 4 or 8 bytes long

11.6.3.18. tvbrange:string([encoding])

Obtain a string from a TvbRange.

Arguments
encoding (optional)
The encoding to use. Defaults to ENC_ASCII.
Returns

A string containing all bytes in the TvbRange including all zeroes (e.g., "a\000bc\000").

11.6.3.19. tvbrange:ustring()

Obtain a Big Endian (network order) UTF-16 encoded string from a TvbRange.

Returns

A string containing all bytes in the TvbRange including all zeroes (e.g., "a\000bc\000").

11.6.3.20. tvbrange:le_ustring()

Obtain a Little Endian UTF-16 encoded string from a TvbRange.

Returns

A string containing all bytes in the TvbRange including all zeroes (e.g., "a\000bc\000").

11.6.3.21. tvbrange:stringz([encoding])

Obtain a zero terminated string from a TvbRange.

Arguments
encoding (optional)
The encoding to use. Defaults to ENC_ASCII.
Returns

The string containing all bytes in the TvbRange up to the first terminating zero.

11.6.3.22. tvbrange:strsize([encoding])

Find the size of a zero terminated string from a TvbRange. The size of the string includes the terminating zero.

Since: 1.11.3

Arguments
encoding (optional)
The encoding to use. Defaults to ENC_ASCII.
Returns

Length of the zero terminated string.

11.6.3.23. tvbrange:ustringz()

Obtain a Big Endian (network order) UTF-16 encoded zero terminated string from a TvbRange.

Returns

Two return values: the zero terminated string, and the length.

11.6.3.24. tvbrange:le_ustringz()

Obtain a Little Endian UTF-16 encoded zero terminated string from a TvbRange

Returns

Two return values: the zero terminated string, and the length.

11.6.3.25. tvbrange:bytes([encoding])

Obtain a ByteArray from a TvbRange.

Starting in 1.11.4, this function also takes an optional encoding argument, which can be set to ENC_STR_HEX to decode a hex-string from the TvbRange into the returned ByteArray. The encoding can be bitwise-or’ed with one or more separator encodings, such as ENC_SEP_COLON, to allow separators to occur between each pair of hex characters.

The return value also now returns the number of bytes used as a second return value.

On failure or error, nil is returned for both return values.

Note The encoding type of the hex string should also be set, for example ENC_ASCII or ENC_UTF_8, along with ENC_STR_HEX.
Arguments
encoding (optional)
An optional ENC_* encoding value to use
Returns

The ByteArray object or nil, and number of bytes consumed or nil.

11.6.3.26. tvbrange:bitfield([position], [length])

Get a bitfield from a TvbRange.

Arguments
position (optional)
The bit offset (MSB 0 bit numbering) from the beginning of the TvbRange. Defaults to 0.
length (optional)
The length in bits of the field. Defaults to 1.
Returns

The bitfield value

11.6.3.27. tvbrange:range([offset], [length])

Creates a sub-TvbRange from this TvbRange.

Arguments
offset (optional)
The offset (in octets) from the beginning of the TvbRange. Defaults to 0.
length (optional)
The length (in octets) of the range. Defaults to until the end of the TvbRange.

11.6.3.28. tvbrange:uncompress(name)

Obtain an uncompressed TvbRange from a TvbRange

Arguments
name
The name to be given to the new data-source.

11.6.3.29. tvbrange:len()

Obtain the length of a TvbRange.

11.6.3.30. tvbrange:offset()

Obtain the offset in a TvbRange.

11.6.3.31. tvbrange:raw([offset], [length])

Obtain a Lua string of the binary bytes in a TvbRange.

Since: 1.11.3

Arguments
offset (optional)
The position of the first byte within the range. Default is 0, or first byte.
length (optional)
The length of the segment to get. Default is -1, or the remaining bytes in the range.
Returns

A Lua string of the binary bytes in the TvbRange.

11.6.3.32. tvbrange:__eq()

Checks whether the contents of two TvbRanges are equal.

Since: 1.99.8

11.6.3.33. tvbrange:__tostring()

Converts the TvbRange into a string. The string can be truncated, so this is primarily useful for debugging or in cases where truncation is preferred, e.g. "67:89:AB:…​".

Returns

A Lua hex string of the TvbRange truncated to 24 bytes.

11.7. Adding Information To The Dissection Tree

11.7.1. TreeItem

TreeItems represent information in the packet details pane of Wireshark, and the packet details view of TShark. A TreeItem represents a node in the tree, which might also be a subtree and have a list of children. The children of a subtree have zero or more siblings which are other children of the same TreeItem subtree.

During dissection, heuristic-dissection, and post-dissection, a root TreeItem is passed to dissectors as the third argument of the function callback (e.g., myproto.dissector(tvbuf,pktinfo,root)).

In some cases the tree is not truly added to, in order to improve performance. For example for packets not currently displayed/selected in Wireshark’s visible window pane, or if TShark isn’t invoked with the -V switch. However the "add" type TreeItem functions can still be called, and still return TreeItem objects - but the info isn’t really added to the tree. Therefore you do not typically need to worry about whether there’s a real tree or not. If, for some reason, you need to know it, you can use the TreeItem.visible attribute getter to retrieve the state.

Adds a new child tree for the given ProtoField object to this tree item, returning the new child TreeItem.

Unlike TreeItem:add() and TreeItem:add_le(), the ProtoField argument is not optional, and cannot be a Proto object. Instead, this function always uses the ProtoField to determine the type of field to extract from the passed-in TvbRange, highlighting the relevant bytes in the Packet Bytes pane of the GUI (if there is a GUI), etc. If no TvbRangeis given, no bytes are highlighted and the field’s value cannot be determined; the ProtoField must have been defined/created not to have a length in such a case, or an error will occur. For backwards-compatibility reasons the encoding argument, however, must still be given.

Unlike TreeItem:add() and TreeItem:add_le(), this function performs both big-endian and little-endian decoding, by setting the encoding argument to be ENC_BIG_ENDIAN or ENC_LITTLE_ENDIAN.

The signature of this function:

     tree_item:add_packet_field(proto_field [,tvbrange], encoding, ...)

In Wireshark version 1.11.3, this function was changed to return more than just the new child TreeItem. The child is the first return value, so that function chaining will still work as before; but it now also returns the value of the extracted field (i.e., a number, UInt64, Address, etc.). If the value could not be extracted from the TvbRange, the child TreeItem is still returned, but the second returned value is nil.

Another new feature added to this function in Wireshark version 1.11.3 is the ability to extract native number ProtoFields from string encoding in the TvbRange, for ASCII-based and similar string encodings. For example, a ProtoField of type ftypes.UINT32 can be extracted from a TvbRange containing the ASCII string "123", and it will correctly decode the ASCII to the number 123, both in the tree as well as for the second return value of this function. To do so, you must set the encoding argument of this function to the appropriate string ENC_* value, bitwise-or’d with the ENC_STRING value (see init.lua). ENC_STRING is guaranteed to be a unique bit flag, and thus it can added instead of bitwise-or’ed as well. Only single-byte ASCII digit string encoding types can be used for this, such as ENC_ASCII and ENC_UTF_8.

For example, assuming the Tvb named tvb contains the string "123":

     -- this is done earlier in the script
local myfield = ProtoField.new("Transaction ID", "myproto.trans_id", ftypes.UINT16)

-- this is done inside a dissector, post-dissector, or heuristic function
-- child will be the created child tree, and value will be the number 123 or nil on failure
local child, value = tree:add_packet_field(myfield, tvb:range(0,3), ENC_UTF_8 + ENC_STRING)
Arguments
protofield
The ProtoField field object to add to the tree.
tvbrange (optional)
The TvbRange of bytes in the packet this tree item covers/represents.
encoding
The field’s encoding in the TvbRange.
label (optional)
One or more strings to append to the created TreeItem.
Returns

The new child TreeItem, the field’s extracted value or nil, and offset or nil.

Adds a child item to this tree item, returning the new child TreeItem.

If the ProtoField represents a numeric value (int, uint or float), then it’s treated as a Big Endian (network order) value.

This function has a complicated form: 'treeitem:add([protofield,] [tvbrange,] value], label)', such that if the first argument is a ProtoField or a Proto, the second argument is a TvbRange, and a third argument is given, it’s a value; but if the second argument is a non-TvbRange, then it’s the value (as opposed to filling that argument with 'nil', which is invalid for this function). If the first argument is a non-ProtoField and a non-Proto then this argument can be either a TvbRange or a label, and the value is not in use.

11.7.2. Example

    local proto_foo = Proto("foo", "Foo Protocol")
proto_foo.fields.bytes = ProtoField.bytes("foo.bytes", "Byte array")
proto_foo.fields.u16 = ProtoField.uint16("foo.u16", "Unsigned short", base.HEX)

function proto_foo.dissector(buf, pinfo, tree)
-- ignore packets less than 4 bytes long
if buf:len() < 4 then return end

-- ##############################################
-- # Assume buf(0,4) == {0x00, 0x01, 0x00, 0x02}
-- ##############################################

local t = tree:add( proto_foo, buf() )

-- Adds a byte array that shows as: "Byte array: 00010002"

-- Adds a byte array that shows as "Byte array: 313233"
-- (the ASCII char code of each character in "123")

-- Adds a tree item that shows as: "Unsigned short: 0x0001"

-- Adds a tree item that shows as: "Unsigned short: 0x0064"

-- Adds a tree item that shows as: "Unsigned short: 0x0064 ( big endian )"
t:add( proto_foo.fields.u16, buf(1,2), 100, nil, "(", nil, "big", 999, nil, "endian", nil, ")" )

-- LITTLE ENDIAN: Adds a tree item that shows as: "Unsigned short: 0x0100"

-- LITTLE ENDIAN: Adds a tree item that shows as: "Unsigned short: 0x6400"

-- LITTLE ENDIAN: Adds a tree item that shows as: "Unsigned short: 0x6400 ( little endian )"
t:add_le( proto_foo.fields.u16, buf(1,2), 100, nil, "(", nil, "little", 999, nil, "endian", nil, ")" )
end

udp_table = DissectorTable.get("udp.port")
udp_table:add(7777, proto_foo)
Arguments
protofield (optional)
The ProtoField field or Proto protocol object to add to the tree.
tvbrange (optional)
The TvbRange of bytes in the packet this tree item covers/represents.
value (optional)
The field’s value, instead of the ProtoField/Proto one.
label (optional)
One or more strings to use for the tree item label, instead of the ProtoField/Proto one.
Returns

The new child TreeItem.

Adds a child item to this tree item, returning the new child TreeItem.

If the ProtoField represents a numeric value (int, uint or float), then it’s treated as a Little Endian value.

This function has a complicated form: 'treeitem:add_le([protofield,] [tvbrange,] value], label)', such that if the first argument is a ProtoField or a Proto, the second argument is a TvbRange, and a third argument is given, it’s a value; but if the second argument is a non-TvbRange, then it’s the value (as opposed to filling that argument with 'nil', which is invalid for this function). If the first argument is a non-ProtoField and a non-Proto then this argument can be either a TvbRange or a label, and the value is not in use.

Arguments
protofield (optional)
The ProtoField field or Proto protocol object to add to the tree.
tvbrange (optional)
The TvbRange of bytes in the packet this tree item covers/represents.
value (optional)
The field’s value, instead of the ProtoField/Proto one.
label (optional)
One or more strings to use for the tree item label, instead of the ProtoField/Proto one.
Returns

The new child TreeItem.

11.7.2.2. treeitem:set_text(text)

Sets the text of the label.

This used to return nothing, but as of 1.11.3 it returns the same tree item to allow chained calls.

Arguments
text
The text to be used.
Returns

The same TreeItem.

11.7.2.3. treeitem:append_text(text)

Appends text to the label.

This used to return nothing, but as of 1.11.3 it returns the same tree item to allow chained calls.

Arguments
text
The text to be appended.
Returns

The same TreeItem.

11.7.2.4. treeitem:prepend_text(text)

Prepends text to the label.

This used to return nothing, but as of 1.11.3 it returns the same tree item to allow chained calls.

Arguments
text
The text to be prepended.
Returns

The same TreeItem.

Sets the expert flags of the item and adds expert info to the packet.

This function does not create a truly filterable expert info for a protocol. Instead you should use TreeItem.add_proto_expert_info().

Note: This function is provided for backwards compatibility only, and should not be used in new Lua code. It may be removed in the future. You should only use TreeItem.add_proto_expert_info().

Arguments
group (optional)
One of PI_CHECKSUM, PI_SEQUENCE, PI_RESPONSE_CODE, PI_REQUEST_CODE, PI_UNDECODED, PI_REASSEMBLE, PI_MALFORMED or PI_DEBUG.
severity (optional)
One of PI_CHAT, PI_NOTE, PI_WARN, or PI_ERROR.
text (optional)
The text for the expert info display.
Returns

The same TreeItem.

Sets the expert flags of the tree item and adds expert info to the packet.

Since: 1.11.3

Arguments
expert
The ProtoExpert object to add to the tree.
text (optional)
Text for the expert info display (default is to use the registered text).
Returns

The same TreeItem.

Sets the expert flags of the tree item and adds expert info to the packet associated with the Tvb or TvbRange bytes in the packet.

Since: 1.11.3

Arguments
expert
The ProtoExpert object to add to the tree.
tvb
The Tvb or TvbRange object bytes to associate the expert info with.
text (optional)
Text for the expert info display (default is to use the registered text).
Returns

The same TreeItem.

11.7.2.8. treeitem:set_generated([bool])

Marks the TreeItem as a generated field (with data inferred but not contained in the packet).

This used to return nothing, but as of 1.11.3 it returns the same tree item to allow chained calls.

Arguments
bool (optional)
A Lua boolean, which if true sets the TreeItem generated flag, else clears it (default=true)
Returns

The same TreeItem.

11.7.2.9. treeitem:set_hidden([bool])

Marks the TreeItem as a hidden field (neither displayed nor used in filters). Deprecated

This used to return nothing, but as of 1.11.3 it returns the same tree item to allow chained calls.

Arguments
bool (optional)
A Lua boolean, which if true sets the TreeItem hidden flag, else clears it. Default is true.
Returns

The same TreeItem.

11.7.2.10. treeitem:set_len(len)

Set TreeItem's length inside tvb, after it has already been created.

This used to return nothing, but as of 1.11.3 it returns the same tree item to allow chained calls.

Arguments
len
The length to be used.
Returns

The same TreeItem.

11.7.2.11. treeitem:referenced(protofield)

Checks if a ProtoField or Dissector is referenced by a filter/tap/UI.

If this function returns false, it means that the field (or dissector) does not need to be dissected and can be safely skipped. By skipping a field rather than dissecting it, the dissector will usually run faster since Wireshark will not do extra dissection work when it doesn’t need the field.

You can use this in conjunction with the TreeItem.visible attribute. This function will always return TRUE when the TreeItem is visible. When it is not visible and the field is not referenced, you can speed up the dissection by not dissecting the field as it is not needed for display or filtering.

This function takes one parameter that can be a ProtoField or Dissector. The Dissector form is useful when you need to decide whether to call a sub-dissector.

Since: 2.4.0

Arguments
protofield
The ProtoField or Dissector to check if referenced.
Returns

A boolean indicating if the ProtoField/Dissector is referenced

11.7.2.12. treeitem:__tostring()

Returns string debug information about the TreeItem.

Since: 1.99.8

11.7.2.13. treeitem.text

Mode: Retrieve or assign.

Set/get the TreeItem's display string (string).

For the getter, if the TreeItem has no display string, then nil is returned.

Since: 1.99.3

11.7.2.14. treeitem.visible

Mode: Retrieve only.

Get the TreeItem's subtree visibility status (boolean).

Since: 1.99.8

11.7.2.15. treeitem.generated

Mode: Retrieve or assign.

Set/get the TreeItem's generated state (boolean).

Since: 1.99.8

11.7.2.16. treeitem.hidden

Mode: Retrieve or assign.

Set/get TreeItem's hidden state (boolean).

Since: 1.99.8

11.7.2.17. treeitem.len

Mode: Retrieve or assign.

Set/get TreeItem's length inside tvb, after it has already been created.

Since: 1.99.8

11.8. Post-Dissection Packet Analysis

11.8.1. Listener

A Listener is called once for every packet that matches a certain filter or has a certain tap. It can read the tree, the packet’s Tvb buffer as well as the tapped data, but it cannot add elements to the tree.

11.8.1.1. Listener.new([tap], [filter], [allfields])

Creates a new Listener tap object.

Arguments
tap (optional)
The name of this tap. See Listener.list() for a way to print valid listener names.
filter (optional)
A display filter to apply to the tap. The tap.packet function will be called for each matching packet. The default is nil, which matches every packet. Example: "m2tp".
allfields (optional)
Whether to generate all fields. The default is false. Note: This impacts performance.
Returns

The newly created Listener listener object

Errors
• tap registration error

11.8.1.2. Listener.list()

Gets a Lua array table of all registered Listener tap names.

Note: This is an expensive operation, and should only be used for troubleshooting.

Since: 1.11.3

11.8.1.3. Example

    -- Print a list of tap listeners to stdout.
for _,tap_name in pairs(Listener.list()) do
print(tap_name)
end
Returns

The array table of registered tap names

11.8.1.4. listener:remove()

Removes a tap Listener.

11.8.1.5. listener:__tostring()

Generates a string of debug info for the tap Listener.

11.8.1.6. listener.packet

Mode: Assign only.

A function that will be called once every packet matches the Listener listener filter.

When later called by Wireshark, the packet function will be given:

1. A Pinfo object
2. A Tvb object
3. A tapinfo table
    function tap.packet(pinfo,tvb,tapinfo) ... end
Note tapinfo is a table of info based on the Listener type, or nil. See epan/wslua/taps for tapinfo structure definitions.

11.8.1.7. listener.draw

Mode: Assign only.

A function that will be called once every few seconds to redraw the GUI objects; in TShark this funtion is called only at the very end of the capture file.

When later called by Wireshark, the draw function will not be given any arguments.

    function tap.draw() ... end

11.8.1.8. listener.reset

Mode: Assign only.

A function that will be called at the end of the capture run.

When later called by Wireshark, the reset function will not be given any arguments.

    function tap.reset() ... end

11.9. Saving Capture Files

The classes/functions defined in this module are for using a Dumper object to make Wireshark save a capture file to disk. Dumper represents Wireshark’s built-in file format writers (see the wtap_name_to_file_type_subtype function).

(The wtap_filetypes table in init.lua is deprecated, and should only be used in code that must run on Wireshark 3.4.3 and earlier 3.4 releases or in Wireshark 3.2.11 and earlier 3.2.x releases.)

To have a Lua script create its own file format writer, see the chapter titled "Custom file format reading/writing".

11.9.1. Dumper

11.9.1.1. Dumper.new(filename, [filetype], [encap])

Creates a file to write packets. Dumper:new_for_current() will probably be a better choice.

Arguments
filename
The name of the capture file to be created.
filetype (optional)
The type of the file to be created - a number returned by wtap_name_to_file_type_subtype(). (The wtap_filetypes table in init.lua is deprecated, and should only be used in code that must run on Wireshark 3.4.3 and earlier 3.4 releases or in Wireshark 3.2.11 and earlier 3.2.x releases.)
encap (optional)
The encapsulation to be used in the file to be created - a number entry from the wtap_encaps table in init.lua.
Returns

The newly created Dumper object

11.9.1.2. dumper:close()

Closes a dumper.

Errors
• Cannot operate on a closed dumper

11.9.1.3. dumper:flush()

Writes all unsaved data of a dumper to the disk.

Dumps an arbitrary packet. Note: Dumper:dump_current() will fit best in most cases.

Arguments
timestamp
The absolute timestamp the packet will have.
The PseudoHeader to use.
bytearray
The data to be saved

11.9.1.5. dumper:new_for_current([filetype])

Creates a capture file using the same encapsulation as the one of the current packet.

Arguments
filetype (optional)
The file type. Defaults to pcap.
Returns

The newly created Dumper Object

Errors
• Cannot be used outside a tap or a dissector

11.9.1.6. dumper:dump_current()

Dumps the current packet as it is.

Errors
• Cannot be used outside a tap or a dissector

A pseudoheader to be used to save captured frames.

Arguments
fcslen (optional)
The fcs length

11.9.2.3. PseudoHeader.atm([aal], [vpi], [vci], [channel], [cells], [aal5u2u], [aal5len])

Arguments
aal (optional)
AAL number
vpi (optional)
VPI
vci (optional)
VCI
channel (optional)
Channel
cells (optional)
Number of cells in the PDU
aal5u2u (optional)
AAL5 User to User indicator
aal5len (optional)
AAL5 Len

Arguments
sent (optional)
True if the packet is sent, False if received.
annexa (optional)
True if annex A is used.

11.10. Wtap Functions For Handling Capture File Types

11.10.1. Global Functions

11.10.1.1. wtap_file_type_subtype_description(filetype)

Get a string describing a capture file type, given a filetype value for that file type.

Since: 3.2.12, 3.4.4

Arguments
filetype
The type for which the description is to be fetched - a number returned by wtap_name_to_file_type_subtype().
Returns

The description of the file type with that filetype value, or nil if there is no such file type.

11.10.1.2. wtap_file_type_subtype_name(filetype)

Get a string giving the name for a capture file type, given a filetype value for that file type.

Since: 3.2.12, 3.4.4

Arguments
filetype
The type for which the name is to be fetched - a number returned by wtap_name_to_file_type_subtype().
Returns

The name of the file type with that filetype value, or nil if there is no such file type.

11.10.1.3. wtap_name_to_file_type_subtype(name)

Get a filetype value for a file type, given the name for that file type.

Since: 3.2.12, 3.4.4

Arguments
name
The name of a file type.
Returns

The filetype value for the file type with that name, or nil if there is no such file type.

11.10.1.4. wtap_pcap_file_type_subtype()

Get the filetype value for pcap files.

Since: 3.2.12, 3.4.4

Returns

The filetype value for pcap files.

11.10.1.5. wtap_pcap_nsec_file_type_subtype()

Get the filetype value for nanosecond-resolution pcap files.

Since: 3.2.12, 3.4.4

Returns

The filetype value for nanosecond-resolution pcap files.

11.10.1.6. wtap_pcapng_file_type_subtype()

Get the filetype value for pcapng files.

Since: 3.2.12, 3.4.4

Returns

The filetype value for pcapng files.

The table.

11.11. Custom File Format Reading And Writing

The classes/functions defined in this section allow you to create your own custom Lua-based "capture" file reader, or writer, or both.

Since: 1.11.3

11.11.1. CaptureInfo

A CaptureInfo object, passed into Lua as an argument by FileHandler callback function read_open(), read(), seek_read(), seq_read_close(), and read_close(). This object represents capture file data and meta-data (data about the capture file) being read into Wireshark/TShark.

This object’s fields can be written-to by Lua during the read-based function callbacks. In other words, when the Lua plugin’s FileHandler.read_open() function is invoked, a CaptureInfo object will be passed in as one of the arguments, and its fields should be written to by your Lua code to tell Wireshark about the capture.

Since: 1.11.3

11.11.1.1. captureinfo:__tostring()

Generates a string of debug info for the CaptureInfo

Returns

String of debug information.

11.11.1.2. captureinfo.encap

Mode: Retrieve or assign.

The packet encapsulation type for the whole file.

See wtap_encaps in init.lua for available types. Set to wtap_encaps.PER_PACKET if packets can have different types, then later set FrameInfo.encap for each packet during read()/seek_read().

11.11.1.3. captureinfo.time_precision

Mode: Retrieve or assign.

The precision of the packet timestamps in the file.

See wtap_file_tsprec in init.lua for available precisions.

11.11.1.4. captureinfo.snapshot_length

Mode: Retrieve or assign.

The maximum packet length that could be recorded.

Setting it to 0 means unknown.

11.11.1.5. captureinfo.comment

Mode: Retrieve or assign.

A string comment for the whole capture file, or nil if there is no comment.

11.11.1.6. captureinfo.hardware

Mode: Retrieve or assign.

A string containing the description of the hardware used to create the capture, or nil if there is no hardware string.

11.11.1.7. captureinfo.os

Mode: Retrieve or assign.

A string containing the name of the operating system used to create the capture, or nil if there is no os string.

11.11.1.8. captureinfo.user_app

Mode: Retrieve or assign.

A string containing the name of the application used to create the capture, or nil if there is no user_app string.

11.11.1.9. captureinfo.hosts

Mode: Assign only.

Sets resolved ip-to-hostname information.

The value set must be a Lua table of two key-ed names: ipv4_addresses and ipv6_addresses. The value of each of these names are themselves array tables, of key-ed tables, such that the inner table has a key addr set to the raw 4-byte or 16-byte IP address Lua string and a name set to the resolved name.

For example, if the capture file identifies one resolved IPv4 address of 1.2.3.4 to foo.com, then you must set CaptureInfo.hosts to a table of:

    { ipv4_addresses = { { addr = "\01\02\03\04", name = "foo.com" } } }

Note that either the ipv4_addresses or the ipv6_addresses table, or both, may be empty or nil.

11.11.1.10. captureinfo.private_table

Mode: Retrieve or assign.

A private Lua value unique to this file.

The private_table is a field you set/get with your own Lua table. This is provided so that a Lua script can save per-file reading/writing state, because multiple files can be opened and read at the same time.

For example, if the user issued a reload-file command, or Lua called the reload() function, then the current capture file is still open while a new one is being opened, and thus Wireshark will invoke read_open() while the previous capture file has not caused read_close() to be called; and if the read_open() succeeds then read_close() will be called right after that for the previous file, rather than the one just opened. Thus the Lua script can use this private_table to store a table of values specific to each file, by setting this private_table in the read_open() function, which it can then later get back inside its read(), seek_read(), and read_close() functions.

11.11.2. CaptureInfoConst

A CaptureInfoConst object, passed into Lua as an argument to the FileHandler callback function write_open().

This object represents capture file data and meta-data (data about the capture file) for the current capture in Wireshark/TShark.

This object’s fields are read-from when used by write_open function callback. In other words, when the Lua plugin’s FileHandler write_open function is invoked, a CaptureInfoConst object will be passed in as one of the arguments, and its fields should be read from by your Lua code to get data about the capture that needs to be written.

Since: 1.11.3

11.11.2.1. captureinfoconst:__tostring()

Generates a string of debug info for the CaptureInfoConst

Returns

String of debug information.

11.11.2.2. captureinfoconst.type

Mode: Retrieve only.

The file type.

11.11.2.3. captureinfoconst.snapshot_length

Mode: Retrieve only.

The maximum packet length that is actually recorded (vs. the original length of any given packet on-the-wire). A value of 0 means the snapshot length is unknown or there is no one such length for the whole file.

11.11.2.4. captureinfoconst.encap

Mode: Retrieve only.

The packet encapsulation type for the whole file.

See wtap_encaps in init.lua for available types. It is set to wtap_encaps.PER_PACKET if packets can have different types, in which case each Frame identifies its type, in FrameInfo.packet_encap.

11.11.2.5. captureinfoconst.comment

Mode: Retrieve or assign.

A comment for the whole capture file, if the wtap_presence_flags.COMMENTS was set in the presence flags; nil if there is no comment.

11.11.2.6. captureinfoconst.hardware

Mode: Retrieve only.

A string containing the description of the hardware used to create the capture, or nil if there is no hardware string.

11.11.2.7. captureinfoconst.os

Mode: Retrieve only.

A string containing the name of the operating system used to create the capture, or nil if there is no os string.

11.11.2.8. captureinfoconst.user_app

Mode: Retrieve only.

A string containing the name of the application used to create the capture, or nil if there is no user_app string.

11.11.2.9. captureinfoconst.hosts

Mode: Retrieve only.

A ip-to-hostname Lua table of two key-ed names: ipv4_addresses and ipv6_addresses. The value of each of these names are themselves array tables, of key-ed tables, such that the inner table has a key addr set to the raw 4-byte or 16-byte IP address Lua string and a name set to the resolved name.

For example, if the current capture has one resolved IPv4 address of 1.2.3.4 to foo.com, then getting CaptureInfoConst.hosts will get a table of:

    { ipv4_addresses = { { addr = "\01\02\03\04", name = "foo.com" } }, ipv6_addresses = { } }

Note that either the ipv4_addresses or the ipv6_addresses table, or both, may be empty, however they will not be nil.

11.11.2.10. captureinfoconst.private_table

Mode: Retrieve or assign.

A private Lua value unique to this file.

The private_table is a field you set/get with your own Lua table. This is provided so that a Lua script can save per-file reading/writing state, because multiple files can be opened and read at the same time.

For example, if two Lua scripts issue a Dumper:new_for_current() call and the current file happens to use your script’s writer, then the Wireshark will invoke write_open() while the previous capture file has not had write_close() called. Thus the Lua script can use this private_table to store a table of values specific to each file, by setting this private_table in the write_open() function, which it can then later get back inside its write(), and write_close() functions.

11.11.3. File

A File object, passed into Lua as an argument by FileHandler callback functions (e.g., read_open, read, write, etc.). This behaves similarly to the Lua io library’s file object, returned when calling io.open(), except in this case you cannot call file:close(), file:open(), nor file:setvbuf(), since Wireshark/TShark manages the opening and closing of files. You also cannot use the io library itself on this object, i.e. you cannot do io.read(file, 4). Instead, use this File with the object-oriented style calling its methods, i.e. myfile:read(4). (see later example)

The purpose of this object is to hide the internal complexity of how Wireshark handles files, and instead provide a Lua interface that is familiar, by mimicking the io library. The reason true/raw io files cannot be used is because Wireshark does many things under the hood, such as compress the file, or write to stdout, or various other things based on configuration/commands.

When a File object is passed in through reading-based callback functions, such as read_open(), read(), and read_close(), then the File object’s write() and flush() functions are not usable and will raise an error if used.

When a File object is passed in through writing-based callback functions, such as write_open(), write(), and write_close(), then the File object’s read() and lines() functions are not usable and will raise an error if used.

Note: A File object should never be stored/saved beyond the scope of the callback function it is passed in to.

For example:

    function myfilehandler.read_open(file, capture)
local position = file:seek()

-- do stuff

-- it's not our file type, seek back (unnecessary but just to show it...)
file:seek("set",position)

-- return false because it's not our file type
return false
end

Since: 1.11.3

Reads from the File, similar to Lua’s file:read(). See Lua 5.x ref manual for file:read().

11.11.3.2. file:seek()

Seeks in the File, similar to Lua’s file:seek(). See Lua 5.x ref manual for file:seek().

Returns

The current file cursor position as a number.

11.11.3.3. file:lines()

Lua iterator function for retrieving ASCII File lines, similar to Lua’s file:lines(). See Lua 5.x ref manual for file:lines().

11.11.3.4. file:write()

Writes to the File, similar to Lua’s file:write(). See Lua 5.x ref manual for file:write().

11.11.3.5. file:__tostring()

Generates a string of debug info for the File object

Returns

String of debug information.

11.11.3.6. file.compressed

Mode: Retrieve only.

Whether the File is compressed or not.

See wtap_encaps in init.lua for available types. Set to wtap_encaps.PER_PACKET if packets can have different types, then later set FrameInfo.encap for each packet during read()/seek_read().

11.11.4. FileHandler

A FileHandler object, created by a call to FileHandler.new(arg1, arg2, …​). The FileHandler object lets you create a file-format reader, or writer, or both, by setting your own read_open/read or write_open/write functions.

Since: 1.11.3

11.11.4.1. FileHandler.new(description, name, internal_description, type)

Creates a new FileHandler

Arguments
description
A description of the file type, for display purposes only. E.g., "Wireshark - pcapng"
name
The file type name, used to look up the file type in various places. E.g., "pcapng". Note: The name cannot already be in use.
internal_description
type
The type of FileHandler, "r"/"w"/"rw" for reader/writer/both, include "m" for magic, "s" for strong heuristic
Returns

The newly created FileHandler object

11.11.4.2. filehandler:__tostring()

Generates a string of debug info for the FileHandler

Returns

String of debug information.

Mode: Assign only.

The Lua function to be called when Wireshark opens a file for reading.

When later called by Wireshark, the Lua function will be given:

1. A File object
2. A CaptureInfo object

The purpose of the Lua function set to this read_open field is to check if the file Wireshark is opening is of its type, for example by checking for magic numbers or trying to parse records in the file, etc. The more can be verified the better, because Wireshark tries all file readers until it finds one that accepts the file, so accepting an incorrect file prevents other file readers from reading their files.

The called Lua function should return true if the file is its type (it accepts it), false if not. The Lua function must also set the File offset position (using file:seek()) to where it wants it to be for its first read() call.

Mode: Assign only.

The Lua function to be called when Wireshark wants to read a packet from the file.

When later called by Wireshark, the Lua function will be given:

1. A File object
2. A CaptureInfo object
3. A FrameInfo object

The purpose of the Lua function set to this read field is to read the next packet from the file, and setting the parsed/read packet into the frame buffer using FrameInfo.data = foo or FrameInfo:read_data(file, frame.captured_length).

The called Lua function should return the file offset/position number where the packet begins, or false if it hit an error. The file offset will be saved by Wireshark and passed into the set seek_read() Lua function later.

Mode: Assign only.

The Lua function to be called when Wireshark wants to read a packet from the file at the given offset.

When later called by Wireshark, the Lua function will be given:

1. A File object
2. A CaptureInfo object
3. A FrameInfo object
4. The file offset number previously set by the read() function call

The called Lua function should return true if the read was successful, or false if it hit an error. Since 2.4.0, a number is also acceptable to signal success, this allows for reuse of FileHandler:read:

    local function fh_read(file, capture, frame) ... end

if not file:seek("set", offset) then
-- Seeking failed, return failure
return false
end

-- Now try to read one frame
end

Since 3.6.0, it’s possible to omit the FileHandler:seek_read() function to get a default seek_read implementation.

Mode: Assign only.

The Lua function to be called when Wireshark wants to close the read file completely.

When later called by Wireshark, the Lua function will be given:

1. A File object
2. A CaptureInfo object

It is not necessary to set this field to a Lua function - FileHandler can be registered without doing so - it is available in case there is memory/state to clear in your script when the file is closed.

Mode: Assign only.

The Lua function to be called when Wireshark wants to close the sequentially-read file.

When later called by Wireshark, the Lua function will be given:

1. A File object
2. A CaptureInfo object

It is not necessary to set this field to a Lua function - FileHandler can be registered without doing so - it is available in case there is memory/state to clear in your script when the file is closed for the sequential reading portion. After this point, there will be no more calls to read(), only seek_read().

11.11.4.8. filehandler.can_write_encap

Mode: Assign only.

The Lua function to be called when Wireshark wants to write a file, by checking if this file writer can handle the wtap packet encapsulation(s).

When later called by Wireshark, the Lua function will be given a Lua number, which matches one of the encapsulations in the Lua wtap_encaps table. This might be the wtap_encap.PER_PACKET number, meaning the capture contains multiple encapsulation types, and the file reader should only return true if it can handle multiple encap types in one file. The function will then be called again, once for each encap type in the file, to make sure it can write each one.

If the Lua file writer can write the given type of encapsulation into a file, then it returns the boolean true, else false.

11.11.4.9. filehandler.write_open

Mode: Assign only.

The Lua function to be called when Wireshark opens a file for writing.

When later called by Wireshark, the Lua function will be given:

1. A File object
2. A CaptureInfoConst object

The purpose of the Lua function set to this write_open field is similar to the read_open callback function: to initialize things necessary for writing the capture to a file. For example, if the output file format has a file header, then the file header should be written within this write_open function.

The called Lua function should return true on success, or false if it hit an error.

Also make sure to set the FileHandler.write (and potentially FileHandler.write_finish) functions before returning true from this function.

11.11.4.10. filehandler.write

Mode: Assign only.

The Lua function to be called when Wireshark wants to write a packet to the file.

When later called by Wireshark, the Lua function will be given:

1. A File object
2. A CaptureInfoConst object
3. A FrameInfoConst object of the current frame/packet to be written

The purpose of the Lua function set to this write field is to write the next packet to the file.

The called Lua function should return true on success, or false if it hit an error.

11.11.4.11. filehandler.write_finish

Mode: Assign only.

The Lua function to be called when Wireshark wants to close the written file.

When later called by Wireshark, the Lua function will be given:

1. A File object
2. A CaptureInfoConst object

It is not necessary to set this field to a Lua function - FileHandler can be registered without doing so - it is available in case there is memory/state to clear in your script when the file is closed.

11.11.4.12. filehandler.type

Mode: Retrieve only.

The internal file type. This is automatically set with a new number when the FileHandler is registered.

11.11.4.13. filehandler.extensions

Mode: Retrieve or assign.

One or more semicolon-separated file extensions that this file type usually uses.

For readers using heuristics to determine file type, Wireshark will try the readers of the file’s extension first, before trying other readers. But ultimately Wireshark tries all file readers for any file extension, until it finds one that accepts the file.

(Since 2.6) For writers, the first extension is used to suggest the default file extension.

11.11.4.14. filehandler.writing_must_seek

Mode: Retrieve or assign.

True if the ability to seek is required when writing this file format, else false.

This will be checked by Wireshark when writing out to compressed file formats, because seeking is not possible with compressed files. Usually a file writer only needs to be able to seek if it needs to go back in the file to change something, such as a block or file length value earlier in the file.

11.11.4.15. filehandler.writes_name_resolution

Mode: Retrieve or assign.

True if the file format supports name resolution records, else false.

11.11.4.16. filehandler.supported_comment_types

Mode: Retrieve or assign.

Set to the bit-wise OR’ed number representing the type of comments the file writer supports writing, based on the numbers in the wtap_comments table.

11.11.5. FrameInfo

A FrameInfo object, passed into Lua as an argument by FileHandler callback functions (e.g., read, seek_read, etc.).

This object represents frame data and meta-data (data about the frame/packet) for a given read/seek_read/write's frame.

This object’s fields are written-to/set when used by read function callbacks, and read-from/get when used by file write function callbacks. In other words, when the Lua plugin’s FileHandler read/seek_read/etc. functions are invoked, a FrameInfo object will be passed in as one of the arguments, and its fields should be written-to/set based on the frame information read from the file; whereas when the Lua plugin’s FileHandler.write() function is invoked, the FrameInfo object passed in should have its fields read-from/get, to write that frame information to the file.

Since: 1.11.3

11.11.5.1. frameinfo:__tostring()

Generates a string of debug info for the FrameInfo

Returns

String of debug information.

Tells Wireshark to read directly from given file into frame data buffer, for length bytes. Returns true if succeeded, else false.

Arguments
file
The File object userdata, provided by Wireshark previously in a reading-based callback.
length
The number of bytes to read from the file at the current cursor position.
Returns

True if succeeded, else returns false along with the error number and string error description.

A Lua string of the frame buffer’s data.

11.11.5.3. frameinfo.comment

Mode: Retrieve or assign.

Table of comments in this frame.

11.11.5.4. frameinfo.time

Mode: Retrieve or assign.

The packet timestamp as an NSTime object.

Note: Set the FileHandler.time_precision to the appropriate wtap_file_tsprec value as well.

11.11.5.5. frameinfo.data

Mode: Retrieve or assign.

The data buffer containing the packet.

Note This cannot be cleared once set.

11.11.5.6. frameinfo.rec_type

Mode: Retrieve or assign.

The record type of the packet frame

See wtap_rec_types in init.lua for values.

11.11.5.7. frameinfo.flags

Mode: Retrieve or assign.

The presence flags of the packet frame.

See wtap_presence_flags in init.lua for bit values.

11.11.5.8. frameinfo.captured_length

Mode: Retrieve or assign.

The captured packet length, and thus the length of the buffer passed to the FrameInfo.data field.

11.11.5.9. frameinfo.original_length

Mode: Retrieve or assign.

The on-the-wire packet length, which may be longer than the captured_length.

11.11.5.10. frameinfo.encap

Mode: Retrieve or assign.

The packet encapsulation type for the frame/packet, if the file supports per-packet types. See wtap_encaps in init.lua for possible packet encapsulation types to use as the value for this field.

11.11.6. FrameInfoConst

A constant FrameInfo object, passed into Lua as an argument by the FileHandler write callback function. This has similar attributes/properties as FrameInfo, but the fields can only be read from, not written to.

Since: 1.11.3

11.11.6.1. frameinfoconst:__tostring()

Generates a string of debug info for the FrameInfo

Returns

String of debug information.

11.11.6.2. frameinfoconst:write_data(file, [length])

Tells Wireshark to write directly to given file from the frame data buffer, for length bytes. Returns true if succeeded, else false.

Arguments
file
The File object userdata, provided by Wireshark previously in a writing-based callback.
length (optional)
The number of bytes to write to the file at the current cursor position, or all if not supplied.
Returns

True if succeeded, else returns false along with the error number and string error description.

11.11.6.3. frameinfoconst.comment

Mode: Retrieve only.

The first string comment for the packet, if any; nil if there is no comment.

11.11.6.4. frameinfoconst.time

Mode: Retrieve only.

The packet timestamp as an NSTime object.

11.11.6.5. frameinfoconst.data

Mode: Retrieve only.

The data buffer containing the packet.

11.11.6.6. frameinfoconst.rec_type

Mode: Retrieve only.

The record type of the packet frame - see wtap_presence_flags in init.lua for values.

11.11.6.7. frameinfoconst.flags

Mode: Retrieve only.

The presence flags of the packet frame - see wtap_presence_flags in init.lua for bits.

11.11.6.8. frameinfoconst.captured_length

Mode: Retrieve only.

The captured packet length, and thus the length of the buffer in the FrameInfoConst.data field.

11.11.6.9. frameinfoconst.original_length

Mode: Retrieve only.

The on-the-wire packet length, which may be longer than the captured_length.

11.11.6.10. frameinfoconst.encap

Mode: Retrieve only.

The packet encapsulation type, if the file supports per-packet types.

See wtap_encaps in init.lua for possible packet encapsulation types to use as the value for this field.

11.11.7. Global Functions

11.11.7.1. register_filehandler(filehandler)

Register the FileHandler into Wireshark/TShark, so they can read/write this new format. All functions and settings must be complete before calling this registration function. This function cannot be called inside the reading/writing callback functions.

Arguments
filehandler
The FileHandler object to be registered
Returns

the new type number for this file reader/write

11.11.7.2. deregister_filehandler(filehandler)

Deregister the FileHandler from Wireshark/TShark, so it no longer gets used for reading/writing/display. This function cannot be called inside the reading/writing callback functions.

Arguments
filehandler
The FileHandler object to be deregistered

11.12. Directory Handling Functions

11.12.1. Dir

A Directory object, as well as associated functions.

11.12.1.1. Dir.make(name)

Creates a directory.

The created directory is set for permission mode 0755 (octal), meaning it is read+write+execute by owner, but only read+execute by group members and others.

If the directory was created successfully, a boolean true is returned. If the directory cannot be made because it already exists, false is returned. If the directory cannot be made because an error occurred, nil is returned.

Since: 1.11.3

Arguments
name
The name of the directory, possibly including path.
Returns

Boolean true on success, false if the directory already exists, nil on error.

11.12.1.2. Dir.exists(name)

Returns true if the given directory name exists.

If the directory exists, a boolean true is returned. If the path is a file instead, false is returned. If the path does not exist or an error occurred, nil is returned.

Since: 1.11.3

Arguments
name
The name of the directory, possibly including path.
Returns

Boolean true if the directory exists, false if it’s a file, nil on error or not-exist.

11.12.1.3. Dir.remove(name)

Removes an empty directory.

If the directory was removed successfully, a boolean true is returned. If the directory cannot be removed because it does not exist, false is returned. If the directory cannot be removed because an error occurred, nil is returned.

This function only removes empty directories. To remove a directory regardless, use Dir.remove_all().

Since: 1.11.3

Arguments
name
The name of the directory, possibly including path.
Returns

Boolean true on success, false if does not exist, nil on error.

11.12.1.4. Dir.remove_all(name)

Removes an empty or non-empty directory.

If the directory was removed successfully, a boolean true is returned. If the directory cannot be removed because it does not exist, false is returned. If the directory cannot be removed because an error occurred, nil is returned.

Since: 1.11.3

Arguments
name
The name of the directory, possibly including path.
Returns

Boolean true on success, false if does not exist, nil on error.

11.12.1.5. Dir.open(pathname, [extension])

Opens a directory and returns a Dir object representing the files in the directory.

11.12.2. Example

    -- Print the contents of a directory
for filename in Dir.open('/path/to/dir') do
print(filename)
end
Arguments
pathname
The pathname of the directory.
extension (optional)
If given, only files with this extension will be returned.
Returns

The Dir object.

11.12.2.1. Dir.personal_config_path([filename])

Gets the personal configuration directory path, with filename if supplied.

Since: 1.11.3

Arguments
filename (optional)
A filename.
Returns

The full pathname for a file in the personal configuration directory.

11.12.2.2. Dir.global_config_path([filename])

Gets the global configuration directory path, with filename if supplied.

Since: 1.11.3

Arguments
filename (optional)
A filename
Returns

The full pathname for a file in Wireshark’s configuration directory.

11.12.2.3. Dir.personal_plugins_path()

Gets the personal plugins directory path.

Since: 1.11.3

Returns

The pathname of the personal plugins directory.

11.12.2.4. Dir.global_plugins_path()

Gets the global plugins directory path.

Since: 1.11.3

Returns

The pathname of the global plugins directory.

11.12.2.5. dir:__call()

Gets the next file or subdirectory within the directory, or nil when done.

11.12.3. Example

    -- Open a directory and print the name of the first file or subdirectory
local dir = Dir.open('/path/to/dir')
local first = dir()
print(tostring(file))

11.12.3.1. dir:close()

Closes the directory. Called automatically during garbage collection of a Dir object.

11.13. Handling 64-bit Integers

Lua uses one single number representation which can be chosen at compile time and since it is often set to IEEE 754 double precision floating point, one cannot store 64 bit integers with full precision.

Lua numbers are stored as floating point (doubles) internally, not integers; thus while they can represent incredibly large numbers, above 2^53 they lose integral precision — they can’t represent every whole integer value. For example if you set a lua variable to the number 9007199254740992 and tried to increment it by 1, you’d get the same number because it can’t represent 9007199254740993 (only the even number 9007199254740994).

Therefore, in order to count higher than 2^53 in integers, we need a true integer type. The way this is done is with an explicit 'Int64' or 'UInt64' object (i.e., Lua userdata). This object has metamethods for all of the math and comparison operators, so you can handle it like any number variable. For the math operators, it can even be mixed with plain Lua numbers.

For example 'my64num = my64num + 1' will work even if 'my64num' is a Int64 or UInt64 object. Note that comparison operators ('==','<=','>', etc.) will not work with plain numbers — only other Int64/UInt64 objects. This is a limitation of Lua itself, in terms of how it handles operator overloading.

Warning Many of the UInt64/Int64 functions accept a Lua number as an argument. You should be very careful to never use Lua numbers bigger than 32 bits (i.e., the number value 4,294,967,295 or the literal 0xFFFFFFFF) for such arguments, because Lua itself does not handle bigger numbers consistently across platforms (32-bit vs. 64-bit systems), and because a Lua number is a C-code double which cannot have more than 53 bits of precision. Instead, use a Int64 or UInt64 for the argument.

For example, do this…​

    local mynum = UInt64(0x2b89dd1e, 0x3f91df0b)

    -- Bad. Leads to inconsistent results across platforms
local mynum = UInt64(0x3f91df0b2b89dd1e)

And do this…​

    local masked = mynum:band(UInt64(0, 0xFFFFFFFF))

    -- Bad. Leads to inconsistent results across platforms
local masked = mynum:band(0xFFFFFFFF00000000)

11.13.1. Int64

Int64 represents a 64 bit signed integer.

Note the caveats listed above.

11.13.1.1. Int64.decode(string, [endian])

Decodes an 8-byte Lua string, using the given endianness, into a new Int64 object. Since: 1.11.3

Arguments
string
The Lua string containing a binary 64-bit integer.
endian (optional)
If set to true then little-endian is used, if false then big-endian; if missing or nil, native host endian.
Returns

The Int64 object created, or nil on failure.

11.13.1.2. Int64.new([value], [highvalue])

Creates a Int64 Object. Since: 1.11.3

Arguments
value (optional)
A number, UInt64, Int64, or string of ASCII digits to assign the value of the new Int64. Default is 0.
highvalue (optional)
If this is a number and the first argument was a number, then the first will be treated as a lower 32 bits, and this is the high-order 32 bit number.
Returns

The new Int64 object.

11.13.1.3. Int64.max()

Creates an Int64 of the maximum possible positive value. In other words, this should return an Int64 object of the number 9,223,372,036,854,775,807. Since: 1.11.3

Returns

The new Int64 object of the maximum value.

11.13.1.4. Int64.min()

Creates an Int64 of the minimum possible negative value. In other words, this should return an Int64 object of the number -9,223,372,036,854,775,808. Since: 1.11.3

Returns

The new Int64 object of the minimum value.

11.13.1.5. Int64.fromhex(hex)

Creates an Int64 object from the given hexadecimal string. Since: 1.11.3

Arguments
hex
The hex-ASCII Lua string.
Returns

The new Int64 object.

11.13.1.6. int64:encode([endian])

Encodes the Int64 number into an 8-byte Lua string using the given endianness. Since: 1.11.3

Arguments
endian (optional)
If set to true then little-endian is used, if false then big-endian; if missing or nil, native host endian.

The Lua string.

11.13.1.7. int64:__call()

Creates a Int64 object. Since: 1.11.3

Returns

The new Int64 object.

11.13.1.8. int64:tonumber()

Returns a Lua number of the Int64 value. Note that this may lose precision. Since: 1.11.3

The Lua number.

11.13.1.9. int64:tohex([numbytes])

Returns a hexadecimal string of the Int64 value. Since: 1.11.3

Arguments
numbytes (optional)
The number of hex chars/nibbles to generate. A negative value generates uppercase. Default is 16.

The string hex.

11.13.1.10. int64:higher()

Returns a Lua number of the higher 32 bits of the Int64 value. A negative Int64 will return a negative Lua number. Since: 1.11.3

The Lua number.

11.13.1.11. int64:lower()

Returns a Lua number of the lower 32 bits of the Int64 value. This will always be positive. Since: 1.11.3

The Lua number.

11.13.1.12. int64:__tostring()

Converts the Int64 into a string of decimal digits.

The Lua string.

11.13.1.13. int64:__unm()

Returns the negative of the Int64 as a new Int64. Since: 1.11.3

Returns

The new Int64.

Adds two Int64 together and returns a new one. The value may wrapped. Since: 1.11.3

11.13.1.15. int64:__sub()

Subtracts two Int64 and returns a new one. The value may wrapped. Since: 1.11.3

11.13.1.16. int64:__mul()

Multiplies two Int64 and returns a new one. The value may truncated. Since: 1.11.3

11.13.1.17. int64:__div()

Divides two Int64 and returns a new one. Integer divide, no remainder. Trying to divide by zero results in a Lua error. Since: 1.11.3

Returns

The Int64 object.

11.13.1.18. int64:__mod()

Divides two Int64 and returns a new one of the remainder. Trying to modulo by zero results in a Lua error. Since: 1.11.3

Returns

The Int64 object.

11.13.1.19. int64:__pow()

The first Int64 is taken to the power of the second Int64, returning a new one. This may truncate the value. Since: 1.11.3

Returns

The Int64 object.

11.13.1.20. int64:__eq()

Returns true if both Int64 are equal. Since: 1.11.3

11.13.1.21. int64:__lt()

Returns true if first Int64 is less than the second. Since: 1.11.3

11.13.1.22. int64:__le()

Returns true if the first Int64 is less than or equal to the second. Since: 1.11.3

11.13.1.23. int64:bnot()

Returns a Int64 of the bitwise 'not' operation. Since: 1.11.3

Returns

The Int64 object.

11.13.1.24. int64:band()

Returns a Int64 of the bitwise 'and' operation with the given number/Int64/UInt64. Note that multiple arguments are allowed. Since: 1.11.3

11.13.1.25. int64:bor()

Returns a Int64 of the bitwise 'or' operation, with the given number/Int64/UInt64. Note that multiple arguments are allowed. Since: 1.11.3

11.13.1.26. int64:bxor()

Returns a Int64 of the bitwise 'xor' operation, with the given number/Int64/UInt64. Note that multiple arguments are allowed. Since: 1.11.3

11.13.1.27. int64:lshift(numbits)

Returns a Int64 of the bitwise logical left-shift operation, by the given number of bits. Since: 1.11.3

Arguments
numbits
The number of bits to left-shift by.
Returns

The Int64 object.

11.13.1.28. int64:rshift(numbits)

Returns a Int64 of the bitwise logical right-shift operation, by the given number of bits. Since: 1.11.3

Arguments
numbits
The number of bits to right-shift by.
Returns

The Int64 object.

11.13.1.29. int64:arshift(numbits)

Returns a Int64 of the bitwise arithmetic right-shift operation, by the given number of bits. Since: 1.11.3

Arguments
numbits
The number of bits to right-shift by.
Returns

The Int64 object.

11.13.1.30. int64:rol(numbits)

Returns a Int64 of the bitwise left rotation operation, by the given number of bits (up to 63). Since: 1.11.3

Arguments
numbits
The number of bits to roll left by.
Returns

The Int64 object.

11.13.1.31. int64:ror(numbits)

Returns a Int64 of the bitwise right rotation operation, by the given number of bits (up to 63). Since: 1.11.3

Arguments
numbits
The number of bits to roll right by.
Returns

The Int64 object.

11.13.1.32. int64:bswap()

Returns a Int64 of the bytes swapped. This can be used to convert little-endian 64-bit numbers to big-endian 64 bit numbers or vice versa. Since: 1.11.3

Returns

The Int64 object.

11.13.2. UInt64

UInt64 represents a 64 bit unsigned integer, similar to Int64.

Note the caveats listed above.

11.13.2.1. UInt64.decode(string, [endian])

Decodes an 8-byte Lua binary string, using given endianness, into a new UInt64 object. Since: 1.11.3

Arguments
string
The Lua string containing a binary 64-bit integer.
endian (optional)
If set to true then little-endian is used, if false then big-endian; if missing or nil, native host endian.
Returns

The UInt64 object created, or nil on failure.

11.13.2.2. UInt64.new([value], [highvalue])

Creates a UInt64 Object. Since: 1.11.3

Arguments
value (optional)
A number, UInt64, Int64, or string of digits to assign the value of the new UInt64. Default is 0.
highvalue (optional)
If this is a number and the first argument was a number, then the first will be treated as a lower 32 bits, and this is the high-order 32-bit number.
Returns

The new UInt64 object.

11.13.2.3. UInt64.max()

Creates a UInt64 of the maximum possible value. In other words, this should return an UInt64 object of the number 18,446,744,073,709,551,615. Since: 1.11.3

Returns

The maximum value.

11.13.2.4. UInt64.min()

Creates a UInt64 of the minimum possible value. In other words, this should return an UInt64 object of the number 0. Since: 1.11.3

Returns

The minimum value.

11.13.2.5. UInt64.fromhex(hex)

Creates a UInt64 object from the given hex string. Since: 1.11.3

Arguments
hex
The hex-ASCII Lua string.
Returns

The new UInt64 object.

11.13.2.6. uint64:encode([endian])

Encodes the UInt64 number into an 8-byte Lua binary string, using given endianness. Since: 1.11.3

Arguments
endian (optional)
If set to true then little-endian is used, if false then big-endian; if missing or nil, native host endian.
Returns

The Lua binary string.

11.13.2.7. uint64:__call()

Creates a UInt64 object. Since: 1.11.3

Returns

The new UInt64 object.

11.13.2.8. uint64:tonumber()

Returns a Lua number of the UInt64 value. This may lose precision. Since: 1.11.3

The Lua number.

11.13.2.9. uint64:__tostring()

Converts the UInt64 into a string.

The Lua string.

11.13.2.10. uint64:tohex([numbytes])

Returns a hex string of the UInt64 value. Since: 1.11.3

Arguments
numbytes (optional)
The number of hex-chars/nibbles to generate. Negative means uppercase Default is 16.

The string hex.

11.13.2.11. uint64:higher()

Returns a Lua number of the higher 32 bits of the UInt64 value.

The Lua number.

11.13.2.12. uint64:lower()

Returns a Lua number of the lower 32 bits of the UInt64 value.

The Lua number.

11.13.2.13. uint64:__unm()

Returns the UInt64 in a new UInt64, since unsigned integers can’t be negated. Since: 1.11.3

Returns

The UInt64 object.

Adds two UInt64 together and returns a new one. This may wrap the value. Since: 1.11.3

11.13.2.15. uint64:__sub()

Subtracts two UInt64 and returns a new one. This may wrap the value. Since: 1.11.3

11.13.2.16. uint64:__mul()

Multiplies two UInt64 and returns a new one. This may truncate the value. Since: 1.11.3

11.13.2.17. uint64:__div()

Divides two UInt64 and returns a new one. Integer divide, no remainder. Trying to divide by zero results in a Lua error. Since: 1.11.3

Returns

The UInt64 result.

11.13.2.18. uint64:__mod()

Divides two UInt64 and returns a new one of the remainder. Trying to modulo by zero results in a Lua error. Since: 1.11.3

Returns

The UInt64 result.

11.13.2.19. uint64:__pow()

The first UInt64 is taken to the power of the second UInt64/number, returning a new one. This may truncate the value. Since: 1.11.3

Returns

The UInt64 object.

11.13.2.20. uint64:__eq()

Returns true if both UInt64 are equal. Since: 1.11.3

11.13.2.21. uint64:__lt()

Returns true if first UInt64 is less than the second. Since: 1.11.3

11.13.2.22. uint64:__le()

Returns true if first UInt64 is less than or equal to the second. Since: 1.11.3

11.13.2.23. uint64:bnot()

Returns a UInt64 of the bitwise 'not' operation. Since: 1.11.3

Returns

The UInt64 object.

11.13.2.24. uint64:band()

Returns a UInt64 of the bitwise 'and' operation, with the given number/Int64/UInt64. Note that multiple arguments are allowed. Since: 1.11.3

11.13.2.25. uint64:bor()

Returns a UInt64 of the bitwise 'or' operation, with the given number/Int64/UInt64. Note that multiple arguments are allowed. Since: 1.11.3

11.13.2.26. uint64:bxor()

Returns a UInt64 of the bitwise 'xor' operation, with the given number/Int64/UInt64. Note that multiple arguments are allowed. Since: 1.11.3

11.13.2.27. uint64:lshift(numbits)

Returns a UInt64 of the bitwise logical left-shift operation, by the given number of bits. Since: 1.11.3

Arguments
numbits
The number of bits to left-shift by.
Returns

The UInt64 object.

11.13.2.28. uint64:rshift(numbits)

Returns a UInt64 of the bitwise logical right-shift operation, by the given number of bits. Since: 1.11.3

Arguments
numbits
The number of bits to right-shift by.
Returns

The UInt64 object.

11.13.2.29. uint64:arshift(numbits)

Returns a UInt64 of the bitwise arithmetic right-shift operation, by the given number of bits. Since: 1.11.3

Arguments
numbits
The number of bits to right-shift by.
Returns

The UInt64 object.

11.13.2.30. uint64:rol(numbits)

Returns a UInt64 of the bitwise left rotation operation, by the given number of bits (up to 63). Since: 1.11.3

Arguments
numbits
The number of bits to roll left by.
Returns

The UInt64 object.

11.13.2.31. uint64:ror(numbits)

Returns a UInt64 of the bitwise right rotation operation, by the given number of bits (up to 63). Since: 1.11.3

Arguments
numbits
The number of bits to roll right by.
Returns

The UInt64 object.

11.13.2.32. uint64:bswap()

Returns a UInt64 of the bytes swapped. This can be used to convert little-endian 64-bit numbers to big-endian 64 bit numbers or vice versa. Since: 1.11.3

Returns

The UInt64 object.

11.14. Binary encode/decode support

The Struct class offers basic facilities to convert Lua values to and from C-style structs in binary Lua strings. This is based on Roberto Ierusalimschy’s Lua struct library found in http://www.inf.puc-rio.br/~roberto/struct/, with some minor modifications as follows:

• Added support for Int64/UInt64 being packed/unpacked, using 'e'/'E'.
• Can handle 'long long' integers (i8 / I8); though they’re converted to doubles.
• Can insert/specify padding anywhere in a struct. ('X' eg. when a string is following a union).
• Can report current offset in both pack and unpack (=).
• Can mask out return values when you only want to calculate sizes or unmarshal pascal-style strings using ( & ).

All but the first of those changes are based on an email from Flemming Madsen, on the lua-users mailing list, which can be found here.

The main functions are Struct.pack, which packs multiple Lua values into a struct-like Lua binary string; and Struct.unpack, which unpacks multiple Lua values from a given struct-like Lua binary string. There are some additional helper functions available as well.

All functions in the Struct library are called as static member functions, not object methods, so they are invoked as "Struct.pack(…​)" instead of "object:pack(…​)".

The fist argument to several of the Struct functions is a format string, which describes the layout of the structure. The format string is a sequence of conversion elements, which respect the current endianness and the current alignment requirements. Initially, the current endianness is the machine’s native endianness and the current alignment requirement is 1 (meaning no alignment at all). You can change these settings with appropriate directives in the format string.

The supported elements in the format string are as follows:

•  ' (empty space) ignored.
• !n' flag to set the current alignment requirement to 'n' (necessarily a power of 2); an absent 'n' means the machine’s native alignment.
• >' flag to set mode to big endian (i.e., network-order).
• <' flag to set mode to little endian.
• x' a padding zero byte with no corresponding Lua value.
• b' a signed char.
• B' an unsigned char.
• h' a signed short (native size).
• H' an unsigned short (native size).
• l' a signed long (native size).
• L' an unsigned long (native size).
• T' a size_t (native size).
• in' a signed integer with 'n' bytes. An absent 'n' means the native size of an int.
• In' like in' but unsigned.
• e' signed 8-byte Integer (64-bits, long long), to/from a Int64 object.
• E' unsigned 8-byte Integer (64-bits, long long), to/from a UInt64 object.
• f' a float (native size).
• d' a double (native size).
• s' a zero-terminated string.
• cn' a sequence of exactly 'n' chars corresponding to a single Lua string. An absent 'n' means 1. When packing, the given string must have at least 'n' characters (extra characters are discarded).
• c0' this is like cn', except that the 'n' is given by other means: When packing, 'n' is the length of the given string; when unpacking, 'n' is the value of the previous unpacked value (which must be a number). In that case, this previous value is not returned.
• xn' pad to 'n' number of bytes, default 1.
• Xn' pad to 'n' alignment, default MAXALIGN.
• (' to stop assigning items, and )' start assigning (padding when packing).
• =' to return the current position / offset.
Note Using i, I, h, H, l, L, f, and T is strongly discouraged, as those sizes are system-dependent. Use the explicitly sized variants instead, such as i4 or E. Unpacking of i/I is done to a Lua number, a double-precision floating point, so unpacking a 64-bit field (i8/I8) will lose precision. Use e/E to unpack into a Wireshark Int64/UInt64 object instead.

Since: 1.11.3

11.14.1. Struct

11.14.1.1. Struct.pack(format, value)

Returns a string containing the values arg1, arg2, etc. packed/encoded according to the format string.

Arguments
format
The format string
value
One or more Lua value(s) to encode, based on the given format.
Returns

The packed binary Lua string, plus any positions due to '=' being used in format.

11.14.1.2. Struct.unpack(format, struct, [begin])

Unpacks/decodes multiple Lua values from a given struct-like binary Lua string. The number of returned values depends on the format given, plus an additional value of the position where it stopped reading is returned.

Arguments
format
The format string
struct
The binary Lua string to unpack
begin (optional)
The position to begin reading from (default=1)
Returns

One or more values based on format, plus the position it stopped unpacking.

11.14.1.3. Struct.size(format)

Returns the length of a binary string that would be consumed/handled by the given format string.

Arguments
format
The format string

The size number

11.14.1.4. Struct.values(format)

Returns the number of Lua values contained in the given format string. This will be the number of returned values from a call to Struct.unpack() not including the extra return value of offset position. (i.e., Struct.values() does not count that extra return value) This will also be the number of arguments Struct.pack() expects, not including the format string argument.

Arguments
format
The format string
Returns

The number of values

11.14.1.5. Struct.tohex(bytestring, [lowercase], [separator])

Converts the passed-in binary string to a hex-ascii string.

Arguments
bytestring
A Lua string consisting of binary bytes
lowercase (optional)
True to use lower-case hex characters (default=false).
separator (optional)
A string separator to insert between hex bytes (default=nil).
Returns

The Lua hex-ascii string

11.14.1.6. Struct.fromhex(hexbytes, [separator])

Converts the passed-in hex-ascii string to a binary string.

Arguments
hexbytes
A string consisting of hexadecimal bytes like "00 B1 A2" or "1a2b3c4d"
separator (optional)
A string separator between hex bytes/words (default none).
Returns

The Lua binary string

11.15. PCRE2 Regular Expressions

Lua has its own native pattern syntax in the string library, but sometimes a real regex engine is more useful. Wireshark comes with Perl Compatible Regular Expressions version 2 (PCRE2). This engine is exposed into Wireshark’s Lua engine through the well-known Lrexlib library. The module is loaded in the global environment using the "rex_pcre2" table. The manual is available at https://rrthomas.github.io/lrexlib/manual.html.

12.1. Introduction

Wireshark can be logically separated into the backend (dissecting protocols, file loading and saving, capturing, etc.) and the frontend (the user interface).

The following frontends are currently maintained by the Wireshark development team:

• Wireshark, Qt based
• TShark, console based

This chapter is focused on the Wireshark frontend, and especially on the Qt interface.

12.2. The Qt Application Framework

Qt is a cross-platform application development framework. While we mainly use the core (QtCore) and user interface (QtWidgets) modules, it also supports a number of other modules for specialized application development, such as networking (QtNetwork) and web browsing (QtWebKit).

At the time of this writing (September 2016) most of the main Wireshark application has been ported to Qt. The sections below provide an overview of the application and tips for Qt development in our environment.

12.2.1. User Experience Considerations

When creating or modifying Wireshark try to make sure that it will work well on Windows, macOS, and Linux. See Section 12.3, “Human Interface Reference Documents” for details. Additionally, try to keep the following in mind:

Workflow. Excessive navigation and gratuitous dialogs should be avoided or reduced. For example, compared to the legacy UI many alert dialogs have been replaced with status bar messages. Statistics dialogs are displayed immediately instead of requiring that options be specified.

Discoverability and feedback. Most users don’t like to read documentation and instead prefer to learn an application as they use it. Providing feedback increases your sense of control and awareness, and makes the application more enjoyable to use. Most of the Qt dialogs provide a “hint” area near the bottom which shows useful information. For example, the “Follow Stream” dialog shows the packet corresponding to the text under the mouse. The profile management dialog shows a clickable path to the current profile. The main welcome screen shows live interface traffic. Most dialogs have a context menu that shows keyboard shortcuts.

12.2.2. Qt Creator

Qt Creator is a full-featured IDE and user interface editor. It makes adding new UI features much easier. It doesn’t work well on Windows at the present time, so it’s recommended that you use it on macOS or Linux.

To edit and build Wireshark using Qt Creator, open the top-level CMakeLists.txt within Qt Creator. It should ask you to choose a build location. Do so. It should then ask you to run CMake. Fill in any desired build arguments (e.g. -D CMAKE_BUILD_TYPE=Debug or -D ENABLE_CCACHE=ON) and click the button. When that completes select BuildOpen Build and Run Kit Selector…​ and make sure wireshark is selected.

Note that Qt Creator uses output created by CMake’s “CodeBlocks” generator. If you run CMake outside of Qt Creator you should use the “CodeBlocks - Unix Makefiles” generator, otherwise Qt Creator will prompt you to re-run CMake.

12.2.3. Source Code Overview

Wireshark’s main entry point is in ui/qt/main.cpp. Command-line arguments are processed there and the main application class (WiresharkApplication) instance is created there along with the main window.

The main window along with the rest of the application resides in ui/qt. Due to its size the main window code is split into several modules, main_window.cpp, wireshark_main_window.cpp and wireshark_main_window_slots.cpp.

Most of the modules in ui/qt are dialogs. Although we follow Qt naming conventions for class names, we follow our own conventions by separating file name components with underscores. For example, ColoringRulesDialog is defined in coloring_rules_dialog.cpp, coloring_rules_dialog.h, and coloring_rules_dialog.ui.

General-purpose dialogs are subclasses of QDialog. Dialogs that rely on the current capture file can subclass WiresharkDialog, which provides methods and members that make it easier to access the capture file and to keep the dialog open when the capture file closes.

12.2.4. Coding Practices and Naming Conventions

12.2.4.1. Names

The code in ui/qt directory uses three APIs: Qt (which uses upper camel case), GLib (which uses snake_case), and the Wireshark API (which also uses snake_case).

As a general rule, for names, Wireshark’s Qt code:

• uses upper camel case, in which words in the name are not separated by underscores, and the first letter of each word is capitalized, for classes, for example, PacketList;
• uses lower camel case, in which words in the name are not separated by underscores, and the first letter of each word other than the first word is capitalized, for methods, for example, resetColumns;
• uses snake case, in which words in the name are separated by underscores, and the first letter of the word is not capitalized, for variables, with a trailing underscore used for member variables, for example, packet_list_model_.

12.2.4.2. Dialogs

Dialogs that work with capture file information shouldn’t close just because the capture file closes. Subclassing WiresharkDialog as described above can make it easier to persist across capture files.

When you create a window with a row of standard “OK” and “Close” buttons at the bottom using Qt Creator you will end up with a subclass of QDialog. This is fine for traditional modal dialogs, but many times the “dialog” needs to behave like a QWindow instead.

Modal dialogs should be constructed with QDialog(parent). Modeless dialogs (windows) should be constructed with QDialog(NULL, Qt::Window). Other combinations (particularly QDialog(parent, Qt::Window)) can lead to odd and inconsistent behavior. Again, subclassing WiresharkDialog will take care of this for you.

Most of the dialogs in ui/qt share many similarities, including method names, widget names, and behavior. Most dialogs should have the following, although it’s not strictly required:

• An updateWidgets() method, which enables and disables widgets depending on the current state and constraints of the dialog. For example, the Coloring Rules dialog disables the Save button if the user has entered an invalid display filter.
• A hintLabel() widget subclassed from QLabel or ElidedLabel, placed just above the dialog button box. The hint label provides guidance and feedback to the user.
• A context menu (ctx_menu_) for additional actions not present in the button box.
• If the dialog box contains a QTreeWidget you might want to add your own QTreeWidgetItem subclass with the following methods:

drawData()
Draws column data with any needed formatting.
colData()
Returns the data for each column as a QVariant. Used for copying as CSV, YAML, etc.
operator<()
Allows sorting columns based on their raw data.

12.2.4.3. Strings

Wireshark’s C code and GLib use UTF-8 encoded character arrays. Qt (specifically QString) uses UTF-16. You can convert a char * to a QString using simple assignment. You can convert a QString to a const char * using qUtf8Printable.

If you’re using GLib string functions or plain old C character array idioms in Qt-only code you’re probably doing something wrong, particularly if you’re manually allocating and releasing memory. QStrings are generally much safer and easier to use. They also make translations easier.

If you need to pass strings between Qt and GLib you can use a number of convenience routines which are defined in ui/qt/utils/qt_ui_utils.h.

If you’re calling a function that returns wmem-allocated memory it might make more sense to add a wrapper function to qt_ui_utils than to call wmem_free in your code.

12.2.4.4. Mixing C and C++

Sometimes we have to call C++ functions from one of Wireshark’s C callbacks and pass C++ objects to or from C. Tap listeners are a common example. The C++ FAQ describes how to do this safely.

Tapping usually involves declaring static methods for callbacks, passing this as the tap data.

12.2.4.5. Internationalization and Translation

Qt provides a convenient method for translating text: Qobject::tr(), usually available as tr().

However, please avoid using tr() for static strings and define them in *.ui files instead. tr() on manually created objects like QMenu are not automatically retranslated and must instead be manually translated using changeEvent() and retranslateUi(). See ui/qt/wireshark_main_window.cpp for an example of this.

Note If your object life is short and your components are (re)created dynamically then it is ok to use tr().

In most cases you should handle the changeEvent in order to catch QEvent::LanguageChange.

Qt makes translating the Wireshark UI into different languages easy. To add a new translation, do the following:

• (Recommended) Add a flag image for your language in resources/languages/XX.svg. Update resources/languages/languages.qrc accordingly.
• Run lupdate ui/qt -ts ui/qt/wireshark_XX.ts to generate/update your translation file.
• Add ui/qt/wireshark_XX.ts to .tx/config.
• Translate with Qt Linguist: linguist ui/qt/wireshark_XX.ts.
• Do a test build and make sure the generated wireshark_XX.qm binary file is included.
• Push your translation to GitLab for review. See Section 3.10, “Contribute Your Changes” for details.

Alternatively you can put your QM and flag files in the languages directory in the Wireshark user configuration directory ($XDG_CONFIG_HOME/wireshark/languages/ or$HOME/.wireshark/languages/ on UNIX).

You can also manage translations online with Transifex. Translation resources are organized by type of translation and development branch:

master
Qt Linguist resources in the ui/qt in the master branch.
debian
GNU gettext resources in the debian directory in the master branch.
qt-XY, master-XY
Qt Linguist resources in the ui/qt in the X.Y release branch. For example, qt-34 matches the Wireshark 3.2 release branch.
po-XY, debian-XY
GNU gettext (.po) resources in the debian directory in the X.Y release branch. For example, po-34 matches the Wireshark 3.4 release branch.

Each week translations are automatically synchronized with the source code through the following steps:

• Pull changes from Transifex by running tx pull -f.
• Run lupdate on the ts files.
• Push and commit on Gerrit.
• Push changes to Transifex by running tx push.

12.2.4.6. Colors And Themes

Qt provides a number of colors via the QPalette class. Use this class when you need a standard color provided by the underlying operating system.

Wireshark uses an extended version of the Tango Color Palette for many interface elements that require custom colors. This includes the I/O graphs, sequence diagrams, and RTP streams. Please use this palette (defined in tango_colors.h and the ColorUtils class) if QPalette doesn’t meet your needs.

Wireshark supports dark themes (aka “dark mode”) on some platforms. We leverage Qt’s dark theme support when possible, but have implemented our own support and workarounds in some cases. You can ensure that your code includes proper dark theme support by doing the following:

• You can use a macOS-style template icon by creating a monochrome SVG document with “.template” appended to the name, e.g. resources/stock_icons/24x24/edit-find.template.svg.
• Qt draws unvisited links Qt::blue no matter what. You can work around this by using ColorUtils::themeLinkBrush() and ColorUtils::themeLinkStyle().
• You can catch dark and light mode changes by handling QEvent::ApplicationPaletteChange.

12.2.5. Other Issues and Information

The main window has many QActions which are shared with child widgets. See ui/qt/proto_tree.cpp for an example of this.

To demonstrate the functionality of the plugin interface options, a demonstration plugin exists (pluginifdemo). See doc/README.plugins and plugins/epan/pluginifdemo.

GammaRay lets you inspect the internals of a running Qt application similar to Spy++ on Windows.

12.3. Human Interface Reference Documents

Wireshark runs on a number of platforms, primarily Windows, macOS, and Linux. It should conform to the Windows, macOS, GNOME, and KDE human interface guidelines as much as possible. Unfortunately, creating a feature that works well across these platforms can sometimes be a juggling act since the human interface guidelines for each platform often contradict one another. If you run into trouble you can ask the wireshark-dev mailing list as well as the User Experience Stack Exchange listed below.

For further reference, see the following:

Chapter 13. Wireshark Tests

The Wireshark sources include a collection of Python scripts that test the features of Wireshark, TShark, Dumpcap, and other programs that accompany Wireshark. These are located in the test directory of the Wireshark source tree.

The command line options of Wireshark and its companion command line tools are numerous. These tests help to ensure that we don’t introduce bugs as Wireshark grows and evolves.

13.1. Quick Start

The recommended steps to prepare for and to run tests:

• Install two Python packages, pytest: pip install pytest pytest-xdist
• Build programs (“wireshark”, “tshark”, etc.): ninja
• Build additional programs for the “unittests” suite: ninja test-programs
• Run tests in the build directory: pytest

Replace ninja test-programs by make test-programs as needed.

The test suite will attempt to test as much as possible and skip tests when its dependencies are not satisfied. For example, packet capture tests require a Loopback interface and capture privileges. To avoid capture tests, pass the --disable-capture option.

List available tests with pytest --collectonly. Enable verbose output with pytest --verbose. For more details, see Section 13.4, “Listing And Running Tests (pytest)”.

If for whatever reason pytest is too old or unavailable, you could use a more limited test runner, test/test.py. Use test/test.py --help to see all options. For more details, see Section 13.3, “Listing And Running Tests”.

CMake currently runs test/test.py when the “test” target is built.

13.2. Test suite structure

The following sections describes how the test suite is organized.

13.2.1. Test Coverage And Availability

The testing framework can run programs and check their stdout, stderr, and exit codes. It cannot interact with the Wireshark UI. Tests cover capture, command line options, decryption, file format support and conversion, Lua scripting, and other functionality.

Available tests depend on the libraries with which Wireshark was built. For example, some decryption tests depend on a minimum version of Libgcrypt and Lua tests depend on Lua.

Capture tests depend on the permissions of the user running the test script. We assume that the test user has capture permissions on Windows and macOS and capture tests are enabled by default on those platforms.

If a feature is unavailable, the test will be skipped. For example, if an old version of Libgcrypt is in use, then some decryption tests will be skipped while other tests can still run to completion.

13.2.2. Suites, Cases, and Tests

The test/test.py script uses Python’s “unittest” module. Our tests are patterned after it, and individual tests are organized according to suites, cases, and individual tests. Suites correspond to Python modules that match the pattern “suite_*.py”. Cases correspond to one or more classes in each module, and case class methods matching the pattern ”test_*” correspond to individual tests. For example, the invalid capture filter test in the TShark capture command line options test case in the command line options suite has the ID “suite_clopts.case_tshark_capture_clopts.test_tshark_invalid_capfilter”.

13.2.3. pytest fixtures

A test has typically additional dependencies, like the path to an executable, the path to a capture file, a configuration directory, the availability of an optional library, and so on. The Python unittest library is quite limited in expressing test dependencies, these are typically specified on the class instance itself (self) or via globals.

pytest is a better test framework which has full parallelization support (test-level instead of just suite-level), provides nicer test reports, and allows modular fixtures. Ideally the test suite should fully switch to pytest, but in meantime a compatibility layer is provided via the “fixtures” module.

A fixture is a function decorated with @fixtures.fixture and can either call fixtures.skip("reason") to skip tests that depend on the fixture, or return/yield a value. Test functions (and other fixture functions) can receive the fixture value by using the name of the fixture function as function parameters. Common fixtures are available in fixtures_ws.py and includes cmd_tshark for the path to the tshark executable and capture_file for a factory function that produces the path to a capture file.

Each unittest test case must be decorated with @fixtures.uses_fixtures to ensure that unittest test classes can actually request fixture dependencies.

13.3. Listing And Running Tests

Tests can be run via the test/test.py Python script. To run all tests, either run test/test.py in the directory that contains the Wireshark executables (wireshark, tshark, etc.), or pass the executable path via the -p flag:

$python3 test/test.py -p /path/to/wireshark-build/run You can list tests by passing one or more complete or partial names to test/test.py. The -l flag lists tests. By default all tests are shown. # List all tests$ python3 test/test.py -l
$python3 test/test.py -l all$ python3 test/test.py --list
$python3 test/test.py --list all # List only tests containing "dumpcap"$ python3 test/test.py -l dumpcap

# List all suites
$python3 test/test.py --list-suites # List all suites and cases$ python3 test/test.py --list-cases

If one of the listing flags is not present, tests are run. If no names or all is supplied, all tests are run. Otherwise tests that match are run.

# Run all tests
$python3 test/test.py$ python3 test/test.py all

# Only run tests containing "dumpcap"
$python3 test/test.py dumpcap # Run the "clopts" suite$ python3 test/test.py suite_clopts

Run python3 test/test.py --help for all available options.

13.4. Listing And Running Tests (pytest)

Tests can also be run with pytest. Advantages include finer test selection, full parallelism, nicer test execution summaries, better output in case of failures (containing the contents of variables) and the ability to open the PDB debugger on failing tests.

To get started, install pytest 3.0 or newer and pytest-xdist:

# Install required packages on Ubuntu 18.04 or Debian jessie-backports
$sudo apt install python3-pytest python3-pytest-xdist # Install required packages on other systems$ pip install pytest pytest-xdist

Run pytest in the Wireshark build directory, Wireshark binaries are assumed to be present in the run subdirectory (or run\RelWithDebInfo on Windows).

# Run all tests
$cd /path/to/wireshark/build$ pytest

# Run all except capture tests
$pytest --disable-capture # Run all tests with "decryption" in its name$ pytest -k decryption

# Run all tests with an explicit path to the Wireshark executables
$pytest --program-path /path/to/wireshark/build/run To list tests without actually executing them, use the --collect-only option: # List all tests$ pytest --collect-only

# List only tests containing both "dfilter" and "tvb"
$pytest --collect-only -k "dfilter and tvb" The test suite will fail tests when programs are missing. When only a subset of programs are built or when some programs are disabled, then the test suite can be instructed to skip instead of fail tests: # Run tests when libpcap support is disabled (-DENABLE_PCAP=OFF)$ pytest --skip-missing-programs dumpcap,rawshark

# Run tests and ignore all tests with missing program dependencies
$pytest --skip-missing-programs all To open a Python debugger (PDB) on failing tests, use the --pdb option and disable parallelism with the -n0 option: # Run decryption tests sequentially and open a debugger on failing tests$ pytest -n0 --pdb -k decryption

Note that with the option --pdb, stray processes are not killed on test failures since the SubprocessTestCase.tearDown method is not executed. This limitation might be addressed in the future.

13.5. Adding Or Modifying Built-In Tests

Tests must be in a Python module whose name matches “suite_*.py”. The module must contain one or more subclasses of “SubprocessTestCase” or “unittest.TestCase”. “SubprocessTestCase” is recommended since it contains several convenience methods for running processes, normalizing and checking output, and displaying error information. Each test case method whose name starts with “test_” constitutes an individual test.

Success or failure conditions can be signalled using the “unittest.assertXXX()” or “subprocesstest.assertXXX()” methods.

Test dependencies (such as programs, directories, or the environment variables) are injected through method parameters. Commonly used fixtures include cmd_tshark and capture_file. See also Section 13.2.3, “pytest fixtures”.

The “subprocesstest” class contains the following methods for running processes. Stdout and stderr is written to “<test id>.log”:

startProcess
Start a process without waiting for it to finish.
runProcess
Start a process and wait for it to finish.
assertRun
Start a process, wait for it to finish, and check its exit code.

All of the current tests run one or more of Wireshark’s suite of executables and either check their return code or their output. A simple example is “suite_clopts.case_basic_clopts.test_existing_file”, which reads a capture file using TShark and checks its exit code.

import subprocesstest
import fixtures

@fixtures.mark_usefixtures('test_env')
@fixtures.uses_fixtures
class case_basic_clopts(subprocesstest.SubprocessTestCase):
def test_existing_file(self, cmd_tshark, capture_file):
self.assertRun((cmd_tshark, '-r', capture_file('dhcp.pcap')))

Program output is decoded as UTF-8 and CRLF sequences (\r\n) are converted to LFs (\n). Output can be checked using SubprocessTestCase.grepOutput, SubprocessTestCase.countOutput or other unittest.assert* methods:

import subprocesstest
import fixtures

@fixtures.mark_usefixtures('test_env')
@fixtures.uses_fixtures
class case_decrypt_80211(subprocesstest.SubprocessTestCase):
def test_80211_wpa_psk(self, cmd_tshark, capture_file):
tshark_proc = self.assertRun((cmd_tshark,
'-o', 'wlan.enable_decryption: TRUE',
'-Tfields',
'-e', 'http.request.uri',
'-r', capture_file('wpa-Induction.pcap.gz'),
'-Y', 'http',
))
self.assertIn('favicon.ico', tshark_proc.stdout_str)

Tests can be run in parallel. This means that any files you create must be unique for each test. “subprocesstest.filename_from_id” can be used to generate a filename based on the current test name. It also ensures that the file will be automatically removed after the test has run.

13.6. Adding Or Modifying External Tests

You can test the dissection of files outside the Wireshark source code repository by using the external test generator, which creates tests using a JSON configuration file. The file must have the following format:

{
"case_name": "<test case name>",
"tests": [
{
"test_name": "<test name>",
"tshark_args": [ <tshark argument array> ],
"requirements": [ <one or more requirements> ]
}
]
}

tshark_args elements can use ${case_dir} to specify the path to the JSON configuration file. requirements can be one or more of [ "count", "<pattern>", <count> ] Require count occurrences of pattern in the dissection output. Equivalent to the built-in Python assertEqual(countOutput('<pattern'), <count>) [ "grep", "<pattern>" ] Dissection output must contain pattern. Equivalent to assertTrue(grepOutput('<pattern>')). [ "!grep", "<pattern>" ] Dissection output must not contain pattern. Equivalent to assertFalse(grepOutput('<pattern>')). [ "in", "<string>", <line> ] Zero-indexed line line of the dissection output must contain string. Equivalent to assertIn('<pattern>', lines[<line>]). [ "!in", "<string>", <line> ] Zero-indexed line line of the dissection output must not contain string. Equivalent to assertNotIn('<pattern>', lines[<line>]). Patterns can be any valid Python regular expression. The example below defines a single test case, named “external_example”. The case has a single test named “dns”, which runs TShark on tests/dns-1/dns.pcapng, relative to the JSON configuration file. { "case_name": "external_example", "tests": [ { "test_name": "dns", "tshark_args": [ "-r", "${case_dir}/tests/dns-1/dns.pcapng",
"-Y", "dns", "-T", "fields", "-e", "dns.qry.name"
],
"requirements": [
[ "count", "in.m.yahoo.com", 1 ],
[ "grep", "in.m.yahoo.com" ],
[ "!grep", "in.m.notyahoo.com" ],
[ "in", "in.m.yahoo.com", 0 ],
[ "!in", "in.m.notyahoo.com", 0 ]
]
}
]
}

You can specify external tests using the test.py --add-external-test. For example, if the JSON file above is named wireshark-tests.json you can list its test by running the following:

./test/test.py -p ./build/run --add-external-test /path/to/wireshark-tests.json --list external suite_external.case_external_example.test_dns Chapter 14. Creating ASN.1 Dissectors The asn2wrs compiler can be used to create a dissector from an ASN.1 specification of a protocol. It is a work in progress but has been used to create a number of dissectors. It supports: • ITU-T Recommendation X.680 (07/2002), Information technology - Abstract Syntax Notation One (ASN.1): Specification of basic notation • ITU-T Recommendation X.681 (07/2002), Information technology - Abstract Syntax Notation One (ASN.1): Information object specification • ITU-T Recommendation X.682 (07/2002), Information technology - Abstract Syntax Notation One (ASN.1): Constraint specification • ITU-T Recommendation X.683 (07/2002), Information technology - Abstract Syntax Notation One (ASN.1): Parameterization of ASN.1 specifications It has inbuilt support for: • ITU-T Recommendation X.880 (07/1994), Information technology - Remote Operations: Concepts, model and notation 14.1. About ASN.1 The most useful first step in writing an ASN.1-based dissector is to learn about ASN.1. There are a number of free resources available to help with this. One collection of such resources is maintained on the ASN.1 Consortium’s web site. 14.2. ASN.1 Dissector Requirements The compiler needs 4 input files: an ASN.1 description of a protocol, a .cnf file, and two template files. The ASN.1 specification may have to be edited to work, however work is in progress to at least read all ASN1 specifications. Changing the ASN1 file is being deprecated as this creates problems when updating protocols. The H.248 Binary encoding dissector is a good example of a dissector with relatively small changes. A complete simple ASN1 UDP-based dissector is also available. 14.2.1. Building An ASN.1-Based Plugin The usual way to build an ASN.1-based dissector is to put it into the epan/dissectors/asn1 subtree. This works well and is somewhat simpler than building as a plugin, but there are two reasons one might want to build as a plugin: • To speed development, since only the plugin needs to be recompiled. • To allow flexibility in deploying an updated plugin, since only the plugin needs to be distributed. Reasons one might not want to build as a plugin: • The code is somewhat more complex. • The CMakeFile is quite a bit more complex. • Building under the asn1 subtree keeps all such dissectors together. If you still think you’d like to build your module as a plugin, see Building ASN1 Plugins. 14.3. Understanding Error Messages When running asn2wrs, you could get the following errors: • A LexToken error (main.ParseError: LexToken(DOT,'.',71)) means that something is not understood in the ASN1 file, line 71, around the dot (.) - can be the dot itself. • A ParseError (main.ParseError: LexToken(SEMICOLON,';',88)) means that the ';' (SEMICOLON) is not understood. Maybe removing it will work? 14.4. Hand-Massaging The ASN.1 File If a portion of your ASN.1 file is unsupported you can modify it by hand as needed. However, the preferred way to resolve the issue is to report it on the wireshark-dev mailing list or in the issue tracker so that asn2wrs can be improved. 14.5. Command Line Syntax ASN.1 to Wireshark dissector compiler asn2wrs [-h|?] [-d dbg] [-b] [-p proto] [-c cnf_file] [-e] input_file(s) ... -h|? : Usage -b : BER (default is PER) -u : Unaligned (default is aligned) -p proto : Protocol name (implies -S). Default is module-name from input_file (renamed by #.MODULE if present) -o name : Output files name core (default is <proto>) -O dir : Output directory for dissector -c cnf_file : Conformance file -I path : Path for conformance file includes -e : Create conformance file for exported types -E : Just create conformance file for exported types -S : Single output for multiple modules -s template : Single file output (template is input file without .c/.h extension) -k : Keep intermediate files though single file output is used -L : Suppress #line directive from .cnf file -D dir : Directory for input_file(s) (default: '.') -C : Add check for SIZE constraints -r prefix : Remove the prefix from type names input_file(s) : Input ASN.1 file(s) -d dbg : Debug output, dbg = [l][y][p][s][a][t][c][m][o] l - lex y - yacc p - parsing s - internal ASN.1 structure a - list of assignments t - tables c - conformance values m - list of compiled modules with dependency o - list of output files 14.6. Generated Files Asn2wrs creates the following intermediate files: • packet-proto-ett.c • packet-proto-ettarr.c • packet-proto-fn.c • packet-proto-hf.c • packet-proto-hfarr.c • packet-proto-val.h • packet-proto-exp.h • packet-proto-table.c • packet-proto-syn-reg.c These files should be included in the template file as described in the conformance file examples. Some are optional. 14.7. Step By Step Instructions 1. Create a directory for your protocol in the epan/dissectors/asn1 directory and put your ASN.1 file there. 2. Copy CMakeLists.txt from another ASN.1 dissector and edit it to suit your needs. 3. Create a .cnf file either by copying an existing one and editing it or using the empty example above. 4. Create template files either by copying suitable existing ones and editing them or use the examples above, putting your protocol name in the appropriate places. 5. Add your dissector to epan/dissectors/asn1/CMakeLists.txt 6. Test generating your dissector by building the generate_dissector-*proto* target. 7. Depending on the outcome you may have to edit your .cnf file, ASN.1 file etc…​ 8. Build Wireshark. 14.8. Hints For Using Asn2wrs Asn2wrs does not support all of ASN.1 yet. This means you might need to modify the ASN.1 definition before it will compile. This page lists some tips and tricks that might make your life easier. COMPONENTS OF Asn2wrs does not support the COMPONENTS OF directive. This means that you will have to modify the asn definition to manually remove all COMPONENTS OF directives. Fortunately this is pretty easy. COMPONENTS OF is a directive in ASN.1 which include all specified fields in the referenced SEQUENCE by those fields as if they had been explicitly specified. Example Assume you have some definition that looks like this: Foo ::= SEQUENCE { field_1 INTEGER, field_2 INTEGER } Bar ::= SEQUENCE { COMPONENTS OF Foo, field_3 INTEGER } Since Asn2wrs can not handle COMPONENTS OF you will have to modify the ASN.1 file so that instead Bar will look like this : Bar ::= SEQUENCE { field_1 INTEGER, field_2 INTEGER, field_3 INTEGER } That was pretty easy wasn’t it? Semicolon Characters In some ASN1 you may have semicolon characters like this: PBAddressString ::= SEQUENCE { extension INTEGER(1), natureOfAddressIndicator INTEGER, numberingPlanInd INTEGER, digits OCTET STRING (SIZE(0..19)) }; You will have to remove the last semicolon character. Parameters Parameters will have to be replaced too. Something like this: AChBillingChargingCharacteristics {PARAMETERS-BOUND : bound} ::= OCTET STRING (SIZE (minAChBillingChargingLength .. maxAChBillingChargingLength)) Will have to be replaced with the real values of the parameters: AChBillingChargingCharacteristics ::= OCTET STRING (SIZE (5 .. 177)) 14.8.1. ANY And Parameterized Types Asn2wrs can handle the type ANY but not parameterized types. Fortunately this is easy to work around with small changes to the ASN file and some conformance file magic. Assuming you have a construct that looks something like this: AlgorithmIdentifier ::= SEQUENCE { algorithm ALGORITHM.&id({SupportedAlgorithms}), parameters ALGORITHM.&Type({SupportedAlgorithms}{@algorithm}) OPTIONAL } Which is essentially a structure that takes two fields, one field being an object identifier and the second field that can be just about anything, depending on what object identifier was used. Here we just have to rewrite this SEQUENCE slightly so that it looks like this: AlgorithmIdentifier ::= SEQUENCE { algorithm OBJECT IDENTIFIER, parameters ANY OPTIONAL } The only thing remaining now is to add the actual code to manage the dissection of this structure. We do this by using the \#.FN_BODY conformance file directive, which will replace the function body of a dissector with the contents that you specify in the conformance file. For this one we need a string where we store the OID from AlgorithmIdentifier/algorithm so that we can pick it up and act on later from inside the dissector for AlgorithmIdentifier/parameters. So we have to add something like this: static char algorithm_id[64]; /* 64 chars should be enough? */ to the template file. Then we add the following to the conformance file: #.FN_BODY AlgorithmIdentifier/algorithmId offset = dissect_ber_object_identifier(FALSE, pinfo, tree, tvb, offset, hf_x509af_algorithm_id, algorithm_id); #.FN_BODY AlgorithmIdentifier/parameters offset=call_ber_oid_callback(algorithm_id, tvb, offset, pinfo, tree); This example comes from the X509AF dissector. Please see the code there for more examples on how to do this. 14.8.2. Tagged Assignments There is currently a bug in Asn2wrs that makes it generate incorrect code for the case when tagged assignments are used. The bug is two-fold, first the generated code "forgets" to strip of the actual tag and length, second it fails to specify 'implicit_tag' properly. A tagged assignment is something that looks like this example from the FTAM asn specification: Degree-Of-Overlap ::= [APPLICATION 30] IMPLICIT INTEGER { normal(0), consecutive(1), concurrent(2) } I.e. an assignment that also specifies a tag value. Until Asn2wrs is enhanced to handle these constructs you MUST add a workaround for it to the conformance file: #.FN_BODY Degree-Of-Overlap gint8 class; gboolean pc, ind_field; gint32 tag; gint32 len1; /* * XXX asn2wrs can not yet handle tagged assignment yes so this * is some conformance file magic to work around that bug */ offset = get_ber_identifier(tvb, offset, &class, &pc, &tag); offset = get_ber_length(tree, tvb, offset, &len1, &ind_field); offset = dissect_ber_integer(TRUE, pinfo, tree, tvb, offset, hf_index, NULL); This tells Asn2wrs to not autogenerate any code at all for the Degree-Of-Overlap object instead it should use the code specified here. Note that we do have to specify the implicit_tag value explicitly and we can NOT use the parameter passed to the function from the caller (also due to the bug in Asn2wrs) this is the TRUE parameter in the call to dissect_ber_integer(). We specify TRUE here since the definition of Degree-Of-Overlap was using IMPLICIT tags and would have specified FALSE if it was not. The code above can be easily cut-n-pasted into the conformance file with the exception of the last line that actually calls the next dissector helper (…​dissect_ber_integer…​ in this case). The easiest way to find out exactly what this final line should look like in the conformance file; just generate the dissector first without this workaround and look at what call was generated. Then put that line in the conformance directive and replace implicit_tag with either TRUE or FALSE depending on whether IMPLICIT is used or not. 14.8.3. Untagged CHOICEs Asn2wrs cannot handle untagged CHOICEs within either a SET or a SEQUENCE. For example: MessageTransferEnvelope ::= SET { ... content-type ContentType, ... } ContentType ::= CHOICE { built-in BuiltInContentType, extended ExtendedContentType } BuiltInContentType ::= [APPLICATION 6] INTEGER { unidentified(0), external(1), interpersonal-messaging-1984(2), interpersonal-messaging-1988(22), edi-messaging(35), voice-messaging(40)} ExtendedContentType ::= OBJECT IDENTIFIER The Asn2wrs SET/SEQUENCE parsing only looks one level deep into the dissection tree and does not have access to class/tags of the elements in the CHOICE. As with COMPONENTS OF, the solution is to expand the CHOICE in-line within the SET or SEQUENCE, but make sure that each element of the CHOICE is marked as OPTIONAL. For example, MessageTransferEnvelope ::= SET { ... built-in BuiltInContentType OPTIONAL, extended ExtendedContentType OPTIONAL ... } This isn’t an entirely correct ASN.1 definition, but should allow successful parsing. 14.8.4. Imported Module Name Conflicts When importing a module using #.INCLUDE in the conformance file, this may introduce a definition from the module which contradicts the definition used in the current ASN.1 file. For example, the X.509 Authentication Framework defines Time as Time ::= CHOICE {utcTime UTCTime, generalizedTime GeneralizedTime } whereas X.411 defines Time as Time ::= UTCTime This can lead to failure to decode the ASN.1 as, in the example, Asn2wrs will be passed the wrong attributes when trying to decode an X.411 time. In order to solve this problem, (if you don’t want to globally change the conflicting name within the ASN.1 module), then you must add an appropriate #.TYPE_ATTR into the conformance file before the #.INCLUDE line. For example #.TYPE_ATTR Time TYPE = FT_STRING DISPLAY = BASE_NONE STRING = NULL BITMASK = 0 14.9. Simple ASN.1-Based Dissector The following snippets show the different files that make up a dissector for a “FOO” protocol dissector. README.txt.  FOO protocol dissector ---------------------- This trivial dissector is an example for the struggling dissector developer (me included) of how to create a dissector for a protocol that is encapsulated in UDP packets for a specific port, and the packet data is ASN1 PER encoded. The thing that took me a while to figure out was that in order to see my packet dissected on the detail pane, I had to: 1. Tell the compiler which block in the ASN1 definition is a PDU definition by adding FOO-MESSAGE under the #.PDU directive in the foo.cnf file 2. Add a call to dissect_FOO_MESSAGE_PDU() function in the dissect_foo() function in the packet-foo-template.c file. To build and test it: 1. in foo directory, run make 2. run make copy_files 3. add packet-foo.c and packet-foo.h to epan/dissectors/Makefile.common 4. run top level make CAVEAT: Makefile.nmake was not tested . You can take it from here :-) --00-- foo.asn. -- FOO PROTOCOL -- FOO-PROTOCOL DEFINITIONS AUTOMATIC TAGS ::= BEGIN -- General definitions MessageId ::= INTEGER (0..65535) FlowId ::= INTEGER (0..65535) MessageData ::= SEQUENCE { name OCTET STRING(SIZE(10)), value OCTET STRING(SIZE(10)) } FOO-MESSAGE ::= SEQUENCE { messageId MessageId, flowId FlowId, messageData MessageData } END foo.cnf. # foo.cnf # FOO conformation file #Id$#.MODULE_IMPORT #.EXPORTS #.PDU FOO-MESSAGE #.NO_EMIT #.TYPE_RENAME #.FIELD_RENAME #.END packet-foo-template.h. /* packet-foo.h * Routines for foo packet dissection * * Wireshark - Network traffic analyzer * By Gerald Combs <[email protected]> * Copyright 1998 Gerald Combs * * SPDX-License-Identifier: GPL-2.0-or-later */ #ifndef PACKET_FOO_H #define PACKET_FOO_H #endif /* PACKET_FOO_H */ packet-foo-template.c. /* packet-foo.c * Routines for FOO packet dissection * * Wireshark - Network traffic analyzer * By Gerald Combs <[email protected]> * Copyright 1998 Gerald Combs * * SPDX-License-Identifier: GPL-2.0-or-later */ #include "config.h" #include <glib.h> #include <epan/packet.h> #include <epan/conversation.h> #include <stdio.h> #include <string.h> #include "packet-per.h" #include "packet-foo.h" #define PNAME "FOO Protocol" #define PSNAME "FOO" #define PFNAME "foo" #define FOO_PORT 5001 /* UDP port */ static dissector_handle_t foo_handle=NULL; void proto_reg_handoff_foo(void); void proto_register_foo(void); /* Initialize the protocol and registered fields */ static int proto_foo = -1; static int global_foo_port = FOO_PORT; #include "packet-foo-hf.c" /* Initialize the subtree pointers */ static int ett_foo = -1; #include "packet-foo-ett.c" #include "packet-foo-fn.c" static void dissect_foo(tvbuff_t *tvb, packet_info *pinfo, proto_tree *tree) { proto_item *foo_item = NULL; proto_tree *foo_tree = NULL; int offset = 0; /* make entry in the Protocol column on summary display */ if (check_col(pinfo->cinfo, COL_PROTOCOL)) col_set_str(pinfo->cinfo, COL_PROTOCOL, PNAME); /* create the foo protocol tree */ if (tree) { foo_item = proto_tree_add_item(tree, proto_foo, tvb, 0, -1, FALSE); foo_tree = proto_item_add_subtree(foo_item, ett_foo); dissect_FOO_MESSAGE_PDU(tvb, pinfo, foo_tree); } } /*--- proto_register_foo -------------------------------------------*/ void proto_register_foo(void) { /* List of fields */ static hf_register_info hf[] = { #include "packet-foo-hfarr.c" }; /* List of subtrees */ static gint *ett[] = { &ett_foo, #include "packet-foo-ettarr.c" }; /* Register protocol */ proto_foo = proto_register_protocol(PNAME, PSNAME, PFNAME); /* Register fields and subtrees */ proto_register_field_array(proto_foo, hf, array_length(hf)); proto_register_subtree_array(ett, array_length(ett)); } /*--- proto_reg_handoff_foo ---------------------------------------*/ void proto_reg_handoff_foo(void) { static gboolean inited = FALSE; if( !inited ) { foo_handle = create_dissector_handle(dissect_foo, proto_foo); dissector_add("udp.port", global_foo_port, foo_handle); inited = TRUE; } } CMakeLists.txt. set( PROTOCOL_NAME foo ) set( PROTO_OPT ) set( EXT_ASN_FILE_LIST ) set( ASN_FILE_LIST Foo.asn ) set( EXTRA_DIST${ASN_FILE_LIST}
packet-${PROTOCOL_NAME}-template.c${PROTOCOL_NAME}.cnf
)

set( SRC_FILES
${EXTRA_DIST}${EXT_ASN_FILE_LIST}
)

set( A2W_FLAGS  )

ASN2WRS()

14.10. Conformance (.cnf) Files

The .cnf file tells the compiler what to do with certain things, such as skipping auto generation for some ASN.1 entries. They can contain the following directives:

#.OPT
Compiler options.
#.MODULE and #.MODULE_IMPORT
Assign Wireshark protocol name to ASN.1 module name.
#.INCLUDE
Include another conformance file.
#.EXPORTS
Export type or information object class.
#.PDU, #.PDU_NEW, #.REGISTER, #.REGISTER_NEW, and #.SYNTAX
Create PDU functions and register them optionally to dissector table.
#.CLASS
Declare or define information object class.
#.ASSIGNED_OBJECT_IDENTIFIER
Declare assigned object identifier.
#.TABLE_HDR, #.TABLE_BODY, and #.TABLE_FTR
User tables.
#.OMIT_ASSIGNMENT, #.NO_OMIT_ASSGN, #.OMIT_ALL_ASSIGNMENTS, #.OMIT_ASSIGNMENTS_EXCEPT, #.OMIT_ALL_TYPE_ASSIGNMENTS, #.OMIT_TYPE_ASSIGNMENTS_EXCEPT, #.OMIT_ALL_VALUE_ASSIGNMENTS, and #.OMIT_VALUE_ASSIGNMENTS_EXCEPT
Ignore assignments from ASN.1 source.
#.VIRTUAL_ASSGN, #.SET_TYPE, #.MAKE_ENUM, #.MAKE_DEFINES, and #.ASSIGN_VALUE_TO_TYPE
Unknown.
#.TYPE_RENAME, #.FIELD_RENAME, and #.TF_RENAME
Type/field renaming
#.IMPORT_TAG, #.TYPE_ATTR, #.FIELD_ATTR
Type attributes
#.FN_HDR, #.FN_BODY, #.FN_FTR, and #.FN_PARS
Type function modification
#.END
End of directive
#.END_OF_CNF
End of conformance file

14.10.1. Example .cnf File

#.MODULE IMPORT
InformationFramework x509if

#.INCLUDE ../x509if/x509if_exp.cnf

#.EXPORTS +
ObjectName

#.PDU
ObjectName

#.REGISTER
Certificate B "2.5.4.36" "id-at-userCertificate"

#.SYNTAX
ObjectName [FriendlyName]

#.NO_EMIT ONLY_VALS
# this can be used with: [WITH_VALS|WITHOUT_VALS|ONLY_VALS]
# using NO_EMIT NO_VALS means it won't generate value_string array for it
Type1

#.USER DEFINED
Type1 [WITH_VALS|WITHOUT_VALS|ONLY_VALS]

#.TYPE_RENAME

#.FIELD_RENAME

#.TYPE_ATTR Ss-Code TYPE = FT_UINT16 DISPLAY = BASE_HEX STRINGS = VALS(ssCode_vals)

# This entry will change the hf definition from the auto-generated one for Ss-Code ::= OCTET STRING(SIZE(1))

{ &hf_gsm_map_ss_Code,
{ "ss-Code", "gsm_map.ss_Code",
FT_BYTES, BASE_HEX, NULL, 0, "", HFILL }},

# to:

{ &hf_gsm_map_ss_Code,
{ "ss-Code", "gsm_map.ss_Code",
FT_UINT16, BASE_HEX, VALS(ssCode_vals), 0, "", HFILL }},

In the proto_abbr-template.c file the corresponding value string must be inserted. As an example the following would be included in proto_abbr-template.c to define ssCode_vals:

static const value_string ssCode_vals[] = {
{ 0, "ssCodeString 1" },     /* The string for value 0 */
{ 1, "String 2" },           /* String for value 1 */
{ 5, "String for value 5" }, /* Value String 5 */
{ 0, NULL }                  /* Null terminated array */
}

Note that the NULL value must be the final entry and that the index values need not be consecutive.

Foo is expressed in different ways depending on where you want to insert your code and the ASN.1 code in question.

• Foo
• Foo/foo
• Foo/_item/foo

For Tagged type use:

Foo/_untag

#.FN_HDR Foo
/* This is code to be inserted into the dissector for Foo BEFORE the BER/PER helper is called. */
tvbuff_t *out_tvb;
tvbuff_t *next_tvb = NULL;

#.FN_BODY Foo
/* This here is code to replace the actual call to the helper completely. */
offset = dissect_ber_octet_string(implicit_tag, pinfo, tree, tvb, offset, hf_index, &out_tvb);

/* Putting %(DEFAULT_BODY)s inside #.FN_BODY will insert the original code there. */

#.FN_FTR Foo
/* This is code to be inserted into the dissector for Foo AFTER the ber/per helper has returned called. */
if (foo_reassemble) {
...
}

#.FN_PARS

#.END

14.10.2. Example packet-protocol-template.h File

Example template.h file. Replace all PROTOCOL/protocol references with the name of your protocol.

/* packet-protocol.h
* Routines for Protocol packet dissection
*
* $Id$
*
* Wireshark - Network traffic analyzer
* By Gerald Combs <[email protected]>
*
*/

#ifndef PACKET_PROTOCOL_H
#define PACKET_PROTOCOL_H

#include "packet-protocol-exp.h"

#endif  /* PACKET_PROTOCOL_H */

14.10.3. Example packet-protocol-template.c File

Example template.c file. Replace all PROTOCOL/protocol references with the name of your protocol.

/* packet-protocol.c
* Routines for PROTOCOL packet dissection
*
* $Id$
*
* Wireshark - Network traffic analyzer
* By Gerald Combs <[email protected]>
*
*/

#include "config.h"

#include <glib.h>
#include <epan/packet.h>
#include <epan/conversation.h>

#include <stdio.h>
#include <string.h>

#include "packet-ber.h"
#include "packet-protocol.h"

#define PNAME  "This Is The Protocol Name"
#define PSNAME "PROTOCOL"
#define PFNAME "protocol"

/* Initialize the protocol and registered fields */
int proto_protocol = -1;
#include "packet-protocol-hf.c"

/* Initialize the subtree pointers */
#include "packet-protocol-ett.c"

#include "packet-protocol-fn.c"

/*--- proto_register_protocol ----------------------------------------------*/
void proto_register_protocol(void) {

/* List of fields */
static hf_register_info hf[] = {
#include "packet-protocol-hfarr.c"
};

/* List of subtrees */
static gint *ett[] = {
#include "packet-protocol-ettarr.c"
};

/* Register protocol */
proto_protocol = proto_register_protocol(PNAME, PSNAME, PFNAME);

/* Register fields and subtrees */
proto_register_field_array(proto_protocol, hf, array_length(hf));
proto_register_subtree_array(ett, array_length(ett));

}

/*--- proto_reg_handoff_protocol -------------------------------------------*/
void proto_reg_handoff_protocol(void) {
#include "packet-protocol-dis-tab.c"
}

14.11. Conformance File Directive Reference

The following directives can be used in conformance (.cnf) files:

14.11.1. #.END

Some of the other directives in the Asn2wrs conformance file consists of multiple lines. The .END directive is used to terminate such a directive. All other “.” directives (except #.INCLUDE) automatically act as an implicit #.END directive which is why you will not see many #.END directives in the conformance files for the dissectors shipped with Wireshark.

14.11.2. #.EXPORTS

This directive in the Asn2wrs conformation file is used to export functions for type decoding from the dissector.

14.11.2.1. Syntax

#.EXPORTS

TypeName [WITH_VALS|WITHOUT_VALS|ONLY_VALS] [WS_VAR] [NO_PROT_PREFIX]
...
#.END

Options:

• WITH_VALS (default): Exports dissection function and value string table if present.
• WITHOUT_VALS: Exports only the dissection function.
• ONLY_VALS: Exports only the value string table.
• WS_VAR and WS_VAR_IMPORT: Used for value string table so as it can be exported from libwireshark.dll.
• NO_PROT_PREFIX: - value string table name does not have protocol prefix

14.11.2.2. Example

#.EXPORTS
NonStandardParameter
RasMessage                      WITH_VALS WS_VAR
H323-UU-PDU/h323-message-body   ONLY_VALS WS_VAR
#.END

14.11.3. #.FN_BODY

Sometimes, like when we have ANY types, we might want to replace whatever function body that Asn2wrs generates with code of our own. This is what this directive allows us to do.

14.11.3.1. Example: ANY

Asn2wrs can handle the type ANY but we have to help it by adding some small changes to the conformance file. Assuming you have a construct that looks something like this:

AlgorithmIdentifier ::= SEQUENCE {
algorithm OBJECT IDENTIFIER,
parameters ANY OPTIONAL
}

To handle this we need to specify our own function bodies to both the algorithm and the parameters fields, which we do using the #.FN_BODY directive.

This particular example also requires us to keep some state between the two field dissectors, namely the OBJECT IDENTIFIER from algorithm which specifies what the content of parameters is. For this one we need a string where we store the oid from AlgorithmIdentifier/algorithm so that we can pick it up and act on later from inside the dissector for AlgorithmIdentifier/parameters. So we have to add:

static char algorithm_id[64]; /* 64 chars should be enough? */

to the template file as a placeholder to remember which OID we picked up. Then we add to the conformance file:

#.FN_BODY AlgorithmIdentifier/algorithmId
offset = dissect_ber_object_identifier(FALSE, pinfo, tree, tvb, offset,
hf_x509af_algorithm_id, algorithm_id);

#.FN_BODY AlgorithmIdentifier/parameters
offset=call_ber_oid_callback(algorithm_id, tvb, offset, pinfo, tree);

The dissector body we specified for AlgorithmIdentifier/algorithmId here stores the retrieved OID inside the variable algorithm_id we specified. When we later come to the dissector for AlgorithmIdentifier/parameters we pick this OID up from the static variable and just pass it on to the ber/oid dissector helper.

This example comes from the X509AF dissector. Please see the code there for more examples on how to do this.

14.11.4. #.MODULE_IMPORT And #.INCLUDE

These directive in the Asn2wrs conformation file are used to manage references to external type definitions, i.e. IMPORTS. The examples below are all from the X.509 Authentication Framework (x509af) dissector source code in Wireshark.

14.11.4.1. Example ASN

This is an example from the X509AF dissector which amongst other things imports definitions from X.509 InformationFramework:

IMPORTS
Name, ATTRIBUTE, AttributeType, MATCHING-RULE, Attribute
FROM InformationFramework informationFramework

Which tells the Asn2wrs compiler that the types 'Name', 'ATTRIBUTE', 'AttributeType', 'MATCHING-RULE' and 'Attribute' are declared inside the external InformationFramework ASN module and that they are referenced from this module. In order for Asn2wrs to generate correct code for the dissection it is necessary to give it some help by telling what kind of types these are, i.e. are they INTEGERs or SEQUENCEs or something else.

In order to be able to access these functions from this module it is important that these types have been declared as #.EXPORTS in the X509 InformationFramework dissector so that they are exported and that we can link to them.

14.11.5. #.MODULE_IMPORT

First we need to tell Asn2wrs which protocol name Wireshark uses for the functions in this external import, so that Asn2wrs can generate suitable function call signatures to these external functions. We do this by adding a directive to the conformation file :

#.MODULE_IMPORT
InformationFramework x509if

Where InformationFramework is the ASN name for the module used in the asn IMPORTS declaration and that x509if is the name we use inside Wireshark for this protocol. This tells Asn2wrs that the function name to call to dissect Name would be dissect_x509if_Name(…​). Without this knowledge Asn2wrs would not know which function name to generate.

14.11.6. #.INCLUDE

Second, in order for Asn2wrs to generate correct code it also needs to know the BER type and class of these types that are imported, since that would affect how they are to be encoded on the wire. This information about what kind of BER attributes these imported types have are done using the #.INCLUDE directive in the conformance file:

#.INCLUDE ../x509if/x509if_exp.cnf

See #.EXPORTS for a description and examples of these types of include files.

14.11.7. #.NO_EMIT And #.USER_DEFINED

These two directives in the conformance file for Asn2wrs can be used to suppress generation of dissectors and/or value_strings and similar for a protocol. This is useful when there are types in the asn definition that either Asn2wrs can not handle or if we want to handle the dissection ourself inside the template file to do additional state keeping or things that Asn2wrs does not know how to manage.

These two directives are very similar. The only difference between is that #.NO_EMIT will suppress emitting the dissector for that function and also any value_strings while #.USER_DEFINED will emit declarations instead of definitions.

I.e. #.USER_DEFINED will emit declarations such as extern const value_string Type_vals[]; and [static] int dissect_Proto_Type(…​);

Use #.NO_EMIT if you dont need to call this function at all from anywhere (except from the template itself) and use #.USER_DEFINED is better if you implement the function inside the template but still want to allow it to be called from other places.

14.11.7.1. Syntax

#.USER_DEFINED
TypeName [WITH_VALS|WITHOUT_VALS|ONLY_VALS]
...
#.END
#.NO_EMIT
TypeName [WITH_VALS|WITHOUT_VALS|ONLY_VALS]
...
#.END

Options:

• WITH_VALS (default): Both dissection function and value string table are user defined and not emitted.
• WITHOUT_VALS: Only dissection function is user defined and not emitted.
• ONLY_VALS: Only value string table is user defined and not emitted.

14.11.8. #.PDU and #.PDU_NEW

This directive in the Asn2wrs conformation file will generate a wrapper function around an object dissector. This is useful if there is an object inside the ASN.1 definition that we really want to register as a protocol dissector or if we want it to have a well known signature.

14.11.8.1. Function Names

The wrapper functions that are created will all be named and have the following signature:

static void dissect_ProtocolName_ObjectName(tvbuff_t *tvb, packet_info *pinfo, proto_tree *tree);

Notice that this is exactly the same signature as dissector_t which is used by all dissector entry points.

14.11.8.2. Usage

To get Asn2wrs to generate such wrapper functions you just have to list all objects one by one on the lines following the #.PDU declaration.

14.11.8.3. Example

#.PDU
SomeObject

This will result in Asn2wrs creating this wrapper function in the packet-foo.c dissector file:

static void dissect_SomeObject_PDU(tvbuff_t *tvb, packet_info *pinfo, proto_tree *tree) {
dissect_foo_SomeObject(FALSE, ...
}

This function can then later be called or referenced from the template file or even exported.

14.11.9. #.REGISTER and #.REGISTER_NEW

This directive in the Asn2wrs conformation file can be used to register a dissector for an object to an OID. This is very useful for X.509 and similar protocols where structures and objects are frequently associated with an OID. In particular, some of the structures here encode an OID in a field and then the content in a different field later, and how that field is to be dissected depends on the previously seen OID.

One such example can be seen in the ASN.1 description for X.509/AuthenticationFramework which has a structure defined such as

AlgorithmIdentifier ::= SEQUENCE {
algorithm   ALGORITHM.&id({SupportedAlgorithms}),
parameters  ALGORITHM.&Type({SupportedAlgorithms}{@algorithm}) OPTIONAL
}

Which means that the parameters field in this structure, what this field contains and how it is to be dissected depends entirely upon what OID is stored inside algorithm. A whole bunch of protocols use similar types of constructs. While dissection of this particular structure itself currently has to be hand implemented inside the template (see x509af for examples of how this very structure is handled there). The #.REGISTER option in the conformance file will at least make it easy and painless to attach the actual OID to dissector mappings.

14.11.9.1. Usage

To get Asn2wrs to generate such automatic registration of OID to dissector mappings just use the #.REGISTER directive in the conformation file.

14.11.9.2. Example

#.REGISTER
Certificate  B  "2.5.4.36" "id-at-userCertificate"

Which will generate the extra code to make sure that anytime Wireshark needs to dissect the blob associated to the OID "2.5.4.36" it now knows that that is done by calling the subroutine to dissect a Certificate in the current protocol file. The "id-at-userCertificate" is just a free form text string to make Wireshark print a nice name together with the OID when it presents it in the decode pane. While this can be just about anything you want I would STRONGLY use the name used to this object/oid in the actual ASN.1 definition file.

14.11.9.3. Include File

During the compilation phase Asn2wrs will put all the extra registration code for this in the include file packet-protocol-dis-tab.c. Make sure that you include this file from the template file or the registration to an OID will never occur. #include "packet-protocol-dis-tab.c" should be included from the proto_reg_handoff_protocol function in the template file.

The various dissectors we have for X.509 such as the X.509AF which contains several examples of how to use this option. That dissector can also serve as an example on how one would handle structures of the type AlgorithmIdentifier above. Asn2wrs can NOT handle these types of structures so we need to implement them by hand inside the template.

Chapter 15. This Document’s License (GPL)

As with the original license and documentation distributed with Wireshark, this document is covered by the GNU General Public License (GNU GPL).

If you haven’t read the GPL before, please do so. It explains all the things that you are allowed to do with this code and documentation.

		    GNU GENERAL PUBLIC LICENSE
Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim copies
of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your
freedom to share and change it.  By contrast, the GNU General Public
License is intended to guarantee your freedom to share and change free
software--to make sure the software is free for all its users.  This
General Public License applies to most of the Free Software
Foundation's software and to any other program whose authors commit to
using it.  (Some other Free Software Foundation software is covered by
the GNU Library General Public License instead.)  You can apply it to

When we speak of free software, we are referring to freedom, not
price.  Our General Public Licenses are designed to make sure that you
have the freedom to distribute copies of free software (and charge for
this service if you wish), that you receive source code or can get it
if you want it, that you can change the software or use pieces of it
in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid
anyone to deny you these rights or to ask you to surrender the rights.
These restrictions translate to certain responsibilities for you if you
distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether
gratis or for a fee, you must give the recipients all the rights that
you have.  You must make sure that they, too, receive or can get the
source code.  And you must show them these terms so they know their
rights.

We protect your rights with two steps: (1) copyright the software, and
(2) offer you this license which gives you legal permission to copy,
distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain
that everyone understands that there is no warranty for this free
software.  If the software is modified by someone else and passed on, we
want its recipients to know that what they have is not the original, so
that any problems introduced by others will not reflect on the original
authors' reputations.

Finally, any free program is threatened constantly by software
patents.  We wish to avoid the danger that redistributors of a free
program will individually obtain patent licenses, in effect making the
program proprietary.  To prevent this, we have made it clear that any
patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and
modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains
a notice placed by the copyright holder saying it may be distributed
under the terms of this General Public License.  The "Program", below,
refers to any such program or work, and a "work based on the Program"
means either the Program or any derivative work under copyright law:
that is to say, a work containing the Program or a portion of it,
either verbatim or with modifications and/or translated into another
language.  (Hereinafter, translation is included without limitation in

Activities other than copying, distribution and modification are not
covered by this License; they are outside its scope.  The act of
running the Program is not restricted, and the output from the Program
is covered only if its contents constitute a work based on the
Program (independent of having been made by running the Program).
Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's
source code as you receive it, in any medium, provided that you
conspicuously and appropriately publish on each copy an appropriate
copyright notice and disclaimer of warranty; keep intact all the
notices that refer to this License and to the absence of any warranty;
and give any other recipients of the Program a copy of this License
along with the Program.

You may charge a fee for the physical act of transferring a copy, and
you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion
of it, thus forming a work based on the Program, and copy and
distribute such modifications or work under the terms of Section 1
above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices
stating that you changed the files and the date of any change.

b) You must cause any work that you distribute or publish, that in
whole or in part contains or is derived from the Program or any
part thereof, to be licensed as a whole at no charge to all third
parties under the terms of this License.

c) If the modified program normally reads commands interactively
when run, you must cause it, when started running for such
interactive use in the most ordinary way, to print or display an
announcement including an appropriate copyright notice and a
notice that there is no warranty (or else, saying that you provide
a warranty) and that users may redistribute the program under
these conditions, and telling the user how to view a copy of this
License.  (Exception: if the Program itself is interactive but
does not normally print such an announcement, your work based on
the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole.  If
identifiable sections of that work are not derived from the Program,
and can be reasonably considered independent and separate works in
themselves, then this License, and its terms, do not apply to those
sections when you distribute them as separate works.  But when you
distribute the same sections as part of a whole which is a work based
on the Program, the distribution of the whole must be on the terms of
entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest
your rights to work written entirely by you; rather, the intent is to
exercise the right to control the distribution of derivative or
collective works based on the Program.

In addition, mere aggregation of another work not based on the Program
with the Program (or with a work based on the Program) on a volume of
a storage or distribution medium does not bring the other work under

3. You may copy and distribute the Program (or a work based on it,
under Section 2) in object code or executable form under the terms of
Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable
1 and 2 above on a medium customarily used for software interchange; or,

b) Accompany it with a written offer, valid for at least three
years, to give any third party, for a charge no more than your
cost of physically performing source distribution, a complete
machine-readable copy of the corresponding source code, to be
distributed under the terms of Sections 1 and 2 above on a medium
customarily used for software interchange; or,

c) Accompany it with the information you received as to the offer
to distribute corresponding source code.  (This alternative is
allowed only for noncommercial distribution and only if you
received the program in object code or executable form with such
an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for
making modifications to it.  For an executable work, complete source
code means all the source code for all modules it contains, plus any
associated interface definition files, plus the scripts used to
control compilation and installation of the executable.  However, as a
special exception, the source code distributed need not include
anything that is normally distributed (in either source or binary
form) with the major components (compiler, kernel, and so on) of the
operating system on which the executable runs, unless that component
itself accompanies the executable.

If distribution of executable or object code is made by offering
access to copy the source code from the same place counts as
distribution of the source code, even though third parties are not
compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program
except as expressly provided under this License.  Any attempt
otherwise to copy, modify, sublicense or distribute the Program is
However, parties who have received copies, or rights, from you under
this License will not have their licenses terminated so long as such
parties remain in full compliance.

5. You are not required to accept this License, since you have not
signed it.  However, nothing else grants you permission to modify or
distribute the Program or its derivative works.  These actions are
prohibited by law if you do not accept this License.  Therefore, by
modifying or distributing the Program (or any work based on the
Program), you indicate your acceptance of this License to do so, and
all its terms and conditions for copying, distributing or modifying
the Program or works based on it.

6. Each time you redistribute the Program (or any work based on the
original licensor to copy, distribute or modify the Program subject to
these terms and conditions.  You may not impose any further
restrictions on the recipients' exercise of the rights granted herein.
You are not responsible for enforcing compliance by third parties to

7. If, as a consequence of a court judgment or allegation of patent
infringement or for any other reason (not limited to patent issues),
conditions are imposed on you (whether by court order, agreement or
excuse you from the conditions of this License.  If you cannot
distribute so as to satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a consequence you
may not distribute the Program at all.  For example, if a patent
license would not permit royalty-free redistribution of the Program by
all those who receive copies directly or indirectly through you, then
the only way you could satisfy both it and this License would be to
refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under
any particular circumstance, the balance of the section is intended to
apply and the section as a whole is intended to apply in other
circumstances.

It is not the purpose of this section to induce you to infringe any
patents or other property right claims or to contest validity of any
such claims; this section has the sole purpose of protecting the
integrity of the free software distribution system, which is
generous contributions to the wide range of software distributed
through that system in reliance on consistent application of that
system; it is up to the author/donor to decide if he or she is willing
to distribute software through any other system and a licensee cannot
impose that choice.

This section is intended to make thoroughly clear what is believed to
be a consequence of the rest of this License.

8. If the distribution and/or use of the Program is restricted in
certain countries either by patents or by copyrighted interfaces, the
may add an explicit geographical distribution limitation excluding
those countries, so that distribution is permitted only in or among
countries not thus excluded.  In such case, this License incorporates
the limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised and/or new versions
of the General Public License from time to time.  Such new versions will
be similar in spirit to the present version, but may differ in detail to

Each version is given a distinguishing version number.  If the Program
specifies a version number of this License which applies to it and "any
later version", you have the option of following the terms and conditions
either of that version or of any later version published by the Free
Software Foundation.  If the Program does not specify a version number of
Foundation.

10. If you wish to incorporate parts of the Program into other free
programs whose distribution conditions are different, write to the author
to ask for permission.  For software which is copyrighted by the Free
Software Foundation, write to the Free Software Foundation; we sometimes
make exceptions for this.  Our decision will be guided by the two goals
of preserving the free status of all derivatives of our free software and
of promoting the sharing and reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY
FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW.  EXCEPT WHEN
OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES
PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.  THE ENTIRE RISK AS
TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU.  SHOULD THE
PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING,
REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING
WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR
REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES,
INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED
TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY
YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER
PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest
possible use to the public, the best way to achieve this is to make it
free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program.  It is safest
to attach them to the start of each source file to most effectively
convey the exclusion of warranty; and each file should have at least
the "copyright" line and a pointer to where the full notice is found.

<one line to give the program's name and a brief idea of what it does.>
Copyright (C) <year>  <name of author>

This program is free software; you can redistribute it and/or modify
the Free Software Foundation; either version 2 of the License, or
(at your option) any later version.

This program is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
GNU General Public License for more details.

You should have received a copy of the GNU General Public License
along with this program; if not, write to the Free Software
Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Also add information on how to contact you by electronic and paper mail.

If the program is interactive, make it output a short notice like this
when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year  name of author
Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type show w'.
This is free software, and you are welcome to redistribute it
under certain conditions; type show c' for details.

The hypothetical commands show w' and show c' should show the appropriate
parts of the General Public License.  Of course, the commands you use may
be called something other than show w' and show c'; they could even be

You should also get your employer (if you work as a programmer) or your
school, if any, to sign a "copyright disclaimer" for the program, if
necessary.  Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program
Gnomovision' (which makes passes at compilers) written by James Hacker.

<signature of Ty Coon>, 1 April 1989
Ty Coon, President of Vice

Public License instead of this License.`
