PacketFormatGroupBox Class Reference

Base group box for configuring packet export and print formats. More...

#include <packet_format_group_box.h>

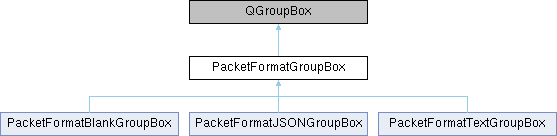

Inheritance diagram for PacketFormatGroupBox:

Signals
void	formatChanged ()
	Signal emitted when the format configuration changes.

Public Member Functions
	PacketFormatGroupBox (QWidget *parent=0)
	Constructs a PacketFormatGroupBox.
virtual bool	isValid () const
	Checks if the current format configuration is valid.
virtual void	updatePrintArgs (print_args_t &print_args)=0
	Updates the print arguments with the current format settings.

Detailed Description

Base group box for configuring packet export and print formats.

Constructor & Destructor Documentation

PacketFormatGroupBox()

PacketFormatGroupBox::PacketFormatGroupBox ( QWidget * parent = 0 )

explicit

Constructs a PacketFormatGroupBox.

Parameters

parent

The parent widget.

Member Function Documentation

isValid()

bool PacketFormatGroupBox::isValid ( ) const

virtual

Checks if the current format configuration is valid.

Returns

True if the configuration is valid, false otherwise.

Reimplemented in PacketFormatCArraysGroupBox, PacketFormatCSVGroupBox, PacketFormatJSONGroupBox, and PacketFormatTextGroupBox.

updatePrintArgs()

virtual void PacketFormatGroupBox::updatePrintArgs ( print_args_t & print_args )

pure virtual

Updates the print arguments with the current format settings.

Parameters

print_args

The print arguments structure to update.

Implemented in PacketFormatBlankGroupBox, PacketFormatCArraysGroupBox, PacketFormatCSVGroupBox, PacketFormatJSONGroupBox, and PacketFormatTextGroupBox.

---

The documentation for this class was generated from the following files:

• /builds/wireshark/wireshark/ui/qt/packet_format_group_box.h
• /builds/wireshark/wireshark/ui/qt/packet_format_group_box.cpp
