MainWindow Class Reference

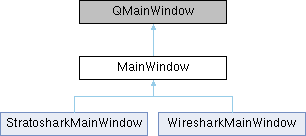

Inheritance diagram for MainWindow:

Public Slots
void	setDisplayFilter (QString filter, FilterAction::Action action, FilterAction::ActionType filterType)
virtual void	filterPackets (QString, bool)=0
virtual void	showPreferencesDialog (QString module_name)=0
virtual void	showIOGraphDialog (io_graph_item_unit_t, QString)=0
virtual void	showPlotDialog (const QString &, bool)=0
void	layoutPanes ()
void	applyRecentPaneGeometry ()
void	updateForUnsavedChanges ()

Signals
void	setCaptureFile (capture_file *cf)
void	captureActive (int)
void	fieldSelected (FieldInformation *)
void	fieldHighlight (FieldInformation *)
void	framesSelected (QList< int >)
void	filterAction (QString filter, FilterAction::Action action, FilterAction::ActionType type)
void	displayFilterSuccess (bool success)

Public Member Functions
	MainWindow (QWidget *parent=nullptr)
void	setMainWindowTitle (QString title=QString())
bool	hasSelection ()
bool	hasUniqueSelection ()
QList< int >	selectedRows (bool useFrameNum=false)
void	insertColumn (QString name, QString abbrev, int pos=-1)
void	gotoFrame (int packet_num)
frame_data *	frameDataForRow (int) const
QString	getFilter ()
MainStatusBar *	statusBar ()
void	appendPacketMenu (FunnelAction *funnel_action)
QList< QAction * >	getPacketMenuActions ()
void	clearAddedPacketMenus ()
bool	addPacketMenus (QMenu *ctx_menu, GPtrArray *finfo_array)

Protected Types
enum	CopySelected {   CopyAllVisibleItems , CopyAllVisibleSelectedTreeItems , CopySelectedDescription , CopySelectedFieldName ,   CopySelectedValue , CopyListAsText , CopyListAsCSV , CopyListAsYAML ,   CopyListAsHTML }

Protected Slots
void	addDisplayFilterTranslationActions (QMenu *copy_menu)
void	updateDisplayFilterTranslationActions (const QString &df_text)
void	updateTitlebar ()

Protected Member Functions
void	showWelcome ()
void	showCapture ()
void	setTitlebarForCaptureInProgress ()
void	setIconForCaptureInProgress (bool capture_in_progress)
virtual void	setMenusForCaptureFile (bool force_disable=false)=0
QWidget *	getLayoutWidget (layout_pane_content_e type)
void	populateRecentCapturesMenu ()
void	retranslateUiElements ()
	Handle retranslation of UI elements in MainWindow.
virtual void	openRecentCaptureFile (const QString &filename)=0

Protected Attributes
CaptureFile	capture_file_
QList< register_stat_group_t >	menu_groups_
QStackedWidget *	main_stack_
WelcomePage *	welcome_page_
QSplitter	master_split_
QSplitter	extra_split_
QWidget	empty_pane_
QVector< unsigned >	cur_layout_
PacketList *	packet_list_
ProtoTree *	proto_tree_
DataSourceTab *	data_source_tab_
PacketDiagram *	packet_diagram_
DisplayFilterCombo *	df_combo_box_
MainStatusBar *	main_status_bar_
ProfileSwitcher *	profile_switcher_
bool	use_capturing_title_
QMap< QString, QTextCodec * >	text_codec_map_
QMenu *	recent_captures_menu_
QAction *	no_recent_files_action_

Member Function Documentation

openRecentCaptureFile()

virtual void MainWindow::openRecentCaptureFile ( const QString &  filename )

protectedpure virtual

Open a capture file from the recent files menu.

Parameters

filename

Path to the file to open.

Implemented in WiresharkMainWindow, and StratosharkMainWindow.

populateRecentCapturesMenu()

void MainWindow::populateRecentCapturesMenu ( )

protected

Populate the recent captures menu. Calls openRecentCaptureFile() for each menu item action.

Populate the recent captures menu with files from WorkspaceState. Calls openRecentCaptureFile() (pure virtual) when user selects a file.

retranslateUiElements()

void MainWindow::retranslateUiElements ( )

protected

Handle retranslation of UI elements in MainWindow.

This function is called when the application language changes and usually handles elements like menu items and labels that need to be updated to reflect the new language.

---

The documentation for this class was generated from the following files:

• /builds/wireshark/wireshark/ui/qt/main_window.h
• /builds/wireshark/wireshark/ui/qt/main_window.cpp
• /builds/wireshark/wireshark/ui/qt/main_window_layout.cpp
