DataModel for tap user data. More...

#include <atap_data_model.h>

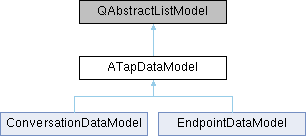

Inheritance diagram for ATapDataModel:

Public Types
enum	{ DISPLAY_FILTER = Qt::UserRole , UNFORMATTED_DISPLAYDATA , TIMELINE_DATA , ENDPOINT_DATATYPE , PROTO_ID , CONVERSATION_ID , ROW_IS_FILTERED , DATA_ADDRESS_TYPE , DATA_IPV4_INTEGER , DATA_IPV6_LIST }
	Qt model data roles for endpoint and conversation table items. More...
enum	dataModelType { DATAMODEL_ENDPOINT , DATAMODEL_CONVERSATION , DATAMODEL_UNKNOWN }
	Identifies which statistical data model is active in the endpoint/conversation dialog. More...

Signals
void	tapListenerChanged (bool enable)
	Signal emitted when the tap listener state changes.

Public Member Functions
	ATapDataModel (dataModelType type, int protoId, QString filter, QObject *parent=nullptr)
	Construct a new ATapDataModel object.
virtual	~ATapDataModel ()
	Destructor.
int	rowCount (const QModelIndex &parent=QModelIndex()) const override
	Number of rows under the given parent in this model, which is the total number of rows for the empty QModelIndex, and 0 for any valid parent index (as no row has children; this is a flat table.).
virtual int	columnCount (const QModelIndex &parent=QModelIndex()) const override=0
	Return the number of columns in the model.
virtual QVariant	headerData (int section, Qt::Orientation orientation=Qt::Horizontal, int role=Qt::DisplayRole) const override=0
	Return the header data for the specified section and orientation.
virtual QVariant	data (const QModelIndex &idx, int role=Qt::DisplayRole) const override=0
	Return the data for the specified index and role.
QString	tap () const
	Returns the name for the tap being used.
int	protoId () const
	The protocol id for the tap.
void	setFilter (QString filter)
	Set the filter string.
QString	filter () const
	Return a filter set for the model.
bool	resolveNames () const
	Is the model set to resolve names in address and ports columns.
virtual void	setResolveNames (bool resolve)=0
	Enable or disable if names should be resolved.
bool	allowsNameResolution () const
	Does the model allow names to be resolved.
virtual void	useAbsoluteTime (bool absolute)=0
	Use absolute time for any column supporting it.
virtual void	useNanosecondTimestamps (bool nanoseconds)=0
	Use nanosecond timestamps if requested.
void	setMachineReadable (bool machineReadable)
	Sets whether the data should be presented in a machine-readable format.
void	limitToDisplayFilter (bool limit)
	Limits the data model to the currently active display filter.
bool	portsAreHidden () const
	Are ports hidden for this model.
bool	isFilterApplied () const
	Checks if a display filter has to be applied.
bool	enableTap ()
	Enable tapping in this model.
void	disableTap ()
	Disable the tapping for this model.
dataModelType	modelType () const
	Return the model type.
conv_hash_t *	hash ()
	Return the conversation hash table for this model.
void	updateFlags (unsigned flag)
	Update the flags.

Public Attributes
conv_hash_t	hash_

Protected Member Functions
virtual tap_packet_cb	conversationPacketHandler ()
	Retrieves the callback function used to handle conversation packets.
void	resetData ()
	Resets the internal model data.
void	updateData (GArray *data)
	Updates the model with new data.
register_ct_t *	registerTable () const
	Gets the conversation registration table for this tap.

Static Protected Member Functions
static void	tapReset (void *tapdata)
	Callback to reset the tap data.
static void	tapDraw (void *tap_data)
	Callback to draw or update the tap data.

Protected Attributes
dataModelType	_type
GArray *	storage_
QString	_filter
bool	_absoluteTime
bool	_nanoseconds
bool	_resolveNames
bool	_machineReadable
bool	_disableTap
double	_minRelStartTime
double	_maxRelStopTime
unsigned	_tapFlags

Detailed Description

DataModel for tap user data.

This datamodel provides the management for all tap data for the conversation and endpoint dialogs. It predominantly is implemented to work with conversation tap data. The management of displaying and correctly presenting the information is done in the corresponding type classes

See also: EndpointDataModel; ConversationDataModel

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Qt model data roles for endpoint and conversation table items.

Enumerator
DISPLAY_FILTER	Display filter string constructed from this row's address/port data
UNFORMATTED_DISPLAYDATA	Raw, unformatted cell value used for sorting and clipboard export
TIMELINE_DATA	Timing data used to render the traffic timeline bar in the row
ENDPOINT_DATATYPE	Endpoint address type tag (e.g. IPv4, IPv6, Ethernet)
PROTO_ID	Protocol ID (proto_id) associated with this endpoint or conversation
CONVERSATION_ID	Unique conversation identifier for this row
ROW_IS_FILTERED	True if this row is currently hidden by the active display filter
DATA_ADDRESS_TYPE	Address type enum value (address_type) for the primary address
DATA_IPV4_INTEGER	IPv4 address as a packed 32-bit integer, used for numeric sorting
DATA_IPV6_LIST	IPv6 address as a byte list, used for numeric sorting

◆ dataModelType

enum ATapDataModel::dataModelType

Identifies which statistical data model is active in the endpoint/conversation dialog.

Enumerator
DATAMODEL_ENDPOINT	Model is displaying per-endpoint traffic statistics
DATAMODEL_CONVERSATION	Model is displaying per-conversation traffic statistics
DATAMODEL_UNKNOWN	Model type has not been initialised or is unrecognised

Constructor & Destructor Documentation

◆ ATapDataModel()

ATapDataModel::ATapDataModel	(	dataModelType	type,
		int	protoId,
		QString	filter,
		QObject *	parent = nullptr )

explicit

Construct a new ATapDataModel object.

The tap will not be created automatically, but must be enabled by calling enableTap

Parameters

type	an element of dataModelType. Either DATAMODEL_ENDPOINT or DATAMODEL_CONVERSATION are supported at this time
protoId	the protocol id for which the tap is created
filter	a potential filter to be used for the tap
parent	the parent for the class

See also: enableTap

Member Function Documentation

◆ allowsNameResolution()

bool ATapDataModel::allowsNameResolution ( ) const

Does the model allow names to be resolved.

Returns: true yes, names may be resolved (set via setResolveNames); false no, they won't be resolved

See also: setResolveNames; resolveNames

◆ columnCount()

virtual int ATapDataModel::columnCount ( const QModelIndex & parent = QModelIndex() ) const

overridepure virtual

Return the number of columns in the model.

Parameters

parent index of parent, QModelIndex() for the root

Returns: int the number of columns under the parent

Implemented in ConversationDataModel, and EndpointDataModel.

◆ conversationPacketHandler()

tap_packet_cb ATapDataModel::conversationPacketHandler ( )

protectedvirtual

Retrieves the callback function used to handle conversation packets.

Returns: The tap packet callback function.

◆ data()

virtual QVariant ATapDataModel::data	(	const QModelIndex &	idx,
		int	role = Qt::DisplayRole ) const

overridepure virtual

Return the data for the specified index and role.

Parameters

idx	The model index.
role	The data role.

Returns: QVariant The data for the specified index and role.

Implemented in ConversationDataModel, and EndpointDataModel.

◆ enableTap()

bool ATapDataModel::enableTap ( )

Enable tapping in this model.

This will register the tap listener with the corresponding packet function.

Note: if the tap has not been disabled, this method will do nothing

Returns: true the tap has been enabled; false the tap has not been enabled

◆ filter()

QString ATapDataModel::filter ( ) const

Return a filter set for the model.

Returns: QString the filter string for the model

◆ hash()

conv_hash_t * ATapDataModel::hash ( )

Return the conversation hash table for this model.

Returns: conv_hash_t * pointer to the hash table

◆ headerData()

virtual QVariant ATapDataModel::headerData	(	int	section,
		Qt::Orientation	orientation = Qt::Horizontal,
		int	role = Qt::DisplayRole ) const

overridepure virtual

Return the header data for the specified section and orientation.

Parameters

section	The column or row index.
orientation	The orientation of the header.
role	The data role.

Returns: QVariant The header data.

Implemented in ConversationDataModel, and EndpointDataModel.

◆ isFilterApplied()

bool ATapDataModel::isFilterApplied ( ) const

Checks if a display filter has to be applied.

Controls which columns to display, and in some cases their content

Returns: true a display filter has to be applied; false no display filter has to be applied

◆ limitToDisplayFilter()

void ATapDataModel::limitToDisplayFilter ( bool limit )

Limits the data model to the currently active display filter.

Parameters

limit True to apply the display filter limit, false otherwise.

◆ modelType()

ATapDataModel::dataModelType ATapDataModel::modelType ( ) const

Return the model type.

Returns: dataModelType

◆ portsAreHidden()

bool ATapDataModel::portsAreHidden ( ) const

Are ports hidden for this model.

Returns: true the ports are hidden; false the ports are not hidden

◆ protoId()

int ATapDataModel::protoId ( ) const

The protocol id for the tap.

Returns: int the id given in the constructor

◆ registerTable()

register_ct_t * ATapDataModel::registerTable ( ) const

protected

Gets the conversation registration table for this tap.

Returns: Pointer to the register_ct_t table.

◆ resolveNames()

bool ATapDataModel::resolveNames ( ) const

Is the model set to resolve names in address and ports columns.

Returns: true yes, names will be resolved; false no they won't

◆ rowCount()

int ATapDataModel::rowCount ( const QModelIndex & parent = QModelIndex() ) const

override

Number of rows under the given parent in this model, which is the total number of rows for the empty QModelIndex, and 0 for any valid parent index (as no row has children; this is a flat table.).

Parameters

parent index of parent, QModelIndex() for the root

Returns: int the number of rows under the parent

◆ setFilter()

void ATapDataModel::setFilter ( QString filter )

Set the filter string.

A set filter can be reset by providing an empty string

Parameters

filter the filter for the tap

◆ setMachineReadable()

void ATapDataModel::setMachineReadable ( bool machineReadable )

Sets whether the data should be presented in a machine-readable format.

Parameters

machineReadable True to enable machine-readable format, false otherwise.

◆ setResolveNames()

virtual void ATapDataModel::setResolveNames ( bool resolve )

pure virtual

Enable or disable if names should be resolved.

Parameters

resolve true if names should be resolved

Implemented in ConversationDataModel, and EndpointDataModel.

◆ tap()

QString ATapDataModel::tap ( ) const

Returns the name for the tap being used.

Returns: QString the tap name, normally identical with the protocol name

◆ tapDraw()

void ATapDataModel::tapDraw ( void * tap_data )

staticprotected

Callback to draw or update the tap data.

Parameters

tap_data Pointer to the tap data to draw.

◆ tapListenerChanged

void ATapDataModel::tapListenerChanged ( bool enable )

signal

Signal emitted when the tap listener state changes.

Parameters

enable True to enable the listener, false to disable.

◆ tapReset()

void ATapDataModel::tapReset ( void * tapdata )

staticprotected

Callback to reset the tap data.

Parameters

tapdata Pointer to the tap data to reset.

◆ updateData()

void ATapDataModel::updateData ( GArray * data )

protected

Updates the model with new data.

Parameters

data	Pointer to a GArray containing the new data.

◆ useAbsoluteTime()

virtual void ATapDataModel::useAbsoluteTime ( bool absolute )

pure virtual

Use absolute time for any column supporting it.

Parameters

absolute true to use absolute time values

Implemented in ConversationDataModel, and EndpointDataModel.

◆ useNanosecondTimestamps()

virtual void ATapDataModel::useNanosecondTimestamps ( bool nanoseconds )

pure virtual

Use nanosecond timestamps if requested.

Otherwise, microsecond time resolution will be displayed

Parameters

nanoseconds use nanosecond timestamps if required and requested

Implemented in ConversationDataModel, and EndpointDataModel.

Member Data Documentation

◆ _absoluteTime

bool ATapDataModel::_absoluteTime

protected

Flag indicating whether to use absolute time formats.

◆ _disableTap

bool ATapDataModel::_disableTap

protected

Flag indicating whether the underlying tap is disabled.

◆ _filter

QString ATapDataModel::_filter

protected

The display filter applied to the tap.

◆ _machineReadable

bool ATapDataModel::_machineReadable

protected

Flag indicating whether data is formatted for machine readability.

◆ _maxRelStopTime

double ATapDataModel::_maxRelStopTime

protected

The maximum relative stop time of the processed packets.

◆ _minRelStartTime

double ATapDataModel::_minRelStartTime

protected

The minimum relative start time of the processed packets.

◆ _nanoseconds

bool ATapDataModel::_nanoseconds

protected

Flag indicating whether to use nanosecond precision.

◆ _resolveNames

bool ATapDataModel::_resolveNames

protected

Flag indicating whether name resolution is enabled.

◆ _tapFlags

unsigned ATapDataModel::_tapFlags

protected

Bitmask of flags configuring the tap behavior.

◆ _type

dataModelType ATapDataModel::_type

protected

The specific type of the data model.

◆ hash_

conv_hash_t ATapDataModel::hash_

Hash table mapping address/port tuples to their conversation or endpoint entries

◆ storage_

GArray* ATapDataModel::storage_

protected

Internal storage for the tap data records.

The documentation for this class was generated from the following files:

/builds/wireshark/wireshark/ui/qt/models/atap_data_model.h
/builds/wireshark/wireshark/ui/qt/models/atap_data_model.cpp

Public Types

Signals

Public Member Functions

Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

◆ dataModelType

Constructor & Destructor Documentation

◆ ATapDataModel()

Member Function Documentation

◆ allowsNameResolution()

◆ columnCount()

◆ conversationPacketHandler()

◆ data()

◆ enableTap()

◆ filter()

◆ hash()

◆ headerData()

◆ isFilterApplied()

◆ limitToDisplayFilter()

◆ modelType()

◆ portsAreHidden()

◆ protoId()

◆ registerTable()

◆ resolveNames()

◆ rowCount()

◆ setFilter()

◆ setMachineReadable()

◆ setResolveNames()

◆ tap()

◆ tapDraw()

◆ tapListenerChanged

◆ tapReset()

◆ updateData()

◆ useAbsoluteTime()

◆ useNanosecondTimestamps()

Member Data Documentation

◆ _absoluteTime

◆ _disableTap

◆ _filter

◆ _machineReadable

◆ _maxRelStopTime

◆ _minRelStartTime

◆ _nanoseconds

◆ _resolveNames

◆ _tapFlags

◆ _type

◆ hash_

◆ storage_
